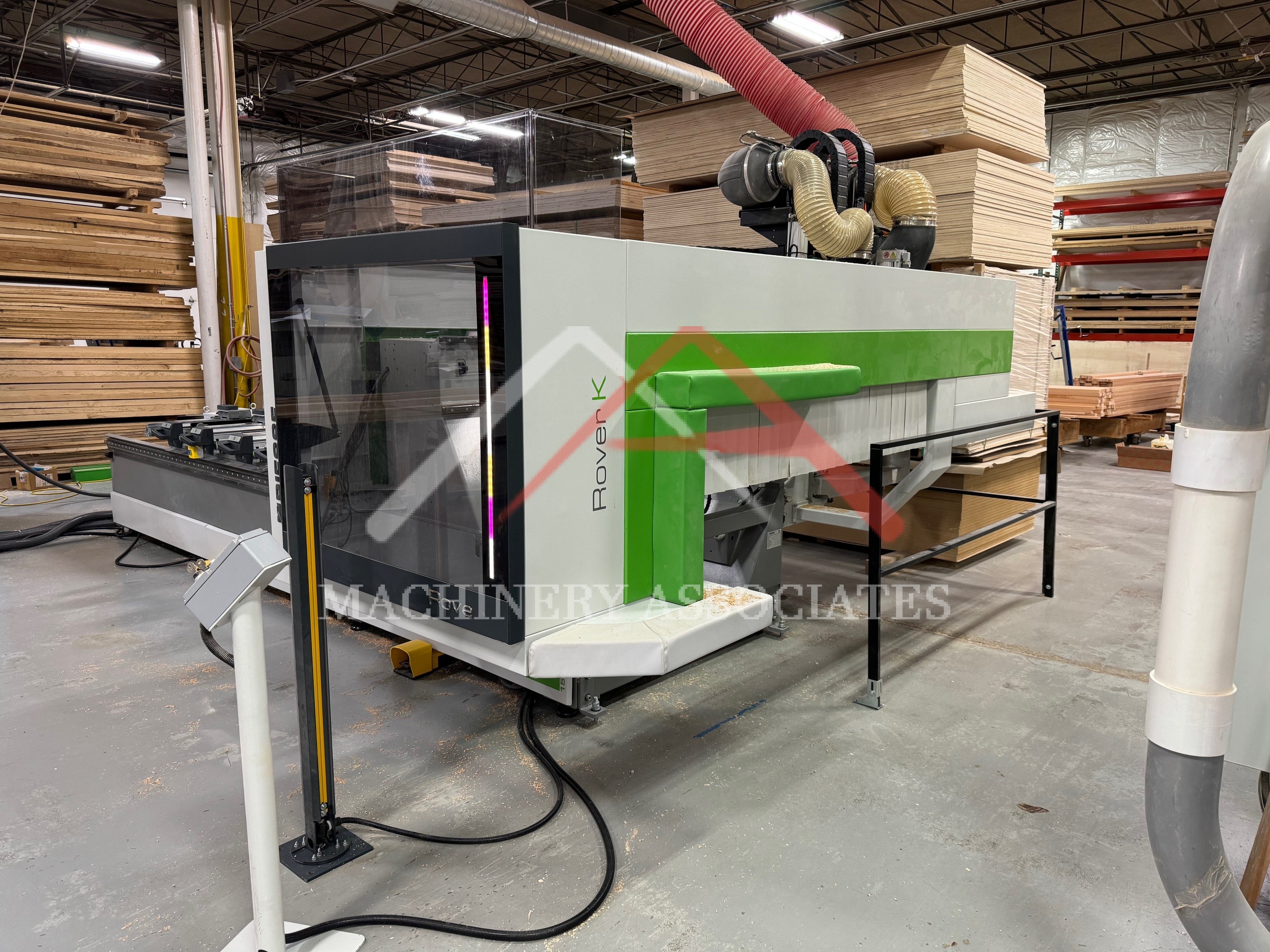

Biesse Rover K Pod/Rail CNC Router
Rover K pod and rail unit. Nice machine
| MA ID: | PTP - 14241 |
| Price: | $48,900.00 |
| Category: |
Point to PointCNC Router (3-axis) |
| Manufacturer: | Biesse |
| Model: | Rover K |
| Year of Manufacture: | 2017 |
| Condition: | Very Good |
| Electric: | multi Voltage 60 Cycle 3 Phase |
|
2017 Rover K CNC Machine Center
CALL FOR AVAILABILITY Specifications: Spindle; 13.2 kW (17.7 HP) Electrospindle with HSK tool holders 16 positions Tool changer Boring Head; 16 Spindle, with Grooving saw (10 vertical; 6 in X and 5 in Y (one shared)) (6 horizontal; 4 opposing in X and 2 opposing in Y ) (Grooving Saw (120mm max) is in X only) Working fields (max) ; "X" - 126" (3,200 mm), "Y" - 61.4" (1,560 mm), Positioning speeds (rapids) ; "X" Axis 3348" per minute, "Y" Axis 2352" per minute, "Z" axis 780" per minute Work Table; 6- aluminum panel supports. The supports slide on hardened and ground linear guides by means of ball runners. The locking takes place on both the front and the back linear guide, by means of 2 pneumatic cylinders, and is controlled through a push-button placed in front of the panel support Software; Biesseworks. |
|
| Shipping Footprint: | 18 (length) x 8 (width) x 8 (height) |
| Weight: | 5500 lbs |
Please confirm all data before committing to a purchase.
*Subject to credit approval. Additional programs available.
