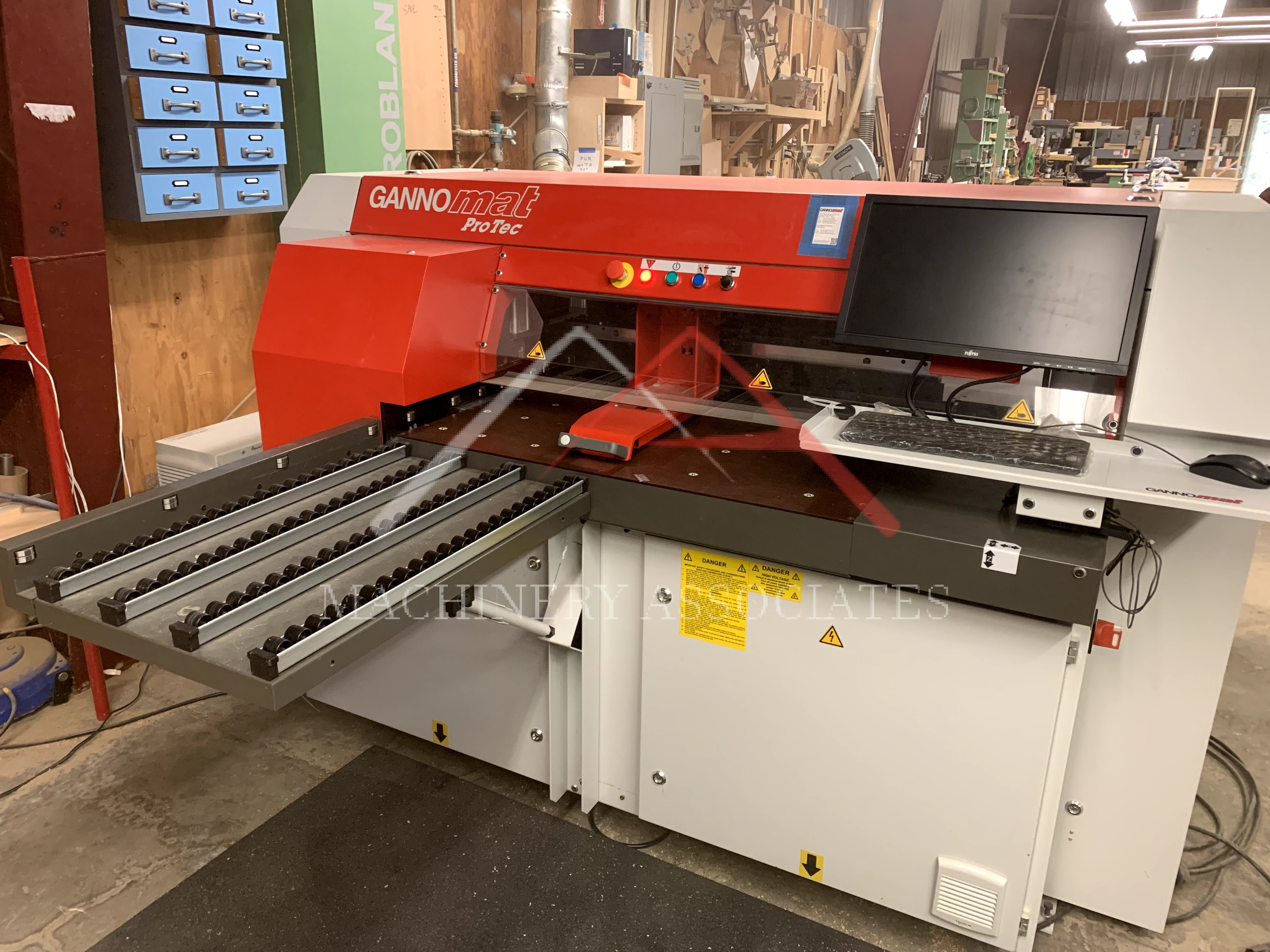

2016 Gannomat ProTec Feed Thru Point to Point
This 2016 Gannomat is a small foot print Point to Point. Machine features drilling Horizontal and Vertical along with part sizing!
| MA ID: | PTP - 12739 |
| Price: | $65,950.00 |
| Category: |
Point to PointBoring - Feed Through |
| Manufacturer: | Gannomat |
| Model: | ProTec 571A |
| Year of Manufacture: | 2016 |
| Condition: | Very Good |
| Electric: | 240/480 Voltage 60 Cycle 3 Phase |
|
2016 Gannomat ProTec Feed Thru Point to Point
Machine Description: 6HP Main Spindle with ER32 Collet up to 20mm Tool Diameter Motor – drilling and grooving drive 1.5 kW Speed – drilling spindle 3710 RPM - 60 Hz Speed – grooving spindle 4770 RPM - 60 Hz Milling spindle speed Profit (option) 4000 – 18,000 RPM Speed – drilling unit Z-axis Max. 15 m/min Sound pressure level according to EN Suction diameter 3 x 80 mm diameter Required suction air volume 3000 m³/h Compressed air consumption 300 l/min Compressed air connection 6-8 bar / 85-112 psi |
|
| Shipping Footprint: | 6 (length) x 8 (width) x 6 (height) |
| Weight: | 3500 lbs |
