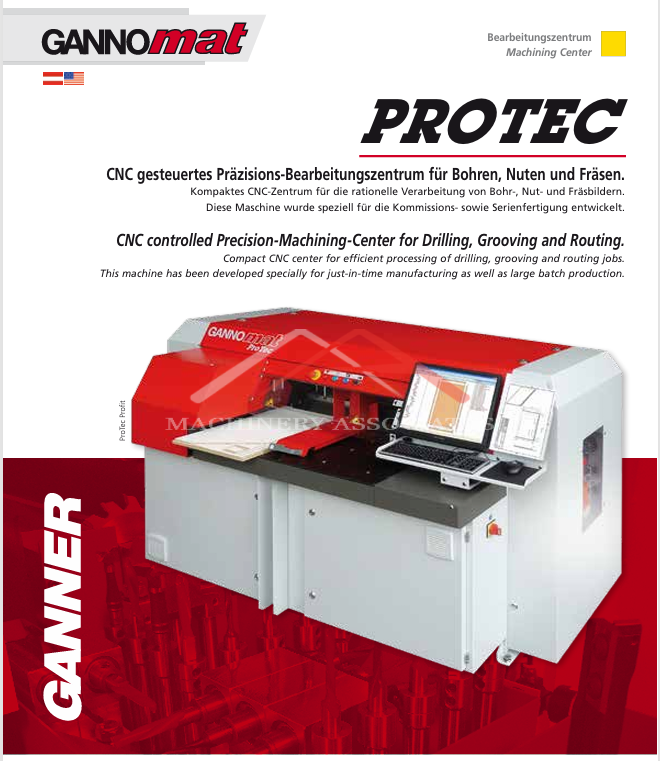

NEW 2023 GANNOMAT PROTEC CNC CENTER
NEW 2023 OVERSTOCK MACHINE
MA ID: | BF - 14266 |
Price: | Call For Price |
Category: |
Boring - Feed Through |
Manufacturer: | Gannomat |
Model: | PROTEC CNC CENTER |
Year of Manufacture: | 2023 |
Condition: | New |
Electric: | 400 Voltage 60 Cycle 3 Phase |
Working unit MultiUnit with PowerBlock with 23 spindles, grooving saw and optional routing unit Profit. ProTec CNC Center with: PowerBlock with 21 spindles and 1 grooving saw 13 vertical drilling spindles 6 horizontal drilling spindles in Y 2 horizontal drilling spindles in X 1 grooving unit in Y 4th drilling axis in Y Automatic (3 position) HSK 63F Tool Changer Included Option: Additional safety device with lamellar curtain for processing Lamello P-System Requirement for horizontal routing for Lamello P-System with grooving saw. Workpiece dimension and weight Workpiece width (X): min. 60 mm / max. 1000 mm (min. 2.36 inches / max.39.37 inches) Workpiece height (Z): min. 6 mm / max. 60 mm (min. 0.236 inches / max. 2.362 inches) Workpiece length (Y): min. 250 mm (9.842 inches) at the throughfeed mode max. 5600 mm programable workpiece length. Roller Tables Multitap Transformer. Various tooling included
|
|
Shipping Footprint: | 90" (length) x 63" (width) x 63" (height) |
Weight: | 3528 lbs |
Please confirm all data before committing to a purchase.
*Subject to credit approval. Additional programs available.
