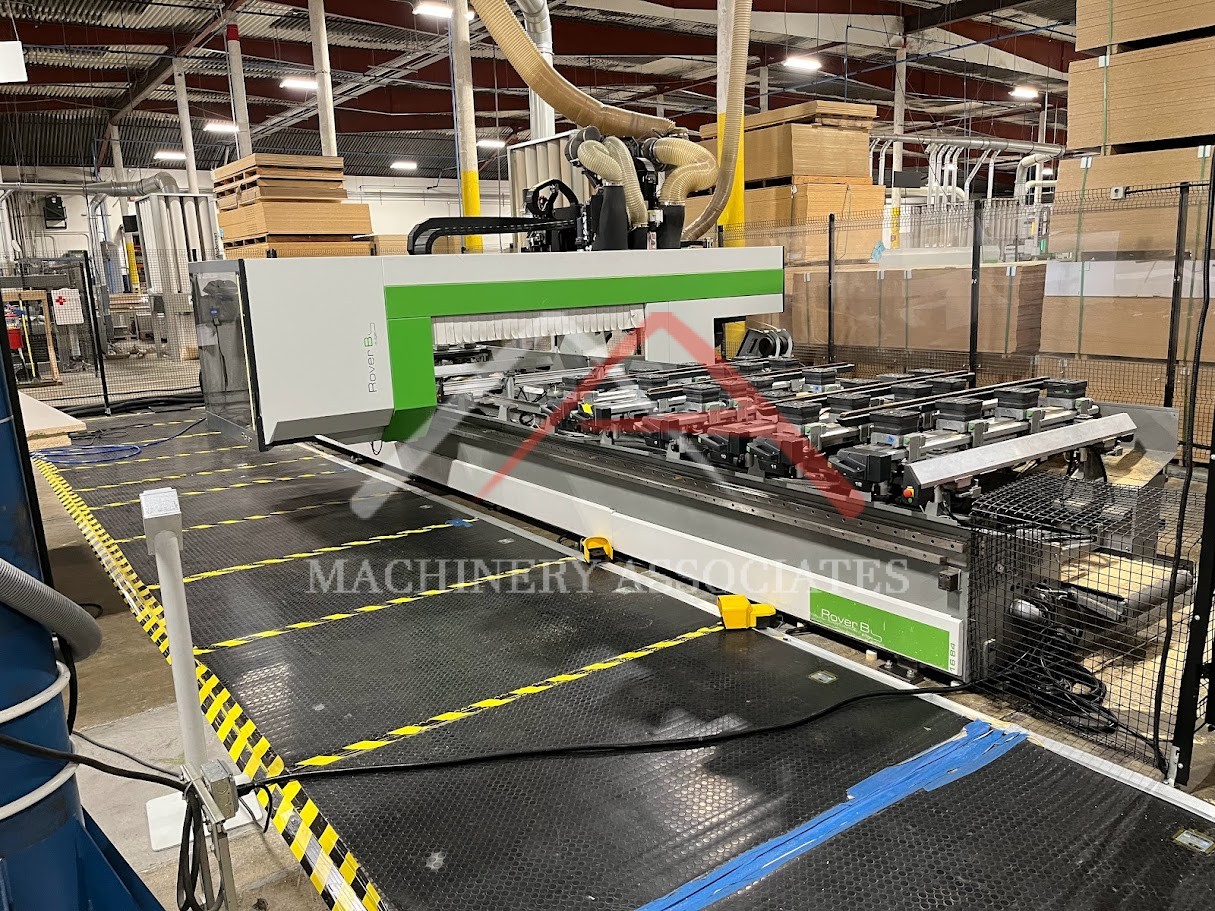

Biesse Rover B Edge 1684

Great machine to process parts and edgeband. Full CNC Edgebanding without moving the part!

MA ID: PTP - 14059
Price: $385,000.00

Point to Point

Edgebanders - Contour

Manufacturer: Biesse
Model: Rover B Edge 1684
Year of Manufacture: 2017
Condition: Very Good
Electric: Multi Voltage 60 Cycle 3 Phase
Biesse Rover B Edge 1684

Machine Description:

Working Fields:

Routing 8415mm by 1650mm

Banding 7460mm by 1650mm

ATS Support System:

(12) Supports Using EPS (Electronic Positioning System

(10) Lifting Bars For Part Removal

Pod Positioning Uses Same EPS System Eliminating Operator Error

Main Spindle:

17.7 Hp HSK63F Main Spindle 24000 RPM Max

6 Position NC Controlled Dust Shroud

4 way Air Blast


6 Position Automatic Toolchanger Mounted on Gantry

16 Position Automatic Toolchanger Mounted in X

BH-17L Boring Block:

(10) Vertical 5 by 5

(2) Dual sided Horizontal in X and (1) in Y

(1) Saw Blade in X

Dual Z Axis Ball Screw

Edgebanding unit GU60C:

Glue Roller and Pot are1 Assembly

Double Pressure Roller System w/ Variable Center Distance in 2 Positions

Center Distance is NC Controlled MIN Inside Radius of 150mm

Detection Probe for CLosed Ring Geometry

Automatic Banding Loading from Coils (2) Coil Storage

3mm Plastic banding and up to 2mm Solid Wood

65mm Max Baning Width

EF60A End Trim, Glue Scrap, and Edge Scraping Unit with (3) Copy Units

Blower For Edge Heating

PC Based Control BH660 with WRT Software

BEdge Software

BSolid Software

(2) Vacuum Pumps

Cetralized Lubrication System

Air Conditioned Control Cabinet

Multitap Transformer

Chip Conveyor
