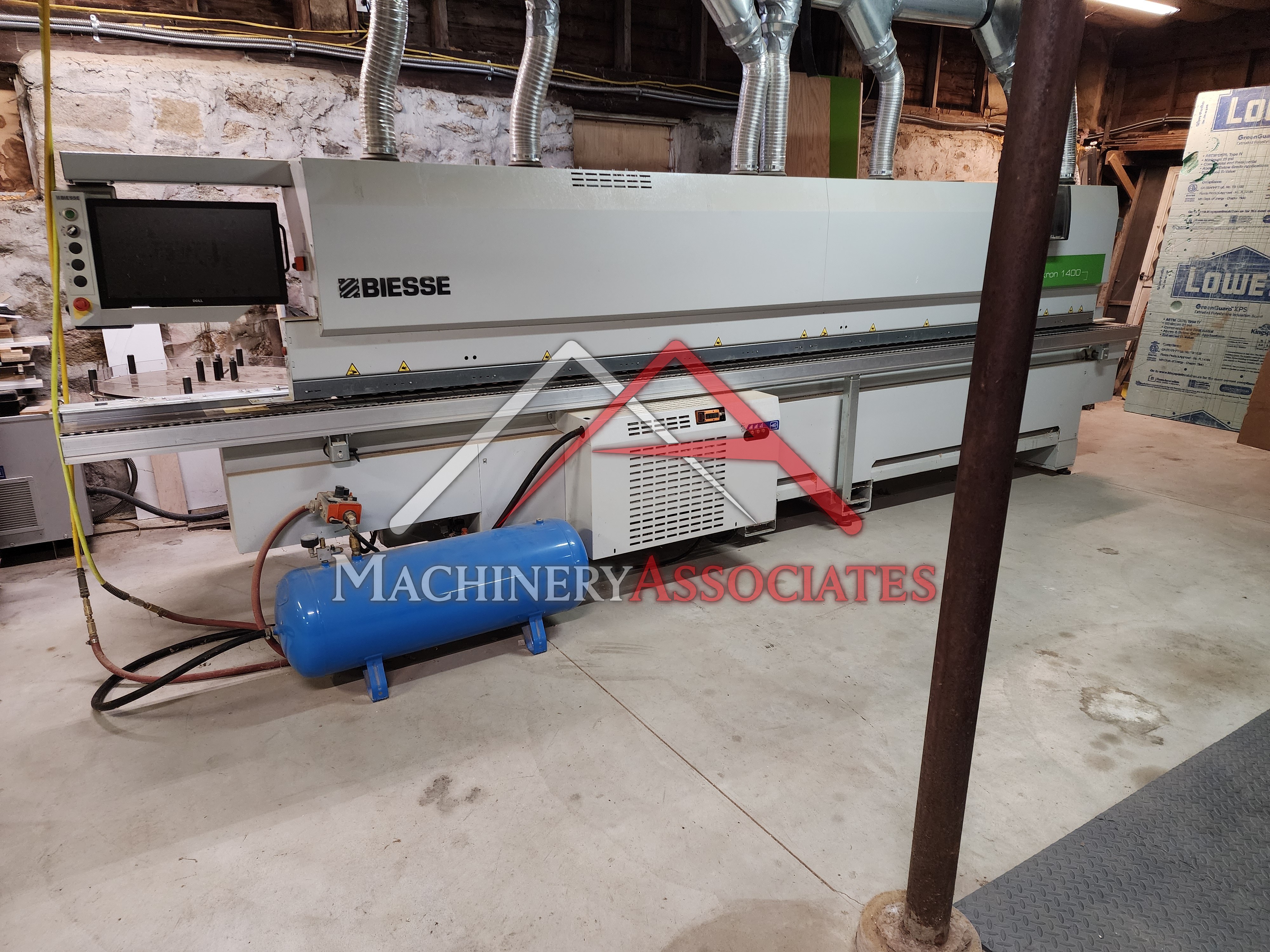

Biesse Akron 1440 Edgebander with Airforce System

Machine Features:

Smart Touch 21.5" HD-Color Touch Screen Control

Windows Operating System

Multi-Speeds 15-18 m/min

Infeed Fence and Pressure Rollers (Servo Controlled)

Anti-Adhesive Station

Infrared Heating System

Top & Bottom Pre-Milling Unit with Diamond Cutters

Pre-Melt Glue Unit for EVA Glue System

"Airforce System" for "Zero" Glue Line

Front & Rear IN-801 End Trimming Unit with Tilt

Top & Bottom Fine Trimming Unit (Servo Controlled)

Pro-Nest Feature on Fine Trimming Unit

2 Motor Corner Rounding Unit (Servo Controlled)

Top & Bottom Profile Scraping Unit (Servo Controlled)

Pre-Nest Feature on Profile Scraping Unit

Top & Bottom Edge Scraping Unit

Top & Bottom Buffing Unit

Top & Bottom Hot Air Blowing Units

Multi-Tab Transformer for North American Voltages

Specifications:

Min. Panel Height: 10 mm

Max. Panel Height: 60 mm

Height of Edgebanding Material: 14 - 64 mm

Thickness of Edgebanding Material 0.4 - 3 mm

Thickness of Edgebanding in strips: 0.4 - 12 mm

Min. Panel Length: 140 mm

Min. panel width (with length 140): 85 mm.

Min. panel width (with length 250 mm): 50 mm.
