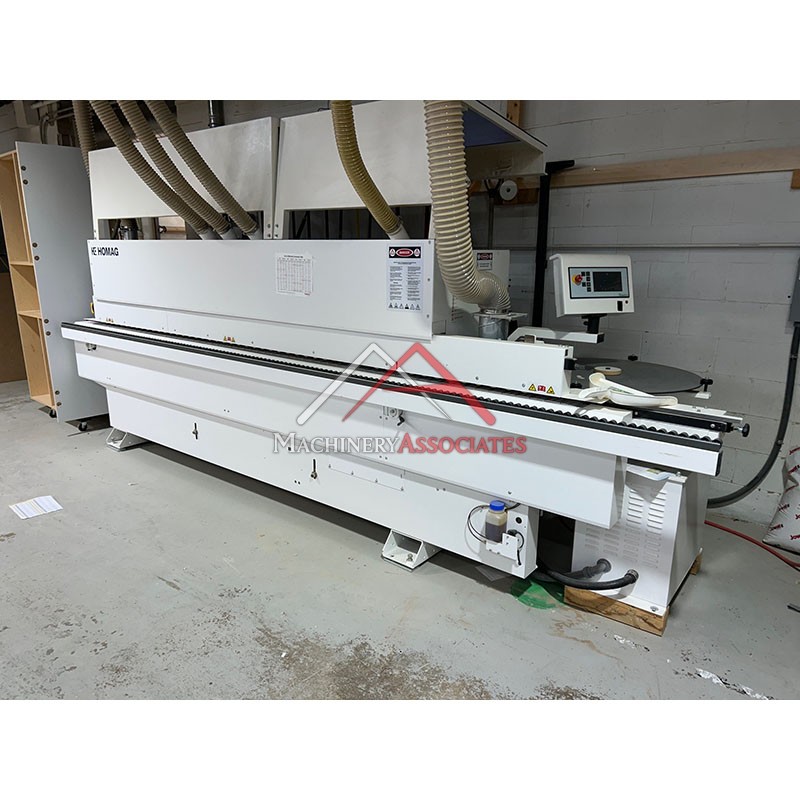

Homag S-240 Edgebander
Low hours and in great shape. The S-240 is Homags hot seller
| MA ID: | EBS - 14571 |
| Price: | $32,900.00 |
| Category: |
Edgebanders -Single Sided |
| Manufacturer: | Homag |
| Model: | Edgeteq S-240 KDF |
| Year of Manufacture: | 2018 |
| Condition: | Very Good |
| Electric: | multi Voltage 60 Cycle 3 Phase |
|
2018 Homag S-240 Edgebander
Specifications Solid Strip & Coil Stock; 0.3 - 3 mm (0.016 - 0.11") Workpiece width for 70 mm; 8 - 22 mm thickness Workpiece width for 120 mm; 23 - 50 mm thickness Standard Workpiece thickness: 8 - 50 mm / 1.96" max.) Fixed Feed of 11 MPM (36 FPM) Equipped with Premilling Station: (2) Motors @ 2.25 kW (3.0 HP) - 12.000 RPM, LH & RH rotation. Diamond cutterheads & pneumatic jump control for chip-free and clean panel edges. Integrated heated glue roller. Automatic Edge Magazine for Solid Strip & Coil Stock; up to 3 mm. Guillotine for Solid Strip & Coil Stock; up to 3 mm. Quick-Change glue pot & roller application unit. Pressure Section. 1st Roller driven plus: (2) Idle rollers; timed pneumatic pressure controlled. End Trimming: (2) Motors, each @ 0.35 kW (1/2 HP) 12,000 RPM. Top/Bottom Flush-Fine Trimming Unit: (2) Motors, each @ 0.55 kW (3/4 HP) - 12,000 RPM. Corner Rounding Unit. (1) Motor, 0.35 kW (1/2 HP) - 12,000 RPM. Top/Bottom Scraping, with vertical & horizontal copy wheels & PVC scrape collection box. Top/bottom Buffing Unit: (2) motors, each @ 0.10 kW (0.125 HP) - 2,800 RPM.
This machine is available 11/1/2026 It will go through our shop before delivery and will be cleaned and thoroughly insected. |
|
| Shipping Footprint: |
18 (length) x 4 (width) x
6 (height)
|
| Weight: | 4500 lbs |
Some photos may show tooling. Tooling is never included in the listing unless otherwise noted in the description.
Please confirm all data before committing to a purchase.
