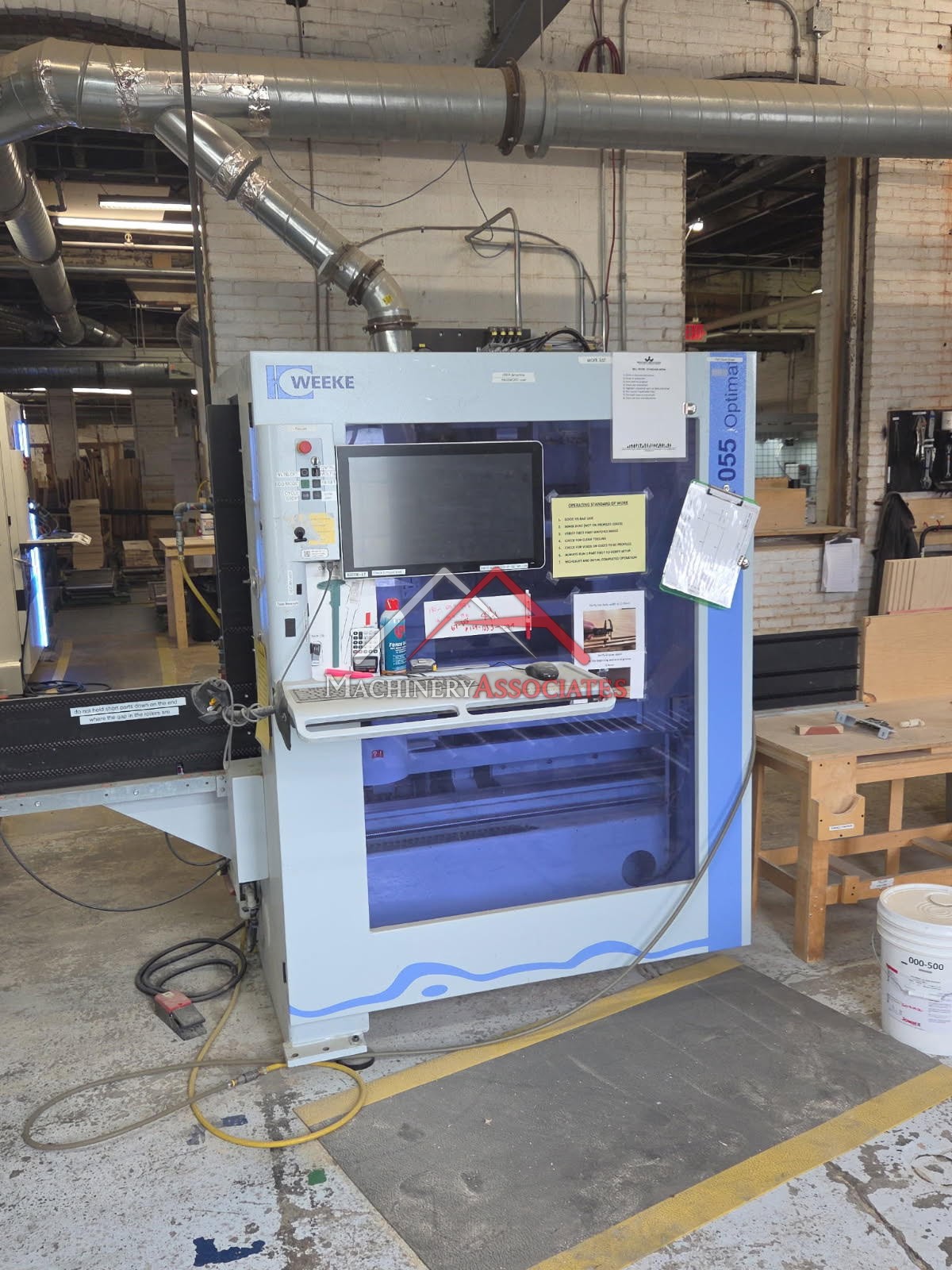

Weeke BHX-055 Vertical MAchining Center
Well maintained and ready to work.
| MA ID: | PTP - 14572 |
| Price: | Call for Price |
| Category: |
Point to PointBoring - Feed Through |
| Manufacturer: | Homag |
| Model: | Optimat BHX-055 |
| Year of Manufacture: | 2017 |
| Condition: | Very Good |
| Electric: | 480 Voltage 60 Cycle 3 Phase |
|
2018 Weeke BHX 055 Vertical Machining Center
Specifications Max. workable part size for "X" axis is 120" (3,050 mm); "Y" axis 33.4" (850 mm), max. part thickness 2.4" (60 mm). Min. worktable part size for "X" axis is 7.8" (200 mm); "Y" axis 2.7" (70 mm); min. part thickness of 0.47" (12 mm). Automatic infeed & outfeed from the LH or RH side. Positioning Speed Max 164 FPM (50 MPM) in "X" & "Y" axis & 50 FPM (15 MPM) in "Z" axis' Electrospindle; 5kw (7hp) 18,000 RPM w/HSK 4 position ATC Boring Unit: (1) (2.3 kW) 3hp Variable speed from 1,500 - 7,500 RPM motor; Equipped with 15 independent vertical spindles (10 Spindles in "X" axis ) + (5 in "Y" axis.) Also equipped with (6) Horizontal spindles with: 2+2 in "X" Axis & 1+1 in "Y" axis. Pneumatic part clamping devices This machine arrives at our shop on 11/6/26. It will go through the shop where it will be thoroughly cleaned and inspected. More pictures to come |
|
| Shipping Footprint: |
10 (length) x 7 (width) x
8 (height)
|
| Weight: | 4500 lbs |
Some photos may show tooling. Tooling is never included in the listing unless otherwise noted in the description.
Please confirm all data before committing to a purchase.
