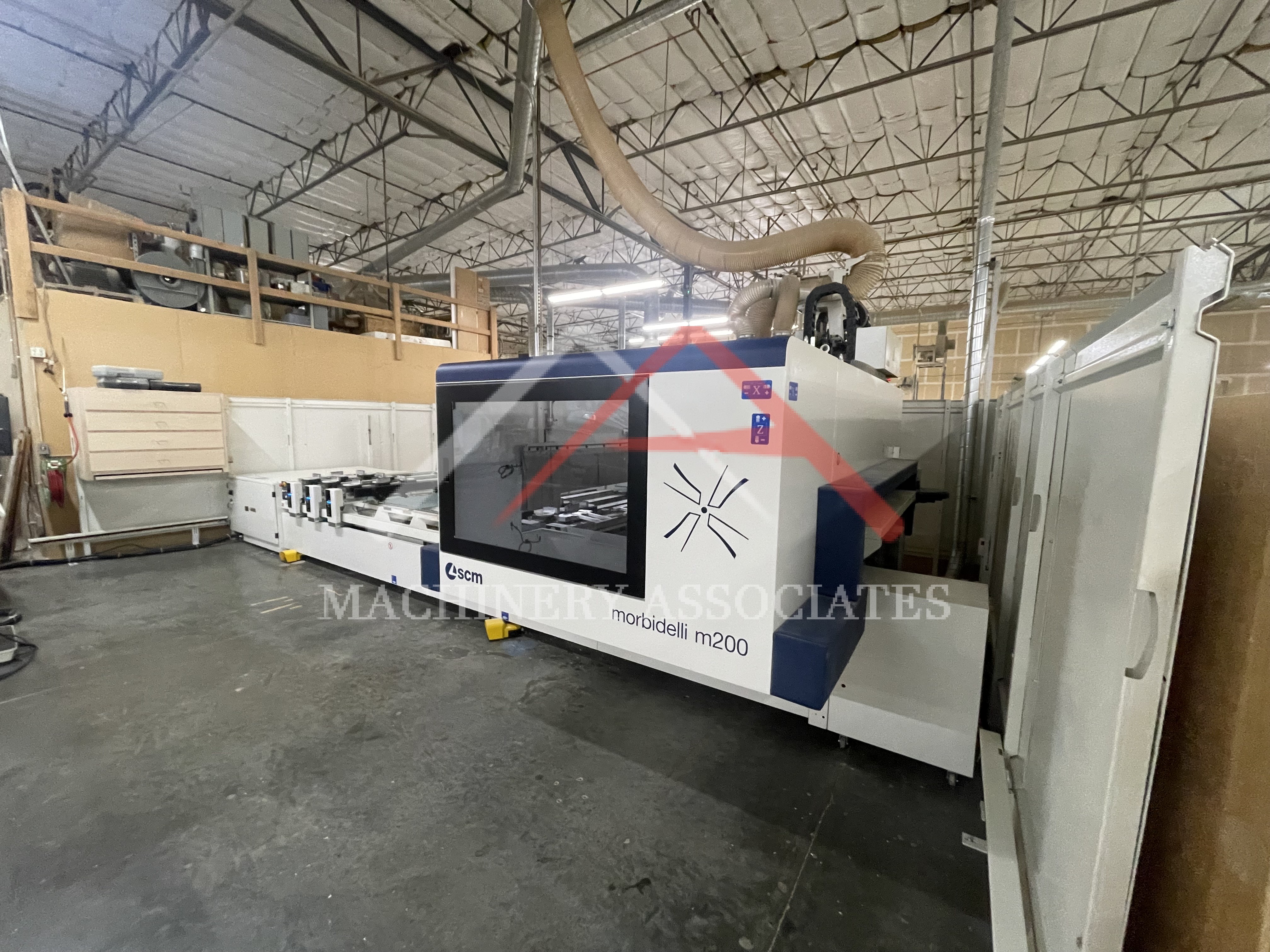

2020 Morbidelli M200

Highly Optioned Point to Point Router. Still under power!

MA ID: PTP - 13888
Price: $125,000.00

Point to Point

Manufacturer: SCM (SCMI)
Model: M200
Year of Manufacture: 2020
Condition: Very Good
Electric: Multi Voltage 60 Cycle 3 Phase

Machine Description:

Spindle Configuration

19 Hp Air Cooled HSK63F Main Spindle

3 Seperate Toolchangers

58 Toolholder Capacity

Automatic Tool Height Calibration

Boring Block (F23L):

3Hp Motor

Programable Speed 2500 to 8000 rpm

13 Vertical Spindles

5 Double Ended Horizontal 3X 2Y

Grooving Saw in X Speed 3,500 to 10,000 rpm

0-90 Saw Spindle

3Hp Motor

Fixed Speed 3000 rpm

Max Blade 160mm with Max Cut 45mm

6 Rail Layout "TV Flexmatic"

Automatic Pod Placement System is NC Controlled

Vacuum Interface to Pods and Custom Clamps

4 Unload Lifting Assist Devices

Software and Control:

Xilog Maestro

21.5 Control Monitor on Pedistal

7" Touchscreen Remote TECPAD HandHeld

Chip Conveyor

Becker m3/h Vacuum Pump

Automatic Centralized Lubrication

Pro Speed Safety System with Lights

Barcode Scanner


Weight: 17000 lbs
All Information including Photos and Videos are supplied by a 3rd party Source.
Please confirm all data before committing to a purchase.
*Subject to credit approval. Additional programs available.
