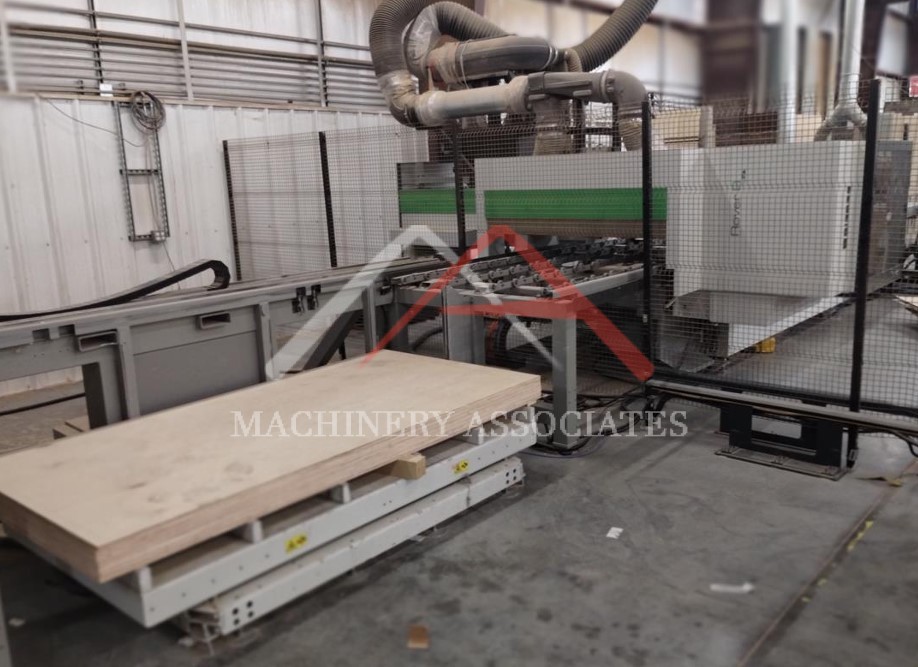

Biesse Rover B 1224 CNC Router (Nested Based Cell w/Labeling)
The top of the line Biesse model, has full infeed and offloading with sweeping This machine pre-labels the parts then processes them!!
| MA ID: | RC3 - 14101 |
| Price: | Call For Price |
| Category: |
CNC Router (3-axis) |
| Manufacturer: | Biesse |
| Model: | Rover B 1224 NBC |
| Year of Manufacture: | 2015 |
| Condition: | Very Good |
| Electric: | multi Voltage 60 Cycle 3 Phase |
|
2015 Biesse Rover B 1224 FT NBC
Specifications; Scissor Lift for Panel Size; 1244 x 2488 mm (4' x 8') Automatic Label Print and Application System with 0-90 degree rotation Automatic Panel Alignment; 2 vacuum operated cups pull panel into alignment Onloading panel; Performed with vacuum cups, mounted to back side of gantry. These lift the panel at the front edge and pull it onto the table. Cutting area, Table Size; Phenolic X=2511mm; Y=1249mm (4’x8’) Spindle; 13.2KW (17.7hp) with HSK toolholders. 4 Air blowing nozzles. Tool Changer; Ride along, 12 Position ATC carousel Tool length presetter max diameter; 130mm Drill Block; An 20 Spindle Drill Block with 11 spindles along X axis and 9 spindles along Y axis on 32mm center. Offloading Machined Pieces; is performed by lowering the pusher, The pusher moves at the same speed as the belt on the offload table. During this process, the dust collection is turned on, sweeping the table simultaneously Machined Pieces Unloading Belt (Off loading Table) Placed on the Right Side -Inclusive of Protection Devices with Vacuum System for Unloading Belt Vacuum pumps; 2 - 10hp Busch Claw pumps Software; Biesseworks, Biessenest
Biesse's top of the line machine is the Rover B. Better Pictures coming
|
|
| Weight: | 12000 lbs |
Please confirm all data before committing to a purchase.
*Subject to credit approval. Additional programs available.
