Andersen Stratos Pro-E 5x12 CNC Router
A Stratos Pro with C-axis and 2 Beckers in really nice shape!!
| MA ID: | RC3 - 14352 |
| Price: | Call For Price |
| Category: |
CNC Router (3-axis)CNC Router (4-axis) |
| Manufacturer: | Anderson America |
| Model: | Stratus Pro-E |
| Year of Manufacture: | 2007 |
| Condition: | Very Good |
| Electric: | 208/240/480 Voltage 60 Cycle 3 Phase |
|

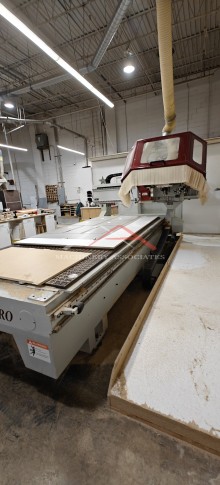

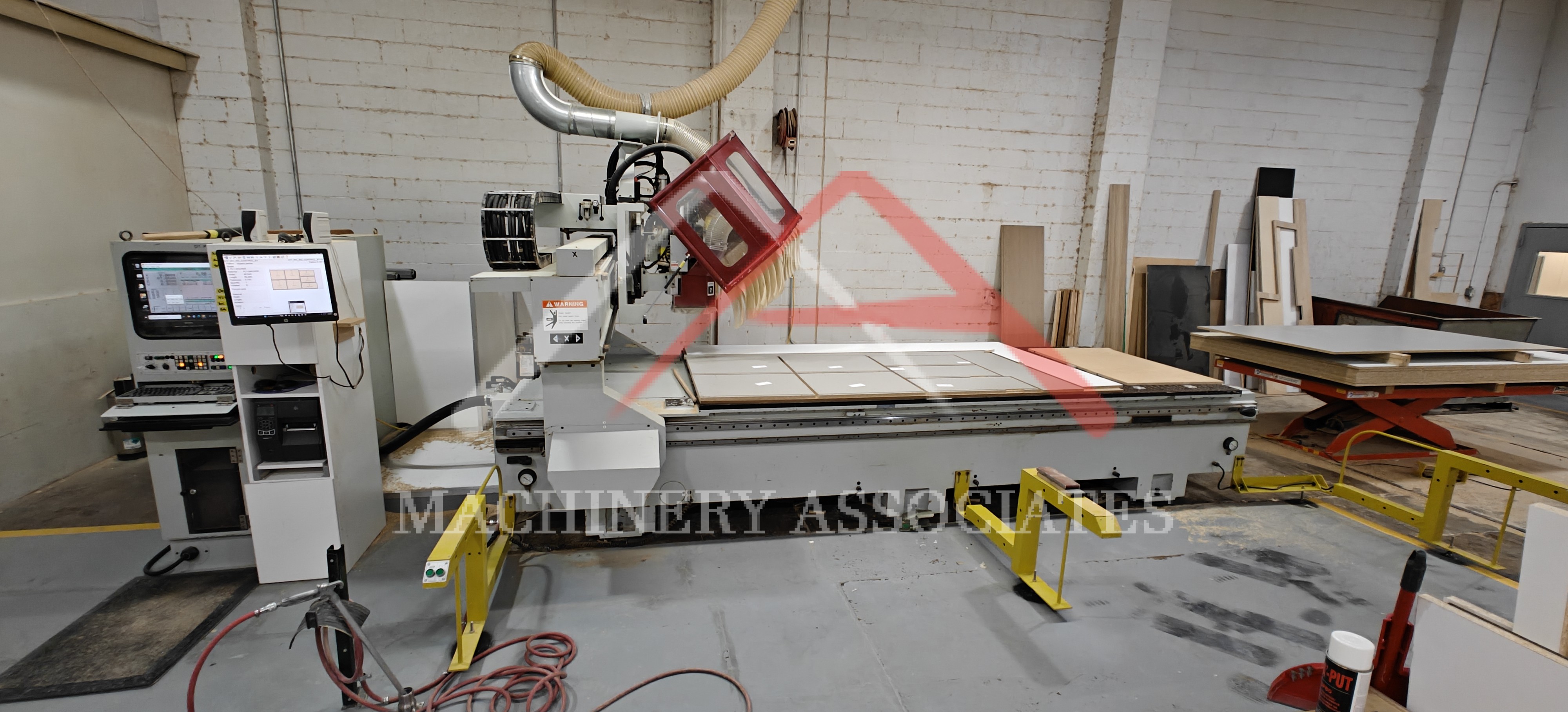

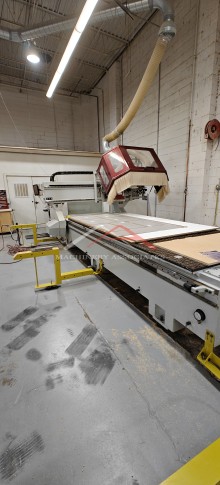

Andersen Stratos Pro-E 5 X 12 Flat Table CNC Router

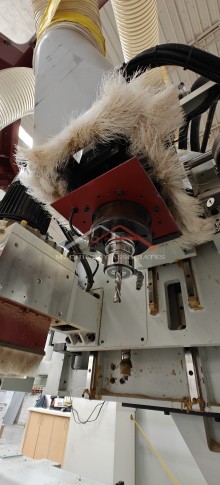

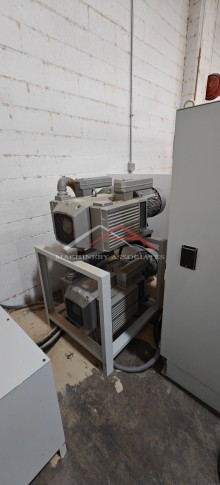

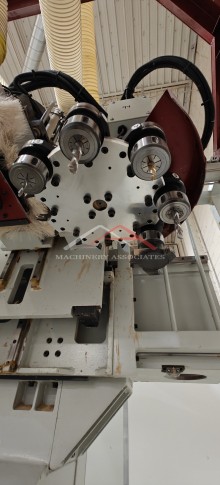

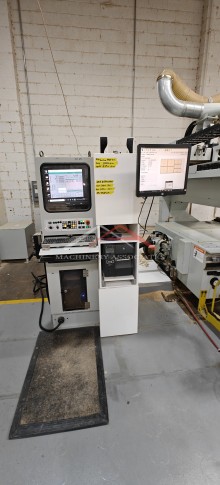

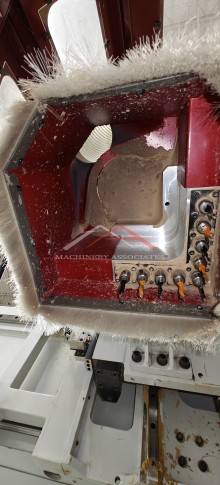

5' x 12' Grid table w/ double-zone phenolic vacuum plenum. (11) pop-up pins for part location within the table & (3) around the table perimeter for nested base manufacturing. 15 HP HSK-63F Type grease lubricated spindle, 1,000 - 24,000 RPM, WITH C-axis ATC with 10-station tool carousel 9 Spindle L-shape vertical drill block Control and Motion; FANUC "0i" CNC PC front system with PC WINDOWS XP & PLC control; color monitor, large hard disk for program storage, USB and RS-232 interface. Fanuc brushless AC Servo motors. The X-axis is driven by twin synchronous helical rack & pinion drive, and the Y- & Z-axis by precision ground ball screws with anti-lash ball nuts. All axes ride on STAR linear guides & recirculating linear roller bearing's for rapid feed rates up to 3,150 IPM on the X-axis, 2,362 IPM on the Y-axis and 1,181 IPM on Z-axis. Motion components have automatic lubrication system. Includes: 2- Becker 10hp Vacuum pumps. |
|
| Shipping Footprint: | 25 (length) x 8 (width) x 8 (height) |
| Weight: | 13000 lbs |
Please confirm all data before committing to a purchase.
*Subject to credit approval. Additional programs available.
