Morbidelli X200 CNC Router w/ Auto Infeed and Auto Offload and Labeling
A late model full Morbidelli CNC Router Cell with Labeling!! Has C-AXIS!!
| MA ID: | RC3 - 14354 |
| Price: | Call For Price |
| Category: |
CNC Router (3-axis)CNC Router (4-axis) |
| Manufacturer: | SCM (SCMI) |
| Model: | Morbidelli X200 |
| Year of Manufacture: | 2020 |
| Condition: | Very Good |
| Electric: | multi Voltage 60 Cycle 3 Phase |
|

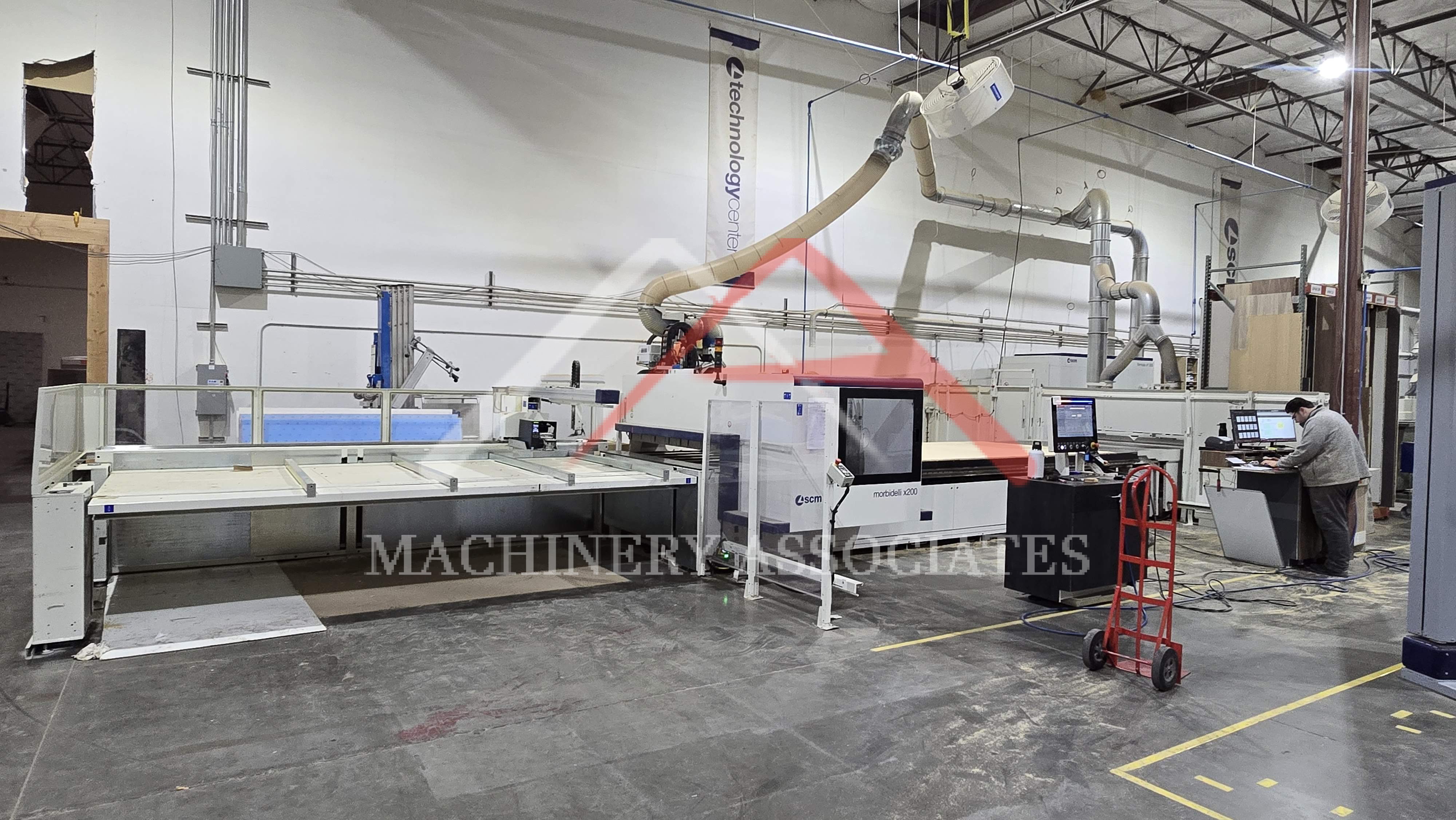

2020 SCM Morbidelli X200 Full CNC Router Cell

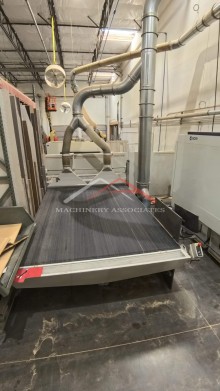

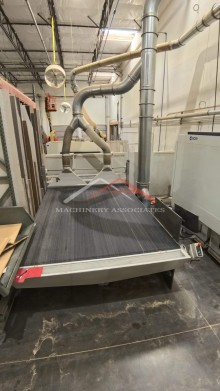

Infeed/Loading 7x14 loading capacity on Chain driven 4 post screw-style lift with 4 cribs to allow fork space for loading Labeling CNC Controlled label locater with ride-along printer Machining 7x14 Aluminum Vacuum Table (8 zone) Vaccum supplied by 2 - Busch Mink pumps Spindle; (16hp) (HSK) with C axis (Liquid cooled) Spindle speed; Variable to 24k rpm. 19 position ATC w/2 pickup spots 17 Spindle Drill block. Groving saw (90 degree rotation) Tool length device (Touch off) Z height clearance 150mm (5.9")
Off Loading Continuous belt feed, with dust extraction (upper and below) Automated panel stops Additional Dust collection
A fixed console controller with hand held mini portable Xilog Maestro Cad software (2 licenses) Light bar safety system(s) |
|
| Weight: | 18000 lbs |
Please confirm all data before committing to a purchase.
