2024 Pro Edge Lockdowel CNC Machining Center

Brand New 2023 Lockdowel Machining Center. Machine comes complete with Installation and Training! In Stock Ready to Rock!

MA ID: RC3 - 12998
Price: Call For Price
Category:

CNC Router (3-axis)

Point to Point

Manufacturer: ProEdge Technologies
Model: PET 2440 LD
Year of Manufacture: 2024
Condition: New
Electric: 240 Voltage 60 Cycle 1 Phase

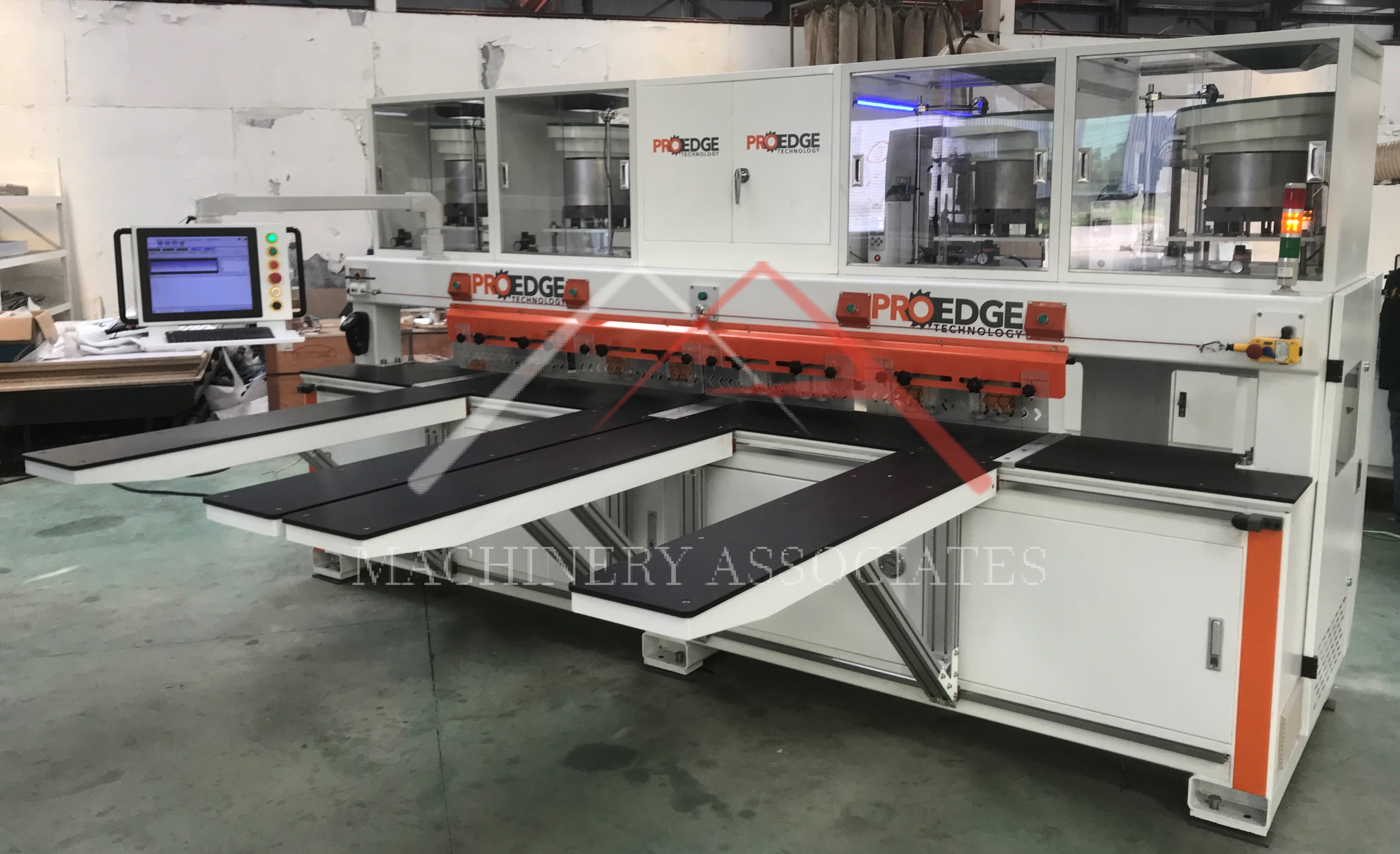

NEW Pro Edge Technologies Lockdowel Machine

Machine Description:

Full 3 AXIS CNC Control.  Vertical Z AXIS is Programed from Underside of Part.

3 Independent Routers 2 Horizontal 1 Vertical

4 Separate Injection Stations with Vibratory Hoppers and Preload Area

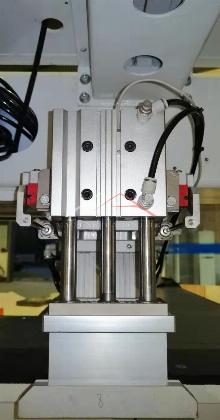

16 Vertical Clamps

2 Stage Material Stop. (Allows part to overhang and machine underside)

Automatic Lubrication

Non Proprietary Dell PC

Programming Software is user friendly with visual graphics of machining functions.  Software can program doors, Soss Hinges and is limited only by you and the geometry you want to machine. Software is loadable on Desktops also at no additional charge so programing can take place offline.

Barcode Scanner

Laser "Part in Place" Sensor Protects from Re-Machining Injected Parts

Easy to Read Electrical Wiring (Helpful if troubleshooting) All Wires have labels and are easily read.

Installation Travel and Living not Included. Prices are too varied to include.  Service tech time onsite is included in base price.


Shipping Footprint: 14 (length) x 4 (width) x 85 (height)
Weight: 9500 lbs
All Information including Photos and Videos are supplied by a 3rd party Source.
Please confirm all data before committing to a purchase.
*Subject to credit approval. Additional programs available.
