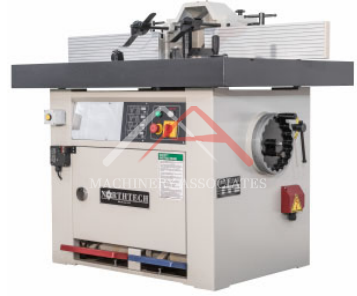

Northtech NT-735 Shaper

Northtech Shaper With A 10hp Motor, (With Options). Machinery Associates is a full line Northtech Dealer.

MA ID: SHM - 13142
Price: Call For Price
Category:

Manual Single/double Shapers
Manufacturer: Northtech
Model: NT-735
Year of Manufacture: New
Condition: New
Electric: 230 Voltage 60 Cycle 3 Phase
Northtech Shaper 10 HP- single arbor

Specifications:

• 10HP spindle motor
• 1 ¼” spindle 4 speed 3000RPM, 4,500RPM, 6,000RPM, 10,000RPM
• (2) 5-3/4" x 24" micro adjustable fences
• Foot operated spindle lock
• Foot operated spindle brake
• 36" x 48" worktable
• 5” under nut spindle
• 5" vertical spindle travel
• 35" table height
• (1) 5" dust port requiring 681cfm at point of extraction
• 65db decibel sound rating
• 3PH 230V/460V 60HZ, 26A/13A
• Machine / Packing weight: 1,254lbs / 1,404lbs
• Machine / Packing dimensions (L x W x H): 48" x 36" x 46" / 42" x 53" x 51"
• Northtech off ers a full line of dust collectors and fl ex hose for any application
• Router bit collets are not available on the 735 series
• (1) Tool box and manual included
• Standard Northtech one year parts warranty
• All machines are tested PRIOR TO SHIPMENT for worry free start up.



Options:

Optional 7” under nut tool holder 1-1/4" and nut (MK5 series) . . . $ 915.00
• Voltage change TO 460 V. . . $ 325.00
• Optional 1" tool holder (MK5 series) in standard, not long spindle . . . $ 502.00
• Optional 40mm tool holder and nut (MK5 series) . . . $ 850.00
• Front mounted digital readout positioning . . $ 285.00
• Front mounted positioning for M10 (without M10) . . . $ 285.00
• Digital Readout Height of spindle (installed) (DIGITAL-READOUT-HEIGHT/POSITION) . . . $ 995.00
• Digital Readout Tilt of spindle (installed) (DIGITAL-READOUT-TILT) . . . $ 895.00
• Fence positioning (installed) (DIGITAL-READOUT-HEIGHT/POSITION) . . . $ 795.00 (per side)


Shipping Footprint: 52 (length) x 53 (width) x 52 (height)
Weight: 1400 lbs
All Information including Photos and Videos are supplied by a 3rd party Source.
Please confirm all data before committing to a purchase.
*Subject to credit approval. Additional programs available.
