New Northtech Shaper (With Options)

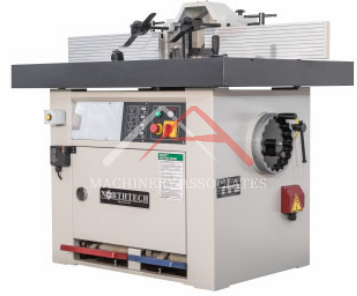

Northtech NT-735 Shaper (With Options)

MA ID: SHM - 13142
Price: Call For Price
Category:

Manual Single/double Shapers

Manufacturer: Northtech
Model: NT-735
Year of Manufacture: 2022
Condition: New
Electric: 230 Voltage 60 Cycle 3 Phase
Northtech Shaper

Specifications:

• 10HP spindle motor
• 1 ¼” spindle 4 speed 3000RPM, 4,500RPM, 6,000RPM, 10,000RPM
• (2) 5-1/4" x 24" micro adjustable fences
• Foot operated spindle lock
• Foot operated spindle brake
• 36" x 48" worktable
• 6” under nut spindle
• 7-1/4" vertical spindle travel
• 35-1/4" table height
• (1) 5" dust port requiring 681cfm at point of extraction
• 70db decibel sound rating
• 3PH 230V/460V 60HZ, 25A/12.5A
• Machine / Packing weight: 1,571lbs / 1,725lbs
• Machine / Packing dimensions (L x W x H): 48" x 56" x 46" / 52" x 53" x 52"
• Northtech offers a full line of dust collectors for any application
• (1) Tool box and manual included
• Warranty is one year parts

Options:

Sliding table . . . $1,530
Tilting spindle assembly (-5° -45°) . . . $2,145
Tilting Spindle / Sliding Table . . . $4,950
Long Table 39" x 88" with front wing extension . . . $2,000
Long Table, Tilting Spindle assembly (-5° -45°) . . . $3,000
• 7” under nut tool holder 1-1/4" and nut (MK5 series) . . . $ 915.00
• Optional 15HP motor . . . $ 1,500.00
• Voltage change . . . $ 325.00
• 1" tool holder (MK5 series) only available in standard. . . $ 502.00
• Optional 40mm tool holder and nut (MK5 series) . . . $ 850.00
• M-10 digital LED readout of spindle height (installed) . . . $ 855.00
• DP-727 digital electronic setworks with power raise and lower . . . $ 2,800.00
lower plus 99 positions memory / recall
• Front mounted digital readout positioning . . $ 275.00


Shipping Footprint: 52 (length) x 53 (width) x 52 (height)
Weight: 1800 lbs
All Information including Photos and Videos are supplied by a 3rd party Source.
Please confirm all data before committing to a purchase.
*Subject to credit approval. Additional programs available.
