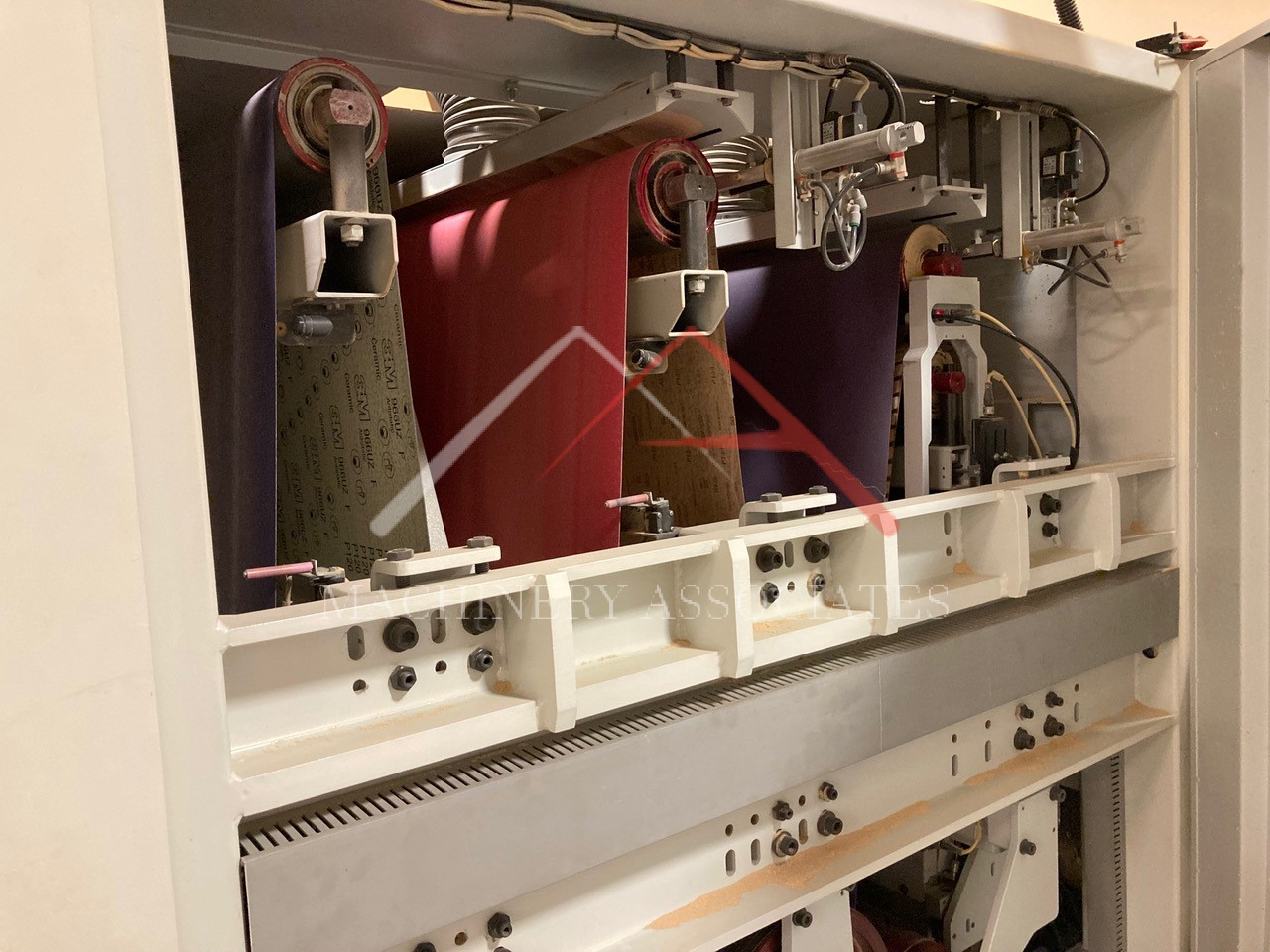

Biesse Regal 530 3head 53" widebelt sander

A beautifully built, very heavy duty machine

MA ID: SWM - 12945
Price: Call For Price
Category:

Wide belt and drum (Multi contact)

Manufacturer: Biesse
Model: Regal 530 / 1350
Year of Manufacture: 2007
Condition: Very Good
Electric: 600 Voltage 60 Cycle 3 Phase
Biesse Biessesand Regal 530 / 1350



Specifications;

1st Head

Helical Grooved Steel Roller, 260 mm Dia. (10.25”) for maximum calibration

Work position adjustment with gauge and memory for abrasive belt grit presetting

Abrasive belt rotation opposite of the feed speed

Pneumatic raising and lowering of the working units from control panel located at the front of the machine

Automatic disc braking system to stop the abrasive belt in case of emergency

Sealed high speed bearings on all positions

42 hp Y-delta soft start motor

Abrasive belt speed 22 meters per second

Abrasive belt length 2620mm (103’’)

Abrasive belt width 1370mm (54’’)

2nd Head

Helical Grooved 65 Shore rubber coated roller , 340 mm Dia. (13.5"

Work position adjustment with gauge and memory for abrasive belt grit presetting

Oscillating abrasive belt blowers on working unit for cleaning and cooling of abrasives

Timed intervention of the abrasive belt blower for reduced consumption of air Q6000520

Dual Rotation of Abrasive belt opposite/same of the feed speed Q9000552

Pneumatic raising and lowering of the working units from control panel located at the front

of the machine Q8000220

Automatic disc braking system to stop the abrasive belt in case of emergency

Sealed high speed bearings on all positions

36 hp Y-delta soft start motor Q9000510

Abrasive belt speed 18 meters per second

Abrasive belt length 2620mm (103’’)

Abrasive belt width 1370mm (54’’)

3rd Head

Superfinishing Pad- BiesseSand combines electronic pad technology with the use of a Chevron belt for the best possible results in sanding finish. Designed for when the highest quality scratch pattern is needed

­Includes Chevron belt for better finish

­Provides air buffer between pad and abrasive belt –Cooler operation

­Chevron belt will not let defects in graphite to telegraph to sanded product

­Chevron belt always gives a fresh new sanding surface for finer finish

­Gaps between felt chevrons leave smaller scratch pattern and help remove sanded debris

­Gives the advantage of both pad and drum technology in one unit

- Short scratch pattern of a drum

- Shallow scratch pattern of a pad

46 Sector Electronic Sectional Pad. Includes 46 Sector Reading Bar

Stiff Sanding Platten with Rigid insert for maximum sanding finish on solid wood

Semi-Stiff Platten insert for sanding of Veneer or Sealer/Lacquer applications

Work position adjustment with gauge and memory for abrasive belt grit presetting

Automatic disc brake to stop the abrasive belt in case of emergency

Oscillating abrasive belt blowers on working unit for cleaning and cooling of abrasives

Timed intervention of the abrasive belt blower for reduced consumption of air

Abrasive belt rotation opposite of the feed speed

Sealed bearings on all positions

24 hp , Inverter driven

Abrasive belt speed 9/18 meters per second

Abrasive belt length 2620mm (103’’)

Abrasive belt width 1370mm (54’’)



Highlights!

This machine has;

Touchscreen control! Please see last photo.

Automatic table positioning

Vacuum Bed

Segmented Platen

Chevron Belt

Belt cleaners (2nd and 3rd heads)

Panel cleaning station (blowers at the back of the machine)

Inverter driven 3rd head which can help you with finish or even doing sealer sanding

This is a REALLY nice machine!!








Shipping Footprint: 8 (length) x 10 (width) x 8' (height)
Weight: 11000 lbs
All Information including Photos and Videos are supplied by a 3rd party Source.
Please confirm all data before committing to a purchase.
*Subject to credit approval. Additional programs available.
