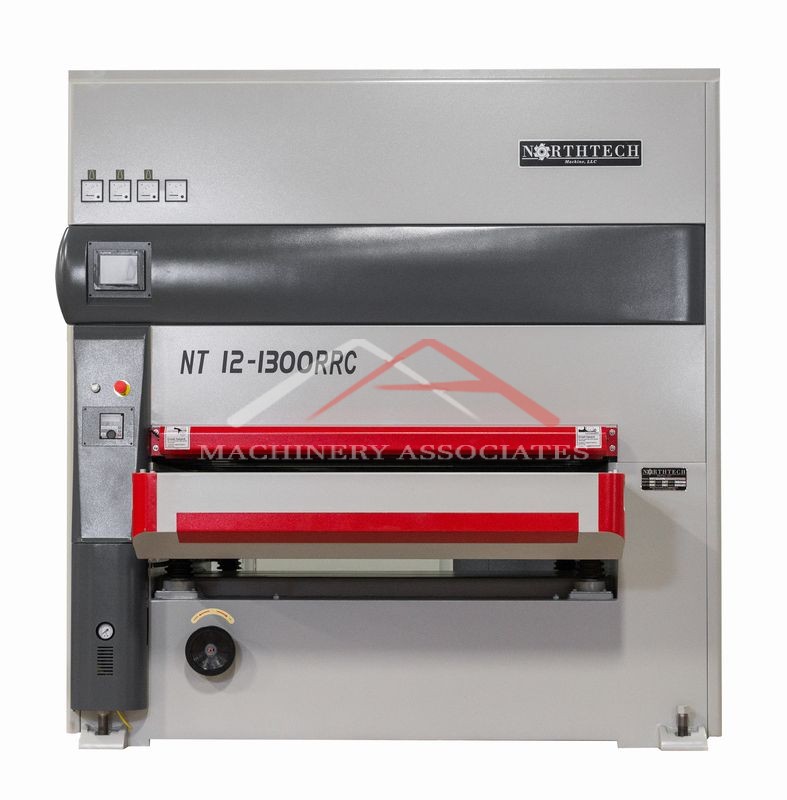

Northtech 51in 3 Head Wide Belt Sander

51" 3 head wide belt sander 40hp main motor. Machinery Associates is a full line Northtech Dealer.

MA ID: SWM - 13276
Price: Call For Price
Category:

Wide belt and drum (Multi contact)

Manufacturer: Northtech
Model: 12-1300RRP
Condition: New
Electric: 460 Voltage 60 Cycle 3 Phase
Northtech Wide Belt Sander

Specifications:

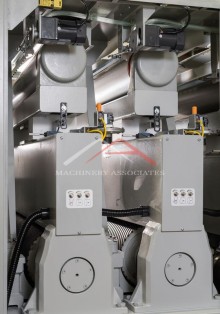

3 Sanding Heads: *12" 70 durometer spiral fluted roller *12" 65 durometer spiral fluted roller*3.25'' Pad

Main Spindle Motors: 40HP / 40HP / 30HP
Feed: Variable Speed 15-60 fpm  5HP motor with Inverter
Size Of Sanding Belt: 53" x 103"
Table Height 37" / Table Lift 4.75" by PLC Touch Screen
Belt Cleaner: 3x Full Coverage Oscillating Cleaners
1 Brush Roller, 1hp
Warranty is one year parts.
All machines tested stateside ensuring trouble free start up.
Amp Requirement = 137 Amps



Brush Motor hp. = 1 hp.

Feed Hp. = 5 hp.

Feed System = 53'' Seamless Rubber Feed Mat

Drive System = Gear Box Inverter Controlled

Elevation Hp. = 1 hp

Programmable Elevation System with  4x Post Jack Screws

Electronics = CE Approved Components

Dual Voltage = 230/460 Volt

Control Voltage = 230 Volt

Touch Screen = 8'' Digital Touch Screen

Min. Material Length = 20''

Max. Material Width = 52''

Min. Material Thickness = 1/4''

Max. Material Thickness = 4-3/4''

Platen Specs. = 4'' x 54'' with 8'' Graphite

1st Belt Speed = 5000 FPM

2nd Belt Speed = 5000 FPM

3rd Belt Speed = 3000 FPM

Oscillation Type = Pneumatic Controlled

Oscillation Rate = 20 Cycles/Minute

Oscillation Travel = 1/2''

Cleaning System = Oscillating Jet Blow Off

Tracking Style = Pneumatic Dust Proof Eye

Tension Style = Pneumatic

Dust Ports Out = 5''

Digital Display = Touch Screen 8''

Powered Rollers = 12x Hold Down Rollers

Idle Rollers = 12x Hold Down Rollers

Hold Down Style =  3 sets of Spring Loaded Pressure Shoes

Recommended CFM = 570 nl/min

Emergency Stop =  1 Push Button,   2 Bars

Brake System = 3x Pneumatic Dual Caliper Dis

Frame Const. = 1'' Steel Construction

Measure Meth. = Digital

Decibel Rating = 79 dB


Shipping Footprint: 120 (length) x 91 (width) x 94 (height)
Weight: 16500 lbs
All Information including Photos and Videos are supplied by a 3rd party Source.
Please confirm all data before committing to a purchase.
*Subject to credit approval. Additional programs available.
