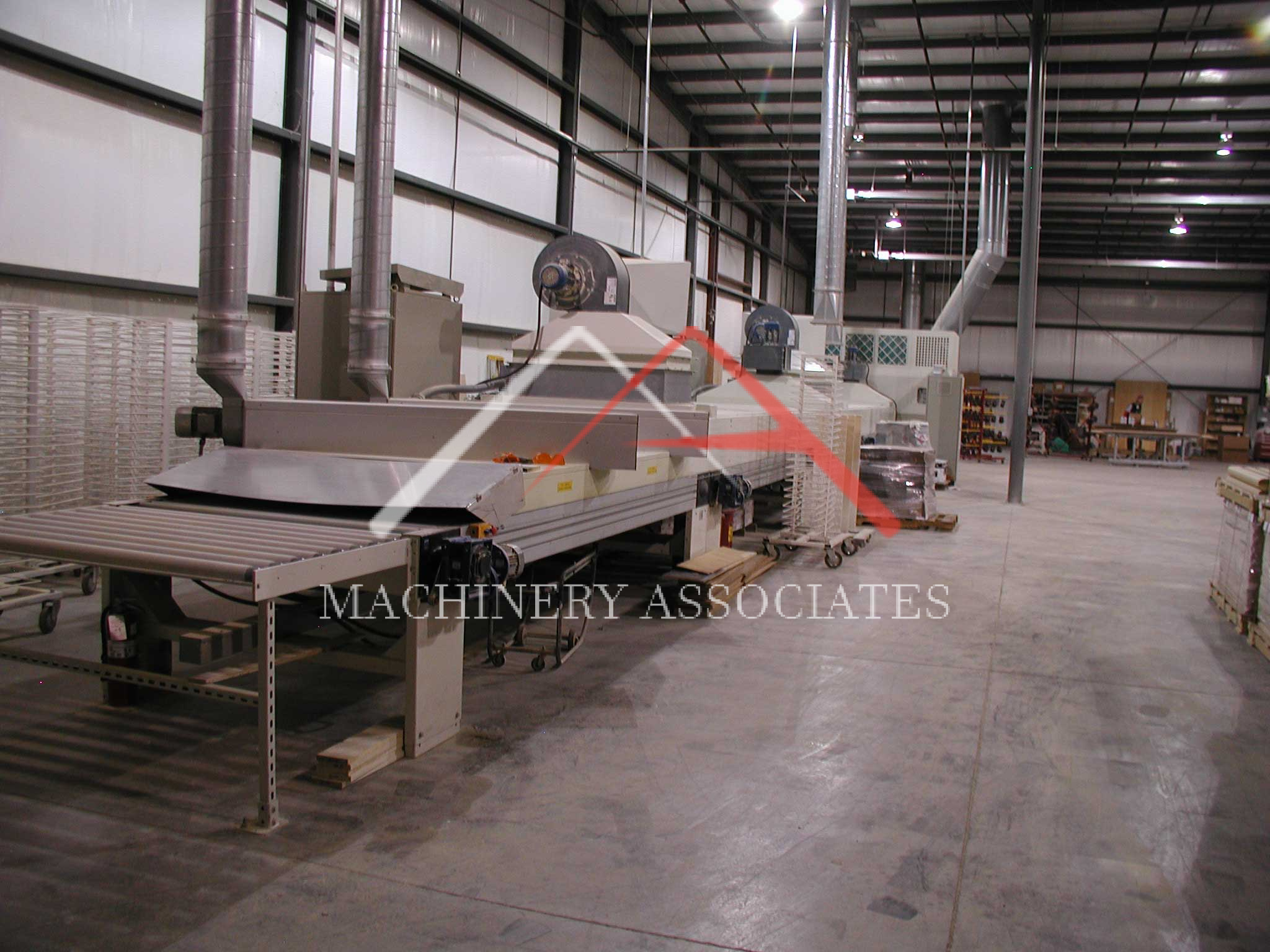

SUPERFICI COMPACT UV FINISHING LINE

SUPERFICI COMPACT UV FINISHING LINE

MA ID: FLA - 11694
Price: $180,000.00
Category:

Systems & Automated Lines

Manufacturer: Superfici
Model: COMPACT 3
Year of Manufacture: 2006
Condition: Very Good
Electric: 480 Voltage 60 Cycle 3 Phase
A SUPERFICI COMPACT SPRAYER W/(2)TWO HEAT stage Electric 60' LONG and a (2) Lamp UV oven.

COMPACT 3 spraying machine w/recovery system.

  • Double Arm Reciprocation Sprayer w/ 4 guns on each arm.
  • Central belt conveyor recovery in the spray area in special material, to work with lacquers and stains and a patented combined lacquer recovery system for recovery and cleaning of the conveyor.
  • The belt extends beyond the spray booth at in-feed and out-feed.

COMPACT 3 SPRAYING for UV and water base finishing martial.

GENERAL EQUIPMENT FEATURES OF THIS SPRAY LINE.

  • Pass line height:      900 mm   (35 - 7/16)
  • Operating side:        RH as viewed from inlet of line.
  • Work piece Dimensions (Approx)
  • Min - Max. Length:   12" - 16'
  • Min - Max. Width:     1" - 51"
  • Min - Max. Thickness:  1/8" - 3"
  • Max. Weight: 10# per Square Foot

CONNECTIONS:

  • Voltage: 480 V/ 3 Ph / Hz + earth
  • Standard distribution system: TN-S ( "Y" configuration ground, floating ground is unacceptable)
  • Compressed air: 6 bars (90 PSI)
  • Thermal connection ( required): electric coils (option : hot water, steam, oil, gas.

Speeds: Mechanical speed: 2 - 6 m/min. Avg. production speed: 3 - 4 m/min

Product: Passage doors, related components, etc.

Coating: TBA / can run all finishing kinds. Solvent,water, and UV

These line specifications supersede the individual

descriptions in the case of any disagreements.



 (2) Two Electric Laminar Air Dryer 12 Mt. long Ovens  Connected for a (2) Two Stage Temperature  Control.

  • The system is arranged for the installation onto cross bar conveyors.
  • Recirculating ventilation system with high performance axial fan which conveys air into a special-design collecting hood allowing a uniform distribution with minimum losses. Thanks to the particular design of the hood the air is blown over the work pieces and afterwards it is drawn sideways by the fan through wide openings. Air is partially circulated and partially ex pulsed as exhaust. Two heating coils allows the first and second ovens to become a two stage temperature control cabinets for better control of curing.

Two (2) Kremlin pressure pump and 8 Graco AA Guns and Pressure Regulator



BELT CONVEYOR TYPE TT1 1000 mm.

  • Out feed belt conveyor Type TT1  1000 mm.
  • Conveyor length 1000 mm.

Rigger: Required on selling end
Required on buying end
All Information including Photos and Videos are supplied by a 3rd party Source.
Please confirm all data before committing to a purchase.
*Subject to credit approval. Additional programs available.
