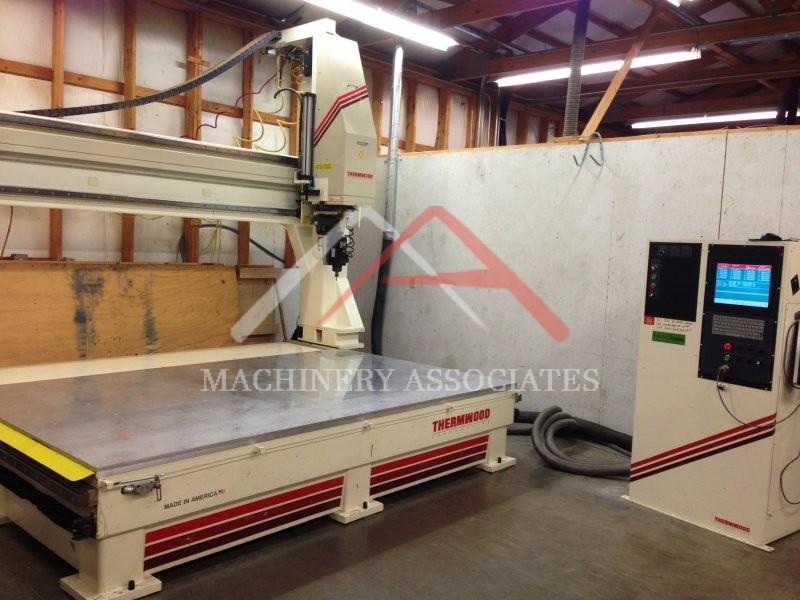

Thermwood Model 70 5-Axis CNC Router

MA ID:	RC5 - 4993
Status:	Sold
Price:	$69,950.00
Category:	CNC Router (5-axis)
Manufacturer:	Thermwood
Model:	70
Condition:	Good
Electric:	480 Voltage 3 Phase
Price reduced from $93,750! Refurbished in 2006 by Thermwood 72" x 120" work table Designed for three dimensional trimming and machining of molded plastic or composite parts. Closed loop Siemens AC Servo drives equipped on all axes The stationary table has an aluminum jig plate table surface Control System Thermwood SuperControl 15" full color LCD monitor The control provides AT bus expansion slots and is compatible with most LANs Model 70 Machine Programmable and controlled five axis AC Servo Drive System with feed speeds to 1200 inches/minute 24" of vertical stroke (Z-axis) Air conditioned control cabinet EIA 274D programming 480V, 60Hz, 3Ph power Tooling 7.5HP Dual End High Frequency Router Spindle Variable programmable speed 3,000 to 18,000 RPM Options Automatic Lubrication System Automatic Tool Length Measurement
Rigger:	Required on selling end Required on buying end

All Information including Photos and Videos are supplied by a 3rd party Source.
Please confirm all data before committing to a purchase.
*Subject to credit approval. Additional programs available.
