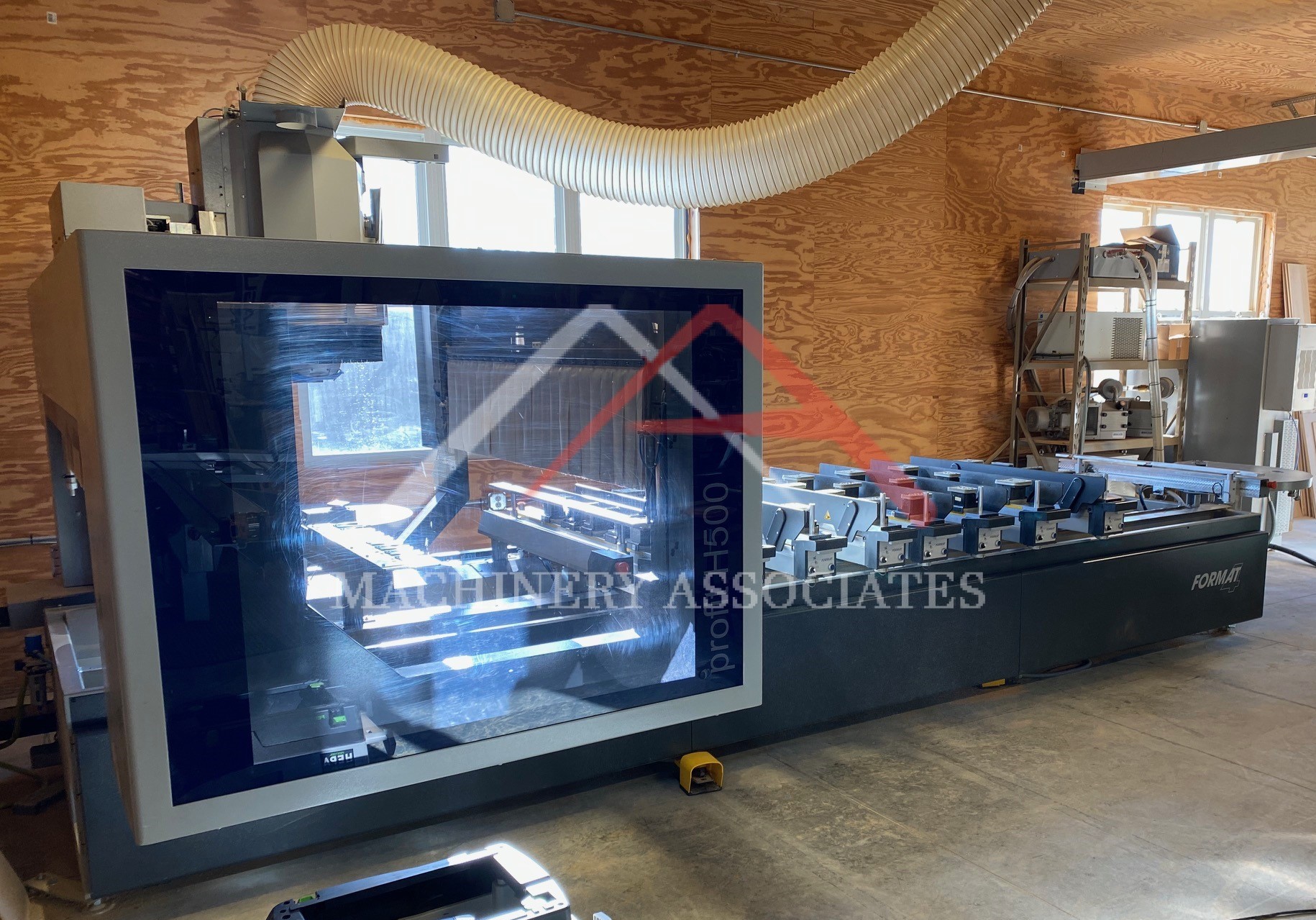

2019 Format 4 Profit 5 AXIS CNC Router Point to Point

Format 4 Profit H500 CNC Still under power LOW LOW HOURS!

MA ID: RC5 - 13904
Price: $120,000.00
Category:

CNC Router (5-axis)

Point to Point

Manufacturer: Felder
Model: Profit H500 16.38
Year of Manufacture: 2019
Condition: Very Good
Electric: 400 Voltage 60 Cycle 3 Phase
Hours on meter: 676
Felder Format 4 CNC Router

Specifications:

Liquid cooled 12kw 5 AXIS spindle HSK63F (24,000 rpm)

10 Position Tool Changer Linear

(2) 24 Tool Tool Changers totaling 58 Tool Capacity

Auto Lubrication System

Programmable NC Controlled Spindle Extraction Hood

Automatic Tool Length Device



Table Configuration

(8) Rails for Pod Placement and Work Zones

4 Additional Loading Supports



Additional

Two Vacuum Pumps 3KW

Handheld control with emergency stop and feed rate adjustment

24" LED color display monitor with keyboard and mouse

Windows 7

Woodflash software

Travelable distance:

X - 4930 mm

Y - 1925 mm

Z - 500 mm

Working Area:

X - 3740 mm

Y - 1570 mm

Z - 350 mm

Axis Positioning Speed:

X - 80 m/min

Y - 80 m/min

Z - 30 m/min

Still Under Power Moves in March 2024




Weight: 20000 lbs
All Information including Photos and Videos are supplied by a 3rd party Source.
Please confirm all data before committing to a purchase.
*Subject to credit approval. Additional programs available.
Click Herefor More Info or call Product Manager Gary Carney 877-622-4657 x101
