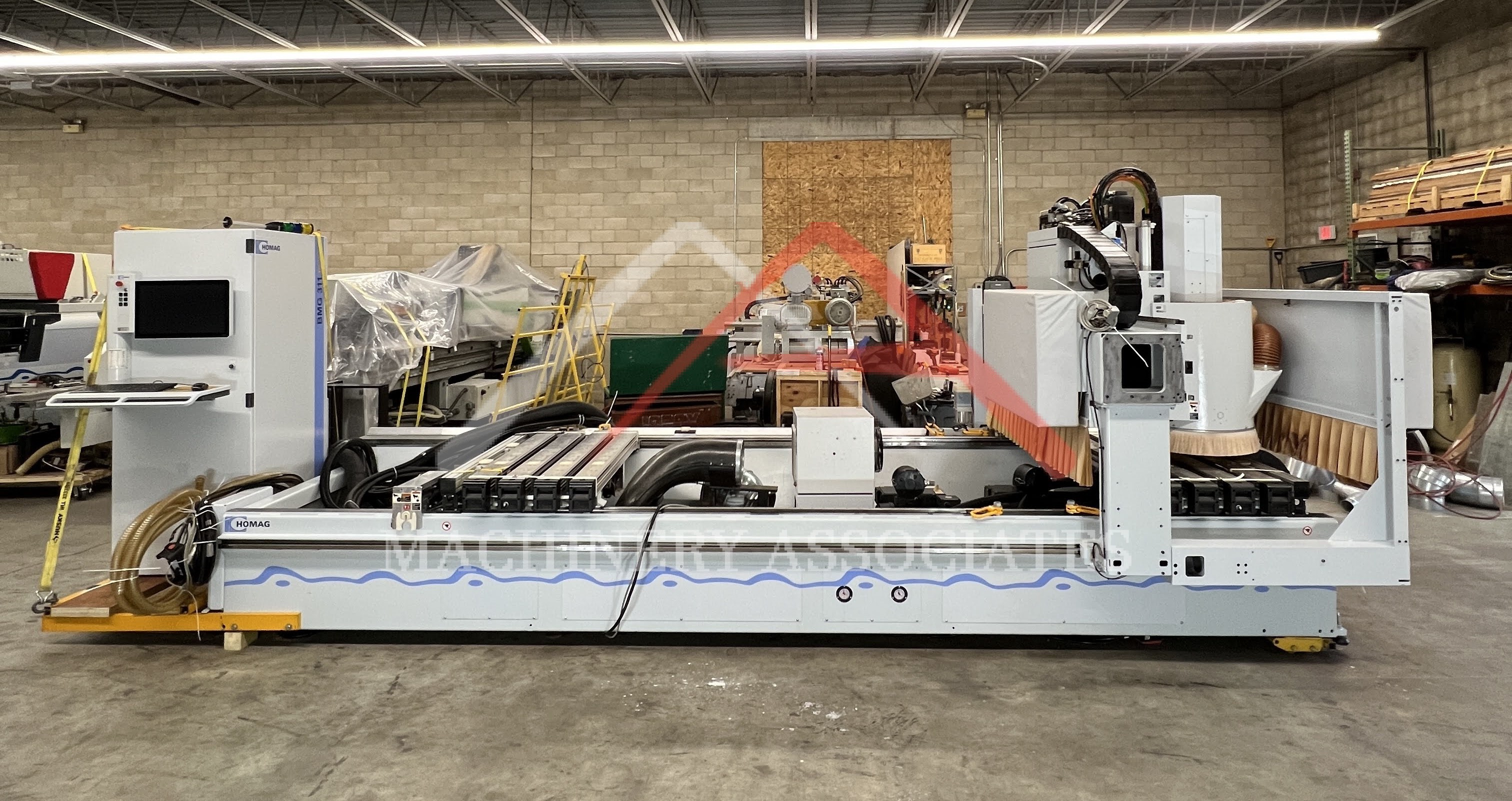

Homag BMG311 5 axis CNC Router

Just In!! A late model, low hour HOMAG 5 axis machine. OVER $325 new!!

MA ID: RC5 - 13990
Price: $139,000.00
Category:

CNC Router (5-axis)

Point to Point

Manufacturer: Homag
Model: BMG 311/42/F/K
Year of Manufacture: 2017
Condition: Very Good
Electric: 480 Voltage 60 Cycle 3 Phase
Homag 5-Axis BMG 311 CNC Machining Center



Specifications;

5 Axis Router Spindle - 12kw (16hp)

  -  Liquid cooled, Programmable 1,500- 24,000rpm, HSD Tool Holders

  -  Maximum tool weight of 6 kg (13.23 lbs.) including tool holder

  -  Maximum tool length of 230 mm (9-1/32") calculated from lower edge of motor spindle for boring and routing tools of 20 mm (25/32") diameter maximum

  -  Maximum tool length of 165 mm (6-1/2") calculated from lower edge of motor spindle for roughing or profile tools of 80 mm (3-1/8") diameter maximum

  -  Maximum tool diameter of 180 mm (7-3/32") for routing tools

  -  Maximum tool diameter of 350 mm (13-3/4") for using a saw blade in the optional saw blade chuck (#7942); with tool chuck "A" dimension of 50 mm

14 Position Plate-Type, Ride Along Tool Changer w/ Tool Transfer Spot

16 Spindle Boring Head  (12vertical and 4Horizontal) (One grooving saw (works in X and Y) )

      -   Powered by 2.2kw (3hp) motor

     -  Programmable to 7,500rpm



Table Size 4200mm x 1340mm  (165.4") x (52.75")

8 Vacuum pod support beams

LED Positioning System

Chip and Waste Conveyor



2 Busch Vacuum Pumps

WoodWOP 7 Software Package

This machine is sold without pods or vacuum clamps. They are available at BVC and/or Schmalz. Also, Stiles


Shipping Footprint: 30 (length) x 8 (width) x 8 (height)
Weight: 15000 lbs
All Information including Photos and Videos are supplied by a 3rd party Source.
Please confirm all data before committing to a purchase.
*Subject to credit approval. Additional programs available.
