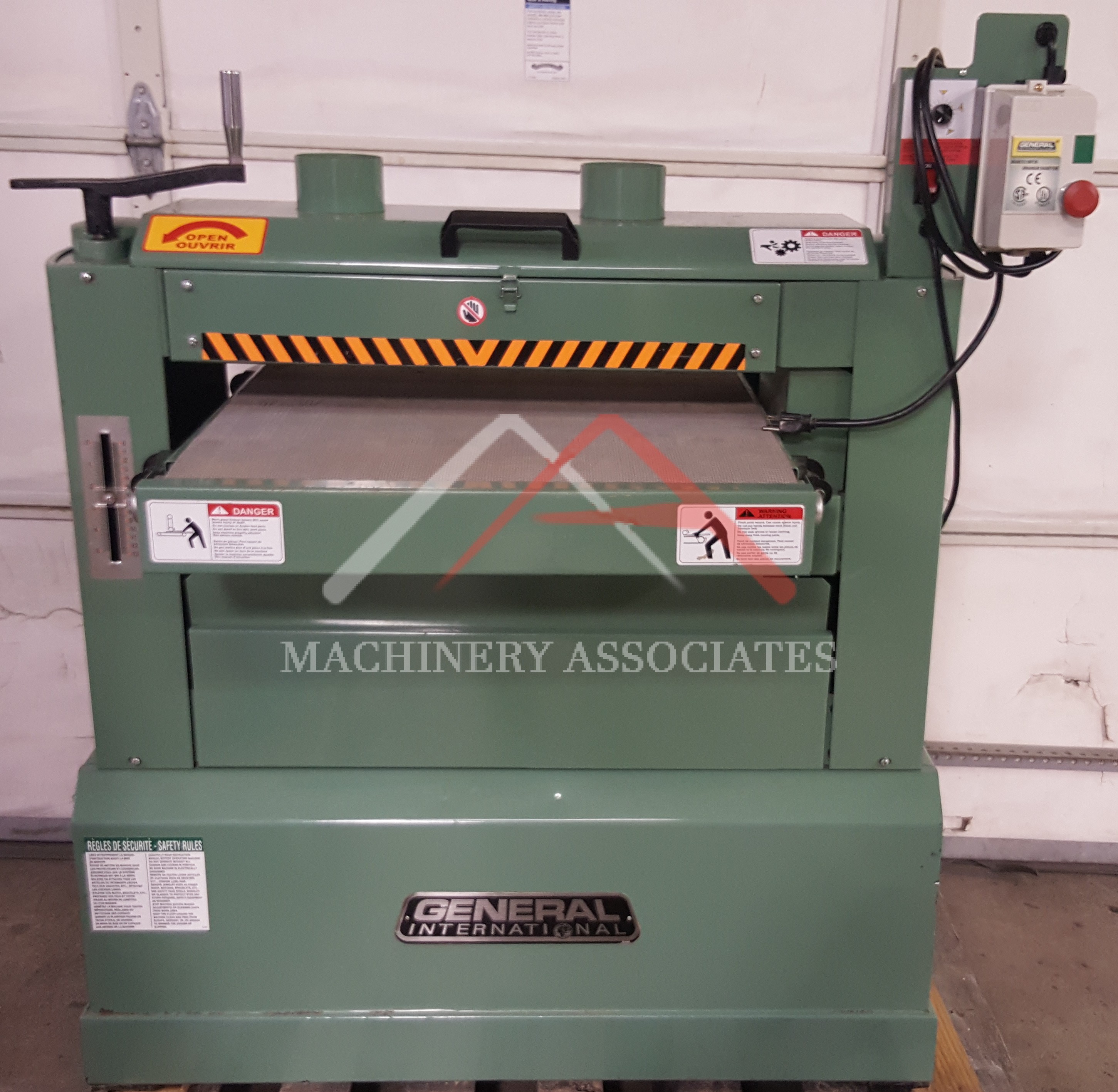

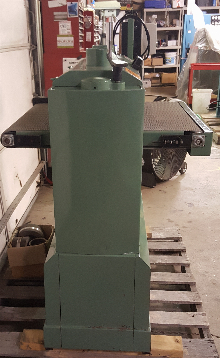

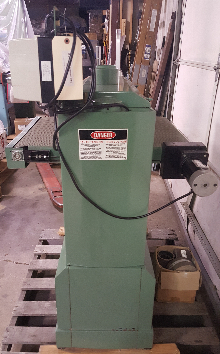

General International 15-250M1 Drum Sander

MA ID:	SWM - 9317
Status:	Sold
Price:	$1,595.00
Category:	Wide belt and drum (Multi contact)
Manufacturer:	General
Model:	15-250M!
Year of Manufacture:	2003
Condition:	Good
Electric:	220 Voltage 1 Phase
General International Double Drum Sander 15-250M1 Cleaned, Checked 3 HP, 220 V, Single phase 24" max width 5" max thickness 1/4" min thickness 5" drum diameter at 1550 RPM 3 to 20 FPM variable feed speed This 24 in. horizontal double drum sander is designed for fine finish sanding for wide boards and glue-ups after planning for small to medium sized shops and saves time and sanding steps by allowing you to sand 2 successive grits in one pass. The 15 - 250 M1 features a sturdy steel frame, heavy duty flared steel base and precision machined sanding 5 in. drums for smooth, stable, vibration-free performance. The sanding drums are equipped with quick-change spring clips to secure the paper tightly and the drum is driven with dual v-belts by a 3 HP 220-Volt motor equipped with a magnetic safety switch. The high-quality industrial rubber feed conveyor is driven by a separate 1/6 HP motor with variable feed speed control from 3 ft. to 20 ft. per minute. The sanding thickness capacity of the 15 - 250 M1 ranges from a 1/4 in. minimum to a 5 in. maximum. The hinged metal cover is fitted with (2) 4 in. dust outlets for efficient dust removal. Steel frame and heavy-duty base for greater stability High quality variable speed conveyor belt for long service life Parallelism between the sanding drums and the conveyor table is adjusted by convenient adjustment screws Large hand wheel adjusts conveyor table height Magnetic safety switch (2) 4 in. dust outlets Graduated scale in both inches and metric to indicate sanding thickness Conveyor belt motor equipped with a safety switch with removable key Dual v-belt driven sanding drums Specifications: Drum Diameter (in.) 5 Product Height (in.) 45.5 Belt width (in.) 24 Product Width (in.) 32.5 Maximum feed height (in.) 5 Table Length (in.) 49.5 Minimum feed height (in.) 0.25 Table Width (in.) 32.5 Product Depth (in.) 49.5
Weight:	450 lbs
