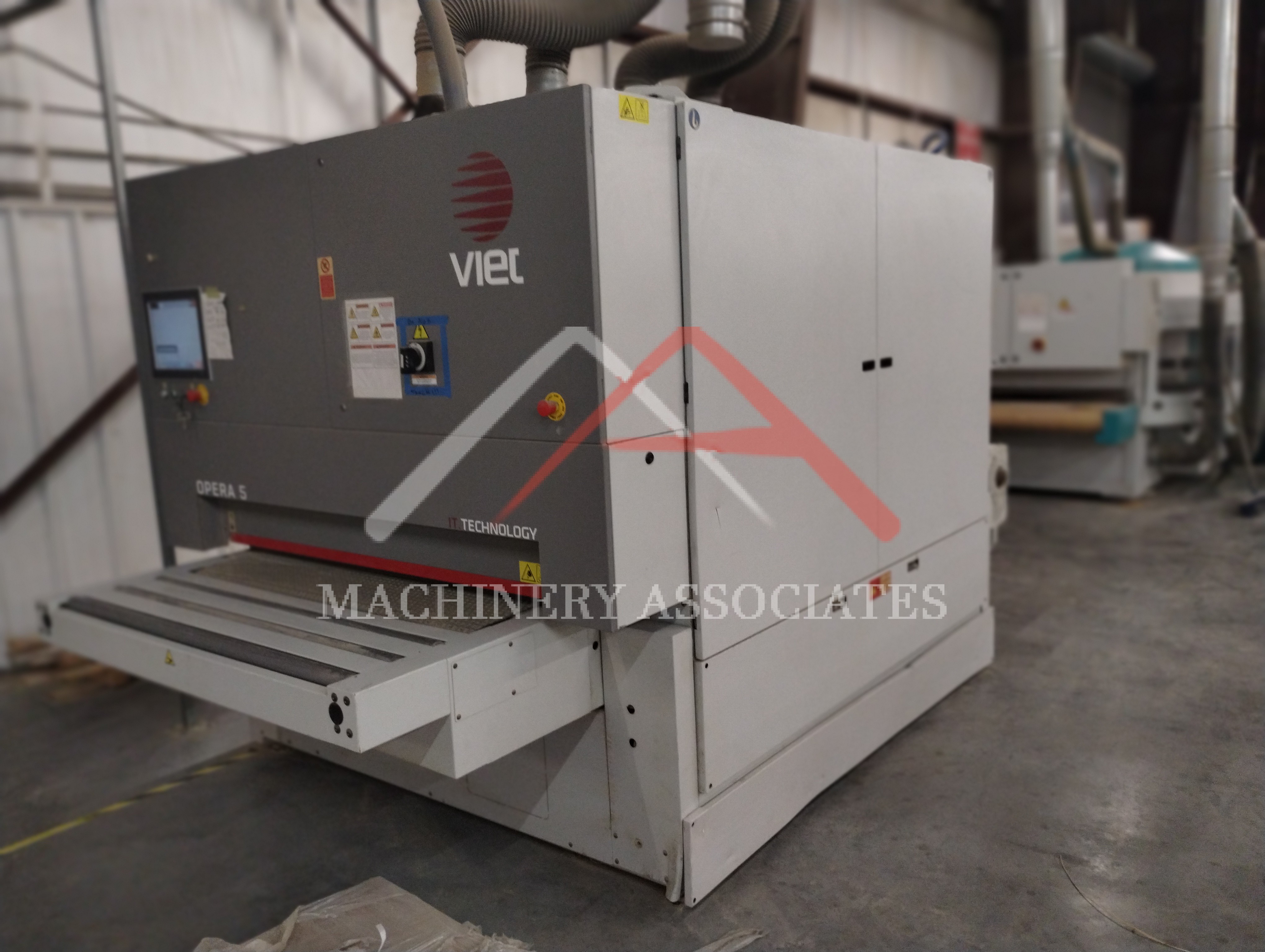

Biesse Viet Opera5 RRRF Widebelt Sander (4 head)
This is a beast!! Heads are Roller, Roller, Roller, Fine Finish. Inverter driven finish head will sealer-sand between coats!
| MA ID: | SWM - 14104 |
| Price: | Call For Price |
| Category: |
Wide belt and drum (Multi contact) |
| Manufacturer: | Viet |
| Model: | Viet Opera 5 4.3 RRRF |
| Year of Manufacture: | 2015 |
| Condition: | Very Good |
| Electric: | 480 Voltage 60 Cycle 3 Phase |
|
Biesse Viet Opera 5 4.3 RRRK 53" Widebelt Sander
1st Working Unit - Drum Unit - The roller working unit is characterized for the precision and Drum - 240mm - Steel Infeed pressure shoe The pressure beam is used to guarantee the maximum Outfeed pressure shoe
2nd Working unit - Drum Unit Main motor 18,5 kW (25HP) Drum - 300mm - 70 Shore Infeed pressure shoe Outfeed pressure shoe
Main motor 15 kW (20HP) Drum 300mm-40 shore Linear blower cleaning sanding paper A.S.S. (Air Saving System) Infeed pressure shoe Outfeed pressure shoe
4th Working unit - Superfinishing unit The super-finishing pad is the evolution of the pad unit (Viet Main motor inverter 15 kW (20HP) Pneumatic “air cushion” pad This pneumatic pad is the ideal tool to solve finishing Contact insert for pneumatic pad made of steel + felt + graphite Linear blower cleaning sanding paper A.S.S. (Air Saving System) Infeed pressure shoe
FEATURES Working Width: 1350 mm (53.15") Constant Pass (Fixed Table) - Heads adjust up/down by program) Working Height: 200 mm (7.87") Laser Electronic Positioning for working thickness Motors with amp meters IPC Compact 15" Color Touch Screen Controller Vacuum Table with 7.5 HP Motor, Electronic System, IPC Control with feed speed up to 75 FPM. 50 Shore Rubber Conveyor Vacuum bed for short parts Front & Rear Extension Rollers (2 EACH)
|
|
| Shipping Footprint: | 14 (length) x 8 (width) x 8 (height) |
| Weight: | 13500 lbs |
Please confirm all data before committing to a purchase.
