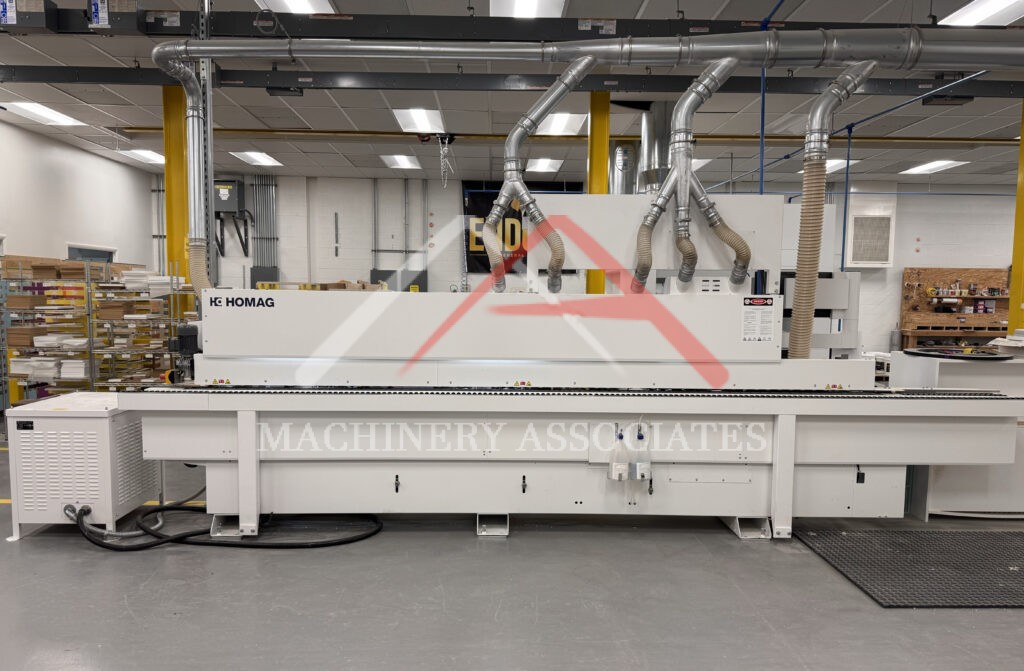

Homag Edgeteq 4.4 AT airTec Edgebander
A late model Homag 4.4 with Airtec and 137 hours!!!!
| MA ID: | EBS - 14351 |
| Price: | $94,900.00 |
| Category: |
Edgebanders -Single Sided |
| Manufacturer: | Homag |
| Model: | Edgeteq S-300 Optimat KDF 440C |
| Year of Manufacture: | 2022 |
| Condition: | Excellent |
| Electric: | multi Voltage 60 Cycle 3 Phase |
| Hours on meter: | 137 |
|
2022 Homag Edgeteq S-300 (4.4) with airTec with VERY low hours!
PowerTouch Program Control Electrical equipment installed per UL regulations Motorized top pressure beam for workpiece thickness adjustment Panel preheating Automatic feed track lubrication system Extended infeed fence with servo control Pneumatically-controlled hard stop at machine infeed to prevent premature workpiece introduction Joint Trimming Unit for pre-trimming the workpiece edge prior to processing QA-65 N granulate glue application system for use with EVA and PUR adhesives, with purge feature. Software pre-installation for anti-adhesive, lubrication, and detergent spraying units Motorized positioning of the pressure zone. First pressure roller driven and two (2) idle pressure rollers AT 15 airTec Unit to provide zero glue line results. Maximum workpiece thickness is 40 mm when using airTec. Double-Motor End Trimming Unit with straight and chamfer capability. Chamfer up to 15 degrees. Program-controlled indexing from straight to bevel end trimming Multi-Stage Fine Trimming Unit with 4 processing positions via program control: 2 radii, bevel and flush trimming. Servo control for edge thickness. Nested top copy system with 3 roller tracing. (R = 1 / 2 mm) Corner Rounding Unit with 2 position indexing automatically for two edge thicknesses. (R = 2 mm) Multi-Stage Scraping Unit with program control for two (2) different radii and bevel scraping: servo-controlled vertical and horizontal tracing rollers. Nested top and bottom copy system with 3 roller tracing. (R = 1 / 2 mm) Finish Scraping Unit Buffing Unit with two (2) motors, two (2) cloth buffing discs (150 x 20 mm diameter) Sound enclosure with window Total run time of conveyor is 137hrs!!! |
|
| Shipping Footprint: | 18 (length) x 5 (width) x 6 (height) |
| Weight: | 5000 lbs |
Please confirm all data before committing to a purchase.
*Subject to credit approval. Additional programs available.
