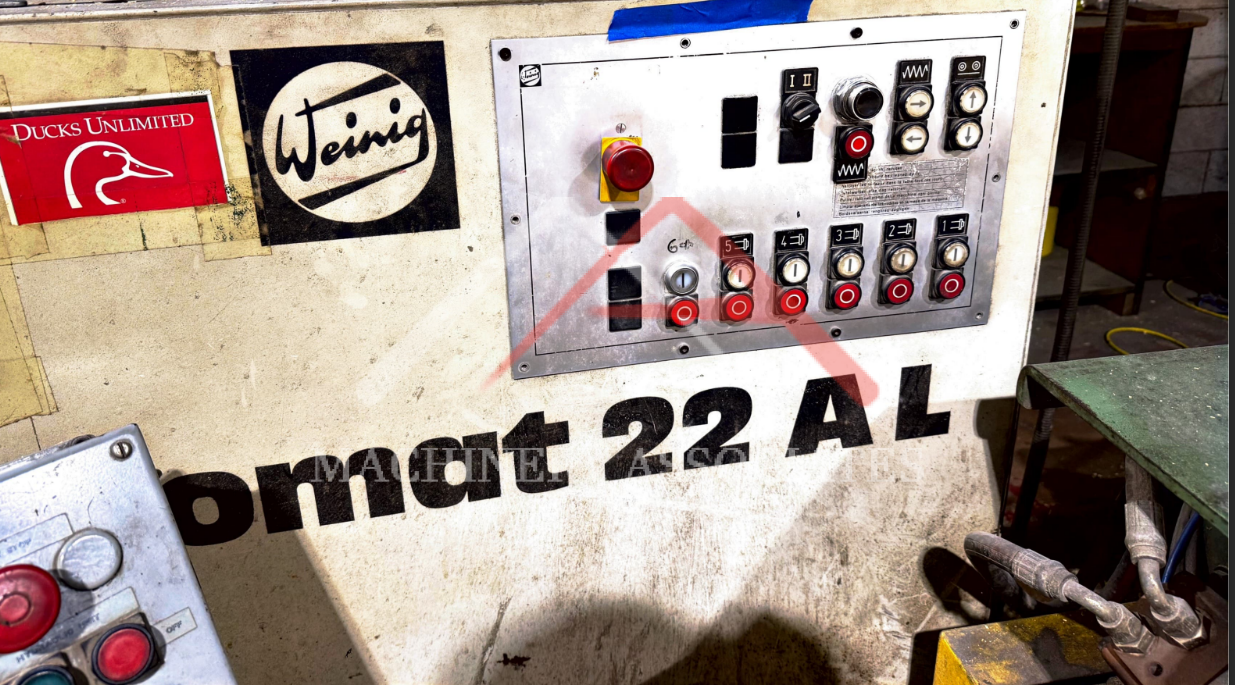

WEINIG H22AL/002 MOULDER THROUGH FEED
WEINIG H22AL/002 MOULDER THROUGH FEED OLDER MODEING IN GOOD CONDITION . STILL USED AND CONNECTED TO POWER.. 200 fpm WITH 1-13/16" SPINDLES
| MA ID: | MFT - 14346 |
| Price: | $22,500.00 |
| Category: |
Moulder - Feed Through |
| Manufacturer: | Weinig |
| Model: | H22AL |
| Year of Manufacture: | 1993 |
| Condition: | Good |
| Electric: | 230 Voltage 60 Cycle 3 Phase |
|
OLDER JOINTED MACHINE STILL IN PRODUCTION. 200 FPM 1-13/16" SPINDLES.
Spindle configuration: (B-R-L-T-T-B)Working cap: 9-1/16" x 4-3/4"Motors: B-15 HP, R-15 HP, L-15 HP, T-20 HP, T-25 HP and B-20 HP.Spindles: Dia. 1-13/16” at 6,000 RPM’s with mechanical readouts all spindles; including pneumatic chipbreaker's and pressure elements. Outboard bearings on spindles 4,5 and 6 (not shown on machine). Profile jointers hydraulic plunge sytle. 2,3,4,5 and 6. Cutting circles 9-7/8" on 2-6. Auto raise and lower feed beam.Feed: Variable speed from 20-200 FPM; 10 HP mechanical motor. Tilt Feed for tilting feedbeam for bevel siding. Powered rollers (2) top and (1) bottom roller prior to first bottom spindle. (2)Additional rollers between top and after last bottom full width.Tables: Infeed table (900M) with side pressure roller; table lubrication pump.Includes: Cutterheads amd misc parts. |
|
| Shipping Footprint: | 20 (length) x 7 (width) x 7 (height) |
| Weight: | 12000 lbs |
