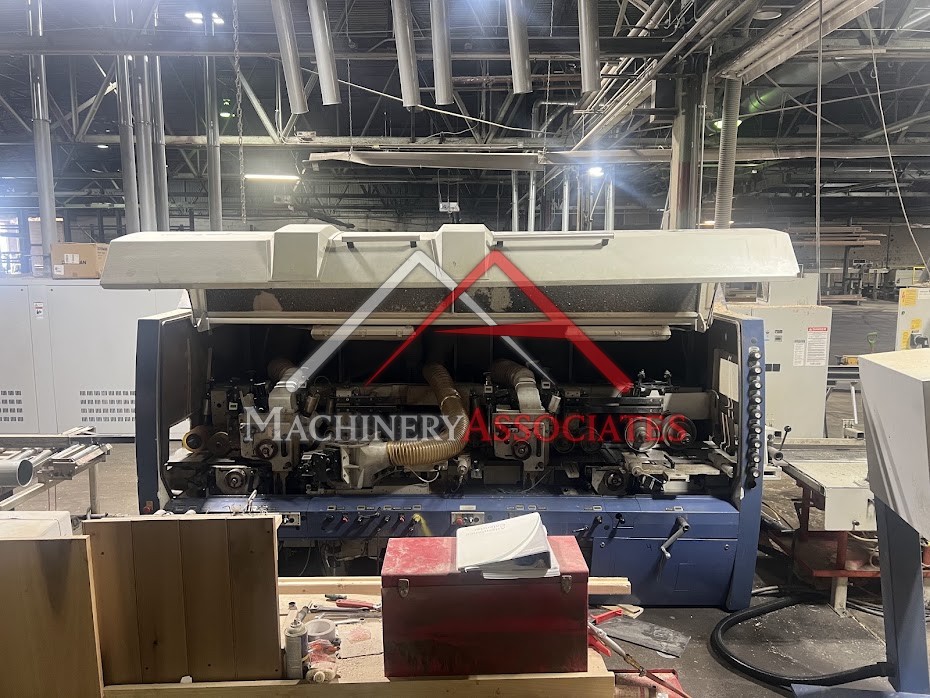

12" WEINIG HYDROMAT 2000 PLANER/MOULDER

TECHNICAL DATA:

Working width (at cutting circle dia. 5 1/2")                                              3/4" - 11 13/16"

Working height (at cutting circle dia. 5")                                                  5/16" - 6 5/16"

Spindle speed                                                                                       6000 rpm

Spindle diameter                                                                                   2 1/8"

Clamping length of horizontal and universal spindles                               12 1/2"

Clamping length of vertical spindles                                                       6 3/4

Diameter of feed rollers                                                                           5 1/2"

Width of feed rollers                                                                                2 x 2"

Width of rollers opposite left spindle                                                        1 x 2" and 1 x 5/8"

Axial adjustment of feed roller opposite left spindle                                 1 3/8"

Diameter of driven roller in outfeed table                                                 4"

Width of roller in outfeed table                                                                 8 1/4"

Pressure for pneumatic feed rollers max.                                                 87 psi

Adjustment range of straightening table and edge jointing fence, each      3/8"

Adjustment range of vertical spindles (axial)                                            3 1/8"

Adjustment range of horizontal spindles, axial                                         1 3/4"

(excluding 1st bottom spindle)

Axial adjustment range of universal spindle, working right or left              1"

(below table)

Axial adjustment range of universal spindle, working above or below        1 3/8”

(behind fence)

Setting accuracy of mechanical digital read-outs                                     0.002"

Length of infeed table                                                                            27 1/2"

TOOL CUTTING CIRCLES:*

1st bottom spindle   min.- max.                                                                5" - 7 1/8"

Vertical spindles,   min.- max.                                                                  4 3/8" - 9 7/8"

Horizontal spindles, min.- max.                                                                4 3/8" - 9 7/8"

Universal spindle,   min.- max.                                                                 4" - 8"

SPINDLE CONFIGURATION:

Electronic feed 200 ft/min          15 HP

1^st spindle below                       25 HP

2^nd spindle above                      40 HP

3^rd spindle right                         15 HP

4^th spindle left                           15 HP

5^th spindle above                       40 HP

6^th spindle below                       40 HP

Working width 300 mm (11 13/16”), Working height 160 mm (6 5/16”)

Outboard bearings for all horizontal spindles

Heavy pressure rollers from above, pneumatic

Driven rollers in the machine table

MACHINE INCLUDES THE FOLLOWING EQUIPMENT:

Short infeed table 700 mm long with 2 driven feed wheels above the table, 1 driven roller in the table,

including lateral pressure roller, spring-mounted

One driven roller in the outfeed table, hardened

Machine tables hardened and chrome (Marathon F3) plated (without infeed table)

Fences chrome (Marathon F3) plated

Waxilit pump, manual

Axial adjustment of feed roller opposite left spindle 35 mm (1 3/8”)

Weinig patented  self-cleaning  feed rollers with depth penetration limitation design, Urethane feed

wheels at the outfeed

Spindle diameter 2 1/8”

Spindle speed 6000 RPM

1 full set of spindle spacers included per number of spindles specified

Pressure rollers from above,  spring-mounted at 120 ft/min

Pressure rollers from above, pneumatic at 200 and 260 ft/min

Receding chipbreaker in front of each top spindle pneumatic instead of spring loaded

Receding chipbreaker in front of each left spindle, incl. 2 pneumatic side pressure rollers

Chip breaker in front of and after top spindle with digital read-out

Digi-Set for left and top spindles

Centralized location of lubrication points at the front side

Manual radial adjustment of top spindle

Operating voltage non-dual 460 volts, 60 cycles, 3 phase according to UL-regulations

Control cabinet with integrated operating panel separate from machine, cable length 2.5 m (8’)

ADDITIONAL EQUIPMENT:

Straight knife jointer

Can be operated via remote control when hood is closed

Automatic stone indexing on both sides included

Max. jointing width 230 mm (9 1/16") with outboard bearings

Max. jointing width 120 mm (4 3/4") without outboard bearings

• Right spindle # 3 max. tool cutting circle 163 mm (6 7/16”) for 300 mm (11 13/16”) width
• Left spindle # 4 max. tool cutting circle 163 mm (6 7/16”) for 300 mm (11 13/16”) width
• Top spindle # 2,5 , same as above for 300 mm (11 13/16”) working width
• Bottom spindles # 1,6 - Max. tool cutting circle 180 mm (7 3/32”) for 300mm (11 13/16") width

Profile jointer

 Fully automatic

Can be operated via remote control when hood is closed

Automatic stone indexing included

Profile jointer does not need to be removed when straight jointer is used

• Right spindle # 3, working height 120 mm (4 ¾”)
• Left spindle # 4, working height 120 mm (4 ¾”), for 300 mm working width
• Top spindle # 5, for working width 300 mm (11 13/6")
• Bottom spindle # 6, for working width 230 mm (9 1/6")

4-Roller-Infeed

Short infeed table 1.1 m (3’ 7”)

With 2 driven feed wheels above the table and 2 driven rollers in the table

Feed wheel diameter 220 mm (8 5/8”)

Both table rollers are easily adjusted in height

Height adjustment of table with mechanical read-out

Lateral pressure rollers, (4” diameter), pneumatic

 3 Powered rollers in the machine table, hardened

 F3 Marathon coating before and after 1^st bottom spindle

F3 Marathon coated tables and fences

Automatic waxilit pump

Outfeed table adjustable 0/0.5/1.0 mm (0/.02"/.04")

Extension of the feed roller shaft opposite left to 6”

Free wheel gear for infeed wheel (8 5/8” diameter)

Feed system tiltable 15°

• Feed tiltable up to 15°
• Clamping length 170 mm (7")
• Min. working height 30 mm (2 1/4")
• Max. working height is 70 mm (2 3/4") at 30°
• Feed height indicator with mechanical digital display
• Pneumatic pressure shoe for top spindle tiltable
• Reduced distance between feed rollers not possible
• Receding pressure rollers from above not feasible

Linear footage counter, electric with 2 counting modes (batch/total)

Memory function

To save setting values for profiles

• Spindle axis with double electronic displays
• Saving the setting values of the profile under a profile number by pressing a button
• When the profile is selected again, the double electronic displays show the setting values
• By adjusting the spindle, the displays are brought to match
• 99 storage locations

Basic equipment for Motorized Spindle Positioning (MSP), with feed beamMotorized Spindle Positioning (MSP), per spindles 2,4,5 [ATS]

Side pressure roller at the infeed table, pneumatic

Machine electrics prepared for material handling including free wheel gear

for infeed roller. Operating panel separate from machine, cable length 3.5 m (11.5')

2 Lights inside safety hood

MACHINE PRICE at INSTALL:                                                                                                             $430,893.00
