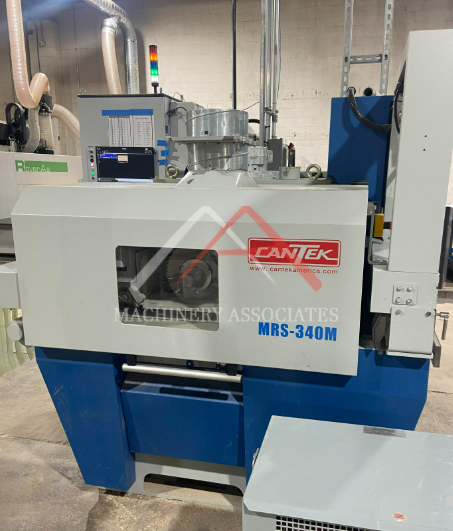

CANTEK MRS 340M 1M MULLTIBLADE GANG RIP
CANTEK MRS 340M 1M MULLTIBLADE GANG RIP. LITTLE USED AND WELL MAINTAINED. MOVABLE BLADE.
| MA ID: | RGR - 14337 |
| Price: | $42,500.00 |
| Category: |
Rip Saw - Gang (multi blade) |
| Manufacturer: | Cantek |
| Model: | MRS 340 1M |
| Year of Manufacture: | 2014 |
| Condition: | Very Good |
| Electric: | 460 Voltage 60 Cycle 3 Phase |
|
Great option on a movable blade gang rip saw. Higher yield to your material.
Working dimensions: Max. cut width 13.4", Max width 20.57" and Min. length 21". Motor: 50 HP on saw with 4,500 RPM. .5 HP height adjustment. Saw: Arbor dia. 70mm with 12" or 14" blade option. Keyed shaft with collars for fixed blades. (1) movable blade and (2) fixed. Yoke support to movable blade servo controled. Joy stick control for override. Touch screen operator controls in pedestal. Saw blades included.. Feed: 5 HP Variable speed interter drive. Pneumatic pressure (hold-down) rollers and (4) sets of antikickback fingers. Powered outfeed roller. Cast iron chain and track assembly. Auto lubrication of guides and chain. Auto shut down if oil level LOW. Note: Machine wired at 600 volts. Includes 75 KVA transformer from 600 to 460 volts. Machine in great condition ready to move.
|
|
| Shipping Footprint: | 7 (length) x 7 (width) x 7 (height) |
| Weight: | 5500 lbs |
Please confirm all data before committing to a purchase.
