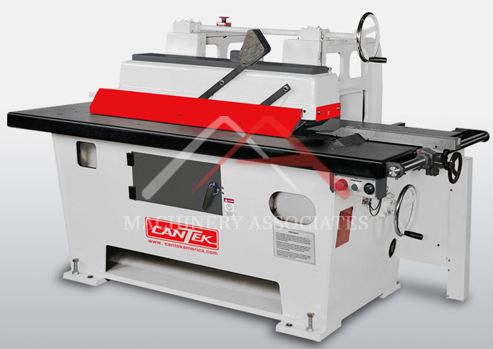

New Cantek R16 Bottom Cutting Straight Line Ripsaw

New Cantek R16 Bottom Cutting Straight Line Ripsaw

MA ID: RSL - 13300
Price: $23,700.00

Rip Saw - Single (straightline)

Manufacturer: Cantek
Model: R16
Year of Manufacture: 2023
Condition: New
Electric: 230 Voltage 60 Cycle 3 Phase
Cantek Straight Line Ripsaw


Glue joint cut length 8” to 96” 200~2440mm

Maximum sawblade diameter 14” 355”

Maximum cutting thickness 3” 75mm

Sawblade bore 2” 50.8mm

Main saw motor 15 HP

Feed motor 1.5 HP

Feed speed (variable) 36~105 FPM 11-32 m/min

Saw arbor brake system Standard

Number of pressure rolls 8 rolls

Distance from saw blade to column 18.1” 460mm

Table dimensions 69” x 35.4” 1750x900mm

Table height from floor 33.46” 850mm

Table width to left of blade 17.9” 455mm

Table width to right of blade 17.5” 445mm

Dust ports Top: 4”; Bottom: 6” Top: 100mm; Bottom: 150mm

CFM Required 1400 CFM

Shipping Footprint: 81 (length) x 65 (width) x 63 (height)
Weight: 2200 lbs
All Information including Photos and Videos are supplied by a 3rd party Source.
Please confirm all data before committing to a purchase.
*Subject to credit approval. Additional programs available.
