2019 Homag 5 AXIS CNC Router Centateq P-310

Amazing 5 AXIS Pod and Rail Machineing Center. Comes from a small shop in very good condition and lite use.

MA ID: PTP - 14058
Price: $165,000.00
Category:

Point to Point

CNC Router (5-axis)

Manufacturer: Homag
Model: P-310 BMG310/42/F/K
Year of Manufacture: 2019
Condition: Excellent
Electric: 480 Voltage 60 Cycle 3 Phase
Homag 5 AXIS CNC ROUTER P-310

Machine Description:

Max Work Piece:

4200 mm (1570 if Pendulum) Length

1350 mm Width

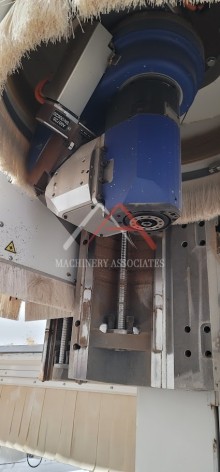

DRIVE5C/+ Spindle Specs:

12KW (16Hp) 24,000 RPM HSK 63F

Liquid Cooled

Spindle Senses Unbalanced Tooling and Reports

Programmable Dust Shroud

Programmable Air Blast

Tool Changers:

14 Position Ride Along Side

8 Position Rack Style Rear

Automatic Tool Height Device

Boring Block:

Drilling Spindle V12/H4X2Y High-Speed 7500

Grooving Saw Ø 125 mm (0°/90°)

Part Location:

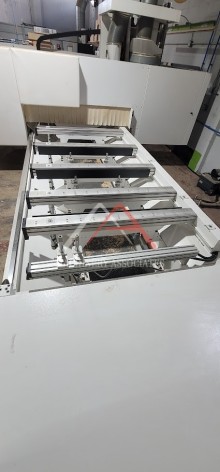

(8) Vacuum Rails for Part Placement 1350mm in Length

(24) Vacuum Pods 16 160mm by 115mm and 8 125mm by 75mm

(6) Part Lifting Rails

(2) Vacuum Pumps

WoodWOP 7.X with DXF Improt Module

WIndows 7 with Dual Processors

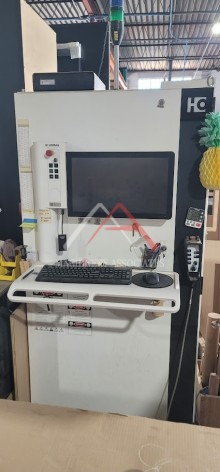

21.5 Inch Touchscreen Wide Format

Chip Conveyor

Air Conditioned Cabinet




Weight: 18000 lbs
All Information including Photos and Videos are supplied by a 3rd party Source.
Please confirm all data before committing to a purchase.
*Subject to credit approval. Additional programs available.
