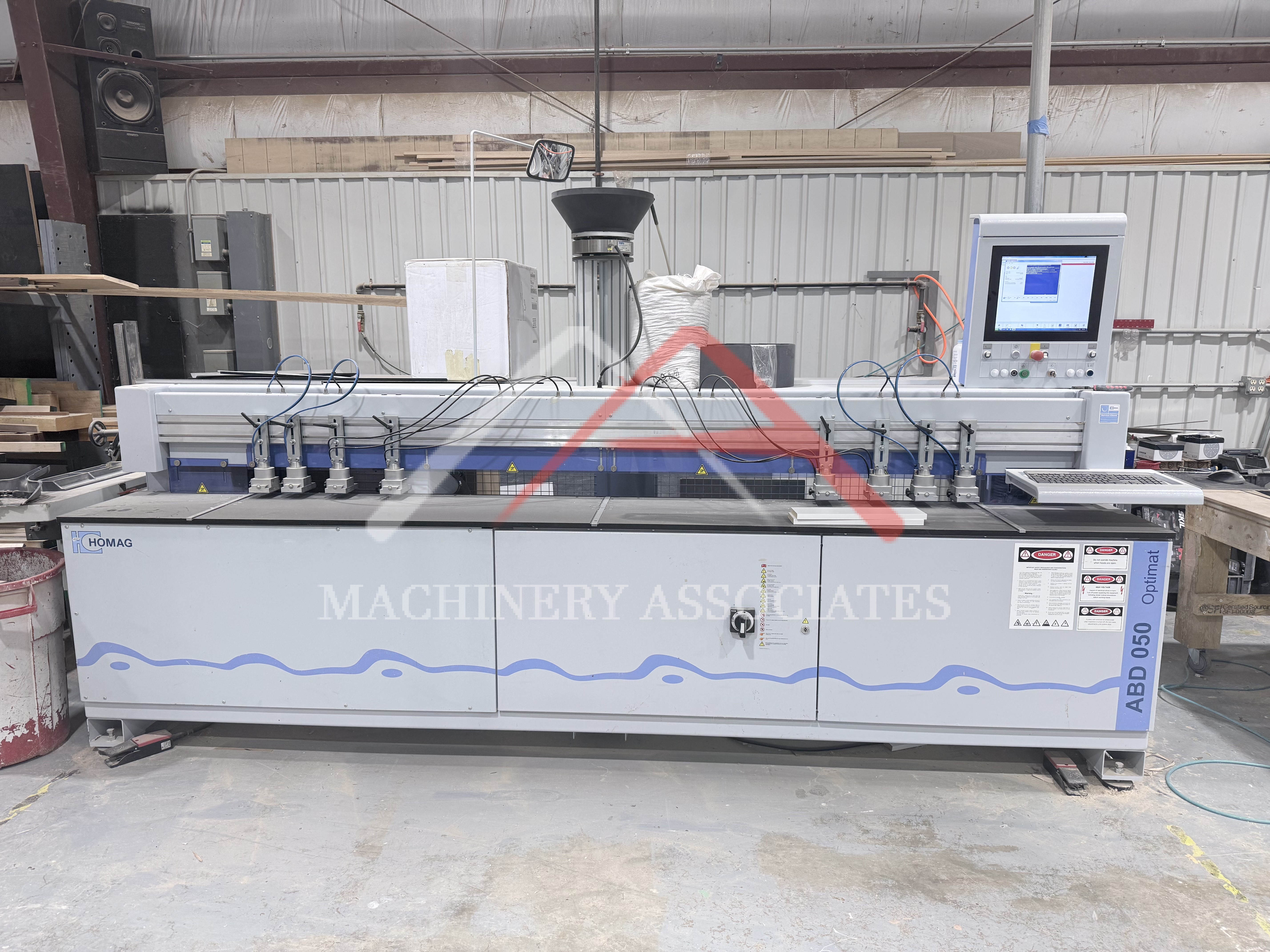

2017 Homag Optimat ABD050 Bore/Dowel Machine
Nicely kept, long table bore/dowel machine. READY TO WORK!!
| MA ID: | BGD - 14451 |
| Price: | $18,500.00 |
| Category: |
Bore/Glue/Dowel |
| Manufacturer: | Homag |
| Model: | Optimat ABD050/D/28 |
| Year of Manufacture: | 2017 |
| Condition: | Very Good |
| Electric: | 480 Voltage 60 Cycle 3 Phase |
|
Weeke Optimat ABD 050 Bore/Glue/Dowel Insertion Machine
Description: CNC dowel inserter for horizontal drilling and dowel inserting Engineered to spray glue or water (has been used with water) Features a Sorbtech™ main beam to minimize vibration Pneumatic control of center stop and right and left fences Open end table for machining longer parts Vibrating hopper for automatic feeding of dowels Larger 17" display and Woodwop™ programming
Technical Specs: Maximum part length; 2800 mm / approx. 110" Minimum part length; 20 mm / approx. 0.79" Maximum part width; 800 mm / approx. 31.5" Minimum part width; 20mm / approx. 0.79" Maximum part thickness; 60 mm / approx. 2.36" Minimum part thickness; 10 mm / approx. 0.39" Horizontal drilling aggregate; (1) spindle, 7,500 rpm Standard dowel dimensions; 8 x 30 mm / 8 x 35 mm Drill shank diameter ; 10 mm Total length of drill bit; 70 mm |
|
| Shipping Footprint: | 14' (length) x 5' (width) x 80" (height) |
| Weight: | 2000 lbs |
Please confirm all data before committing to a purchase.
*Subject to credit approval. Additional programs available.
