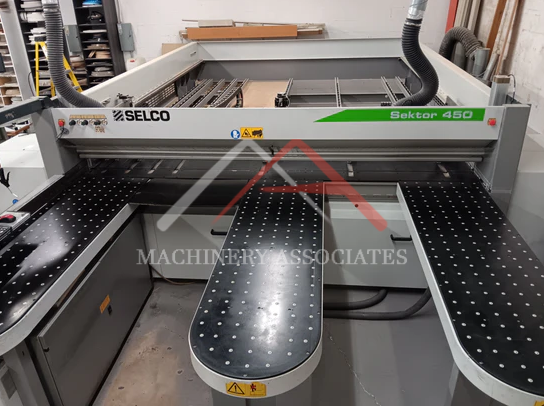

Biesse Selco Sektor 450 CNC Panel Saw

MA ID: PNC - 14020
Price: $28,000.00

Panel Saw - CNC

Manufacturer: Biesse
Model: Selco Sektor 450
Year of Manufacture: 2012
Condition: Very Good
Electric: multi Voltage 60 Cycle 3 Phase
Biesse CNC Panel Saw


Maximum length of cut: 3200 mm

Maximum pusher stroke: 3200 mm

Maximum saw blade projection: 75 mm

Maximum gripper opening: 65 mm

Height of work table: 985 mm

Main Saw Motor: 9 kW (12 HP)

Scoring Saw Motor: 2.6 kW (3.6 HP)

QUICK CHANGE system for both main and scoring saw blade in front squaring area

Main saw blade diameter 320 mm

Scoring saw diameter 200 mm (trapezoidal tooth)

Pneumatic grippers (at 50 - 150 - 360 - 1530 - 2280 - 3030 mm)

Air generator for max. 6 air tables

Rounded air table 2050 x 650 mm with square support - left hand side

PC control unit complete with keyboard, mouse, 19” analogue flat panel monitor (wide) and Windows operating system

Saw Carriage: Brushless

Saw Carriage Speed: 1-120 m/min (1-394 ft/min)

Pusher Traverse: Brushless

Pusher Speed: 60 m/min (197 ft/min)

Air Extraction Flow: 2.620 cfm, 30 m/sec

Air Consumption: 4,6 cfm

Weight: 8000 lbs
All Information including Photos and Videos are supplied by a 3rd party Source.
Please confirm all data before committing to a purchase.
*Subject to credit approval. Additional programs available.
