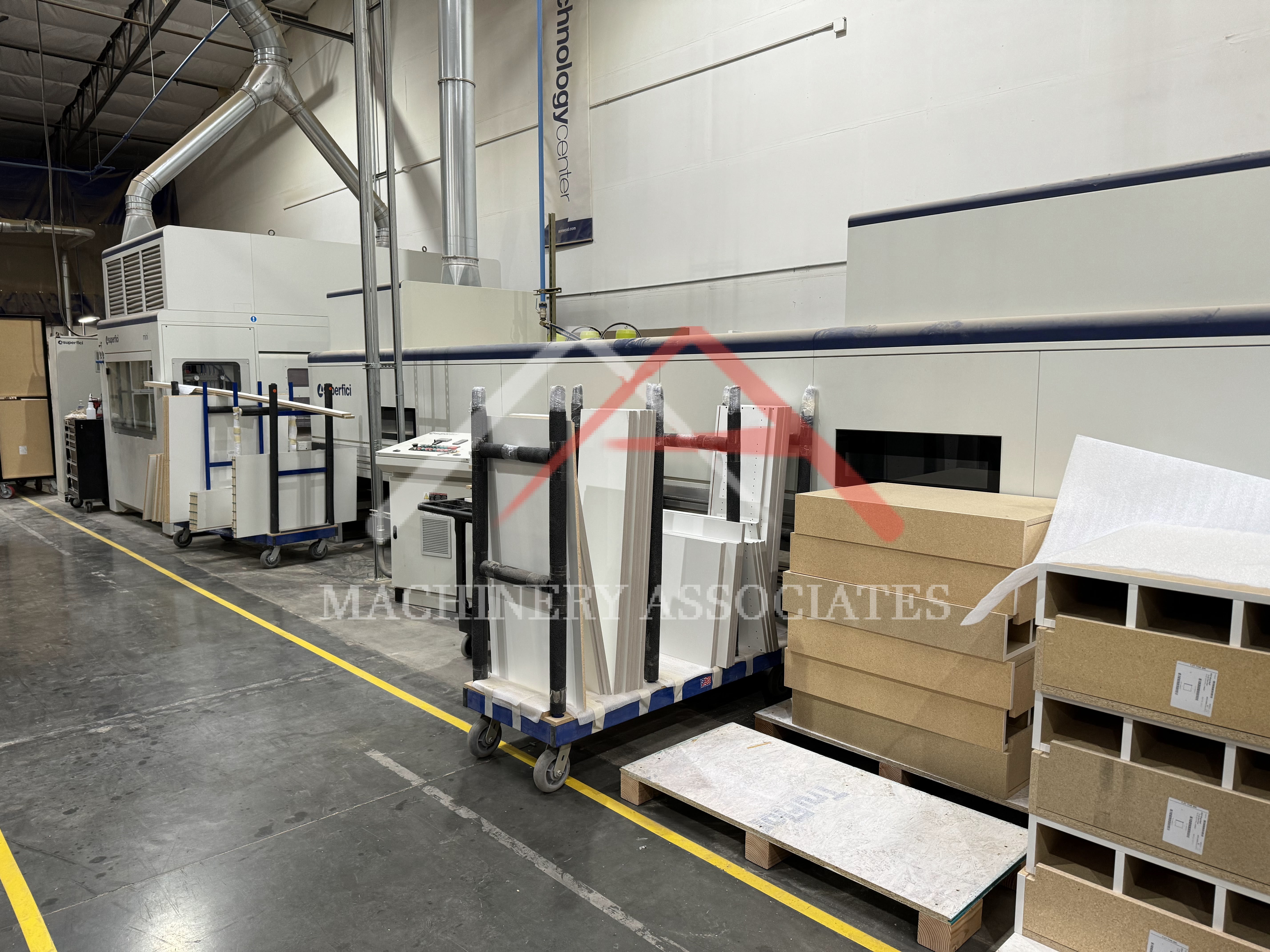

2020 Superfici Mini Plus Automatic Finishing Line

Clearly a Coating Beast. Ready to Finish Your Parts!

MA ID: FLA - 14011
Price: $175,000.00
Category:

Systems & Automated Lines

Manufacturer: Superfici
Model: Mini Plus W/ Laminar 7.5 Dryer & TT1 Belt
Year of Manufacture: 2020
Condition: Very Good
Electric: 480 Voltage 60 Cycle 3 Phase
Superfici Mini P

Machine Description:

Working Width 1300 mm

Max. Work-Piece Thickness 120 mm

Working Table Height 900 +/- 20 mm

Feed Speed 1-3 m/min Compressed Air Consumption approx. 1800 Nl/min.
(With 4 airmix guns)

Exhaust Air Volume 8000 m3/H

Infeed Roller Conveyor Length 676 mm

Outfeed Roller Conveyor Length 707 mm

Total Machine Length 3533 mm

Software upgrade with HMI for the Control of the Automatic
Sequence of the Color Change

10” HMI Touchscreen

In-feed and Out-feed Driven Roller Conveyor System

Central Belt Conveyor with Protective Paper Device

4 Air-assisted Airless Guns complete, (Kremlin AVX)

3 High Pressure Pumps, to Feed Simultaneously 4 Spray Guns,

3 Fluid Pressure Regulators

2 Recirculation Valves for 2 of the Pumps

3 Manual L Ported Valves

1 Flush Pump, 10-25 Kremlin

1 Superfici Pump Stand

3 "Closed Loop" Material Circuits (6 hoses) for 3 Different Coatings

1 Open End Circuit (1 hose) For Cleaning Agent (flush)

Laminar Dryer 7.5M

Coveyor Driven Belt TT1 7500mm

Air System for Fume Removal

40KW Electiral Heating Coils for Drying


Weight: 15000 lbs
All Information including Photos and Videos are supplied by a 3rd party Source.
Please confirm all data before committing to a purchase.
*Subject to credit approval. Additional programs available.
