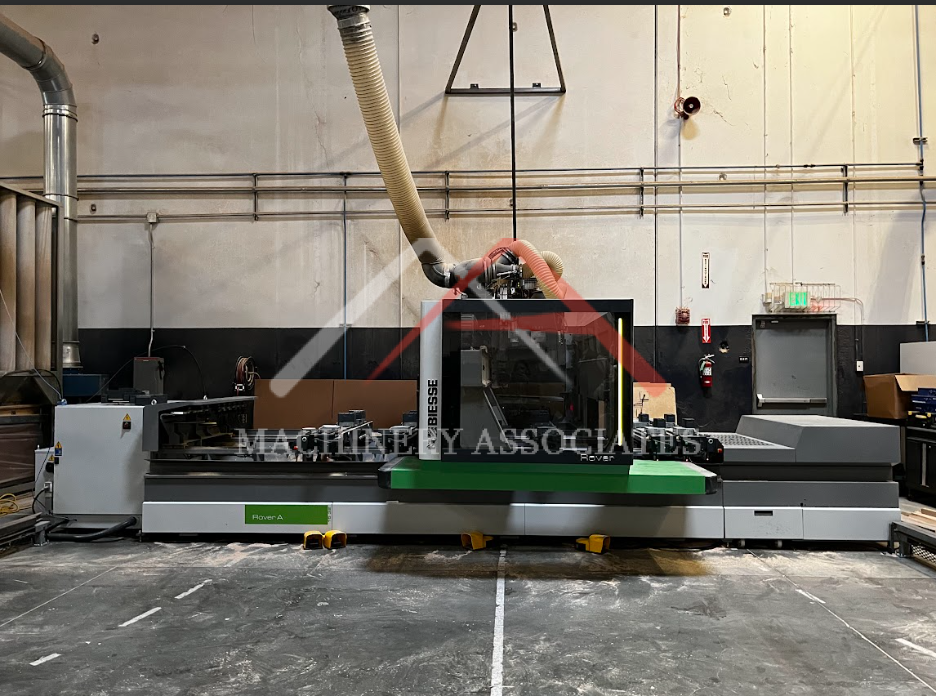

2019 Rover A Pod 5 AXIS CNC

Fully Optioned. Nothing left out ready to demo.

MA ID: RC5 - 13855
Status: Sold
Price: Call For Price
Category:

CNC Router (5-axis)

Point to Point

Manufacturer: Biesse
Model: Rover A 1532
Year of Manufacture: 2019
Condition: Very Good
Electric: Multi Voltage 60 Cycle 3 Phase
Biesse 5 Axis Router

CALL FOR AVAILABILITY



Machine Description:

17.4 Hp Liquid Cooled HSK 63F 5 AXIS Main Spindle 24,000 RPM Max

NC Controlled 12 Position Dust Hood

C AXIS 360 Degree Non-stop Rotation

C AXIS Rotation Speed: 16 RPM

B AXIS 360 Degree Non-stop Rotation

Maximum Angle Undercut 10 Degrees

B axis rotation speed: 16 RPM

BH29 Boring Head With Automatic Lubrication

Inverter Controlled Programmable Speed Up to 6000 RPM

2 Saw Blades for Grooving 1 X 1 Y

17 Vertical Spindles 11 X 6 Y

5 Horizontal Double Output Spindle 3 X 2 Y

12 Position Rack Tool Changer

13 Position Revolving Tool Changer

Tool Length Presetter

Panel Supports (NC Controled and Positioned)

6 Aluminum Panel Supports with EPS Electronic Positioning System

24 Sliding Bases

8 Vacuum Connection Ports for Special Jigs (Quick Connect) 4 LH 4 RH

4 Panel Lifting Supports

Vacuum 300 m3/h at 60 Hz

BSolid Software - 5 AXIS Machining

BPad Wireless Remote Keypad

BTouch Monitor

Belt Conveyor For Chip Removal

MultiTap Transformer

Centralized Automatic Lubrication

Light Barrier Safety System

Working Fields

X = 3140 mm;

Y= 1 560 mm for 4-AXIS Unit, 1 570 mm for 5-AXIS Unit;

Z= 200 mm with H74 mm Modules,

Z = 245 mm with H29 mm Modules


Weight: 15000 lbs
All Information including Photos and Videos are supplied by a 3rd party Source.
Please confirm all data before committing to a purchase.
*Subject to credit approval. Additional programs available.
