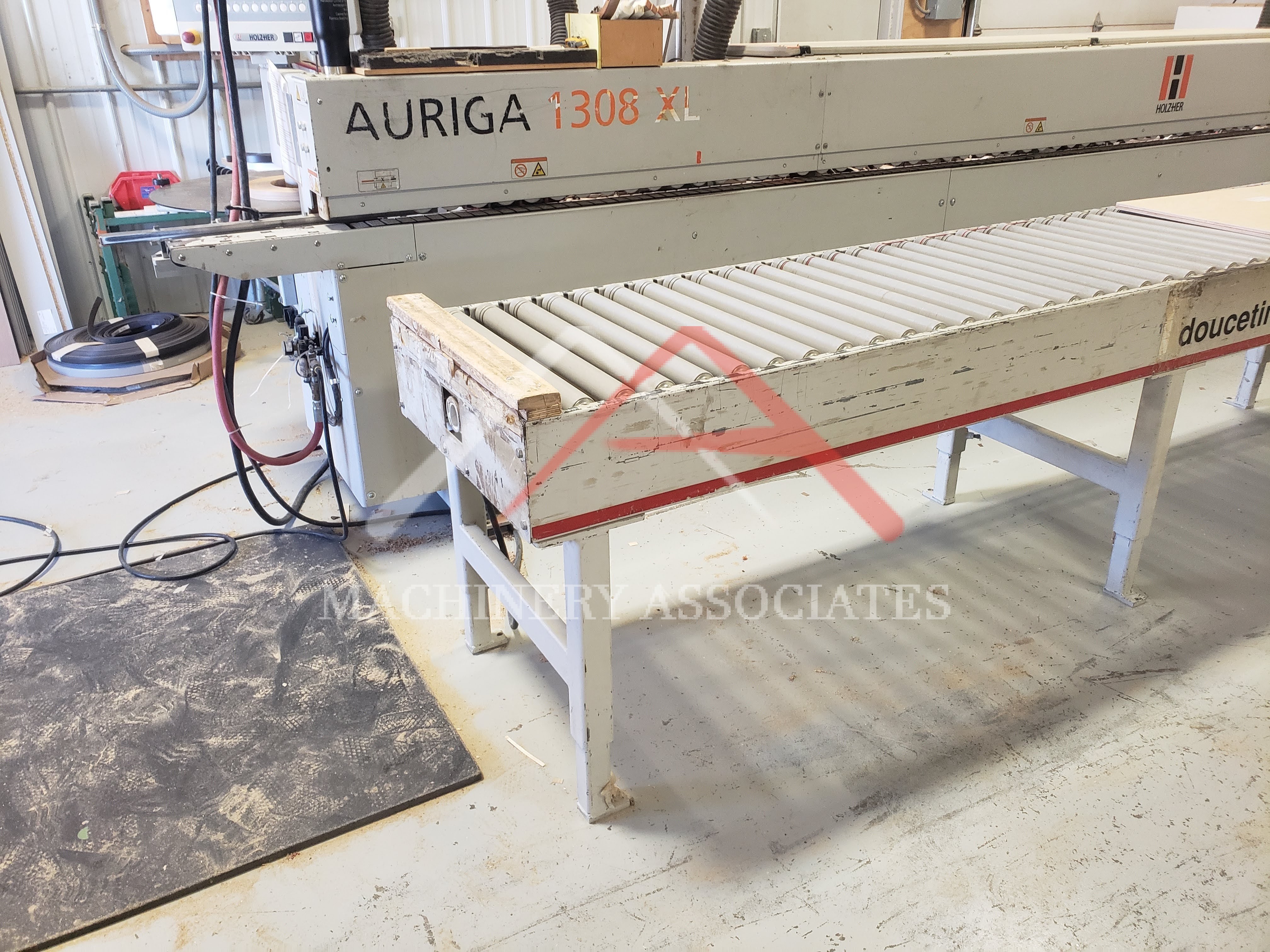

2013 HolzHer 1308 XL Edgebander with Doucet XPRS-24 Return Conveyor
HolzHer 1308XL Edgebander with Pre Mill + Return Conveyor
| MA ID: | EBS - 13849 |
| Status: | Sold |
| Price: | $39,900.00 |
| Category: |
Edgebanders -Single Sided |
| Manufacturer: | HolzHer |
| Model: | 1308-XL |
| Year of Manufacture: | 2013 |
| Condition: | Good |
| Electric: | 230 Voltage 60 Cycle 3 Phase |
|
Holz-Her 1308 Auto WIth PRE- MILL, Servo, Doucet Return
CALL FOR AVAILABILITY
Holz-Her 1308 Auto With PRE- MILL, Servo adjusting and Doucet Return Conveyor 230 Three phase power Rapid change for glue color, PUR and EVA Fully capable for PUR, and EVA glue. This machine is loaded. Diamond tooling on Pre Mill, top and bottom trimmer and corner rounder Heat up time 2.5 minutes, Servo controls on the following: Pressure beam height Top and bottom trimmer 3mm radius scraper Auto tilt on end trim Programmable corner rounder Pneumatic finish scraper ______________ Magazine for coil and strips (1903) Pre-Milling (1801) Glu Jet hybrid technology (GJ301) Pressure Section (1912-3P) 2 Motor End Trimming (1918P) Top and Bottom Trimming (1827P) Corner Rounding (1832) Scraping (1929) Finish Scraper (1964) Buffing (1940) Electronic Control Panel (PPC 221) Conveyor speed 10 m/min.. Edge thickness 0, 4 - 6 mm w/ standard tooling Panel thickness 6 - 60 mm. One (1) centrally located hand - wheel, for raising and lowering of the top pressure beam. Rigid work piece support extending 380 mm Manual central lubrication of the transport chain Doucet XPRS-24 Return Conveyor 24" wide receiving module and return conveyor Power requirement is 110 volts - single phase - 15 amps service. PVC Rollers are individually driven by welded urethane belts |
|
| Shipping Footprint: | 16' (length) x 4' (width) x 5' (height) |
| Weight: | 3100 lbs |
Please confirm all data before committing to a purchase.
*Subject to credit approval. Additional programs available.
