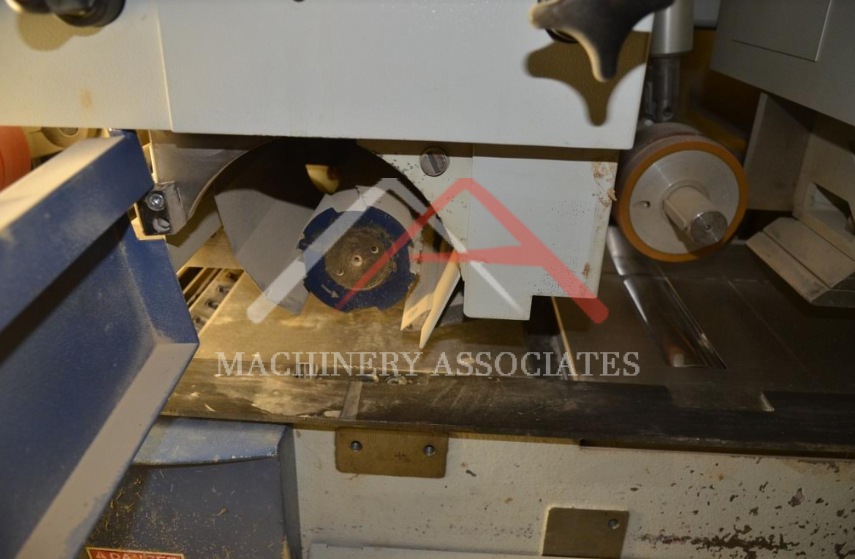

WEINIG POWERMAT 1000/018 MOULDER FEED THROUGH PACKAGE
2011 WEINIG POWERMAT 1000/018 MOULDER FEED THROUGH PACKAGE. GREAT SHAPE 600 VOLTS,
|MA ID:||MFT - 13319|
Moulder - Feed Through
|Year of Manufacture:||2011|
|Electric:||600 Voltage 60 Cycle 3 Phase|
GREAT LATE MODEL 2011 POWERMAT PACKAGE WITH PROFILE GRINDER, POCMS STAND, TEMPLATE MAKER AND TOOLING.
Working cap.: 9-1/16” x 4-3/4”
Motors: B-15 HP, R-15 HP, L-15 HP, T-30 HP, T- 40 HP and B-30 HP.
Spindles/Tool Holders: Spindle # 40 MM at 8,000 RPM; HSK tool holders 2-6 12,000 RPM. Motorized tool positioning for tools 2-6 Radial and Axial.
CNC: WEINIG Power Com "Touch Screen” AND PLUS software with tool data storage 300 profiles, profile data and tool monitoring. Led readouts to all spindles/tool holders; including chipbreaker’s and holddown’s. Modem for external diagnostics.
Feed: Variable inverter drive speed with 7.5 HP motor with speeds from 18-118 FPM.
Infeed/Tables: 2M (6'-6”) infeed table with side pressure roller, AUTO table lubrication and chromed tables and fences.
Includes: Free standing pedestal, Tool Room Link, (30 HEADS) and manuals.
OPTICONTROL POWERLOCK ELECTRONIC MEASURING
Cutting Circle Dia.: 0-300 mm, Tool Length: 0-310, Max. Measuring Width: 310 mm, Non-Contact measuring of tool dimensions radius and height and their indication on the electronic digital displays, Device is equipped with: projector for optical recording 20:1 of measured values, electronic digital displays for tool radius and tool height, tool carrier for PowerLock tools, prepared for PC connection.
Profile grinder R960 HSK with Performance package
Working cap. Length 9-3/8"; cutting circle 4" to 11-1/2"
Hydraulic grinding wheel clamping.
Grinding wheel speed 1,500-3,000 RPM's
Grinding spindle 1.5 HP
Cooling system with hoses 0.5 HP pump and 13 gal. tank
Grinding clearance angles: Radial at back 10-30°, Lateral in manual 0-20°: straight knife 60°.
Performance package: Motorized positioning of grinding wheel angles - Side clearance, motorized advance to the knife and pneumatic adjustment for back clearance angle. Machine light
HSK Package: Tool holder with manual clamping; pivoting right and left for head alignment: Radial table clamping: max. tool width of 9-1/2" (240mm) and max. tool dia. of 9-7/8" (250mm); HSK tool adaptor for conventional tool grinding.
Hopper Feeder EM-11
Working dimensions: L 14" to 10', W 3/4" to 9" and Thick 1/2" to 2-3/4". Max weight per load 100 lbs. with fill height 14".
Motor: 2 HP with feed up to 82FPM and 60 cycles per minute capacity. Hydraulically operated.
AutoTemp Model 1622 Template maker -- for moulder templates.
Please confirm all data before committing to a purchase.
*Subject to credit approval. Additional programs available.
