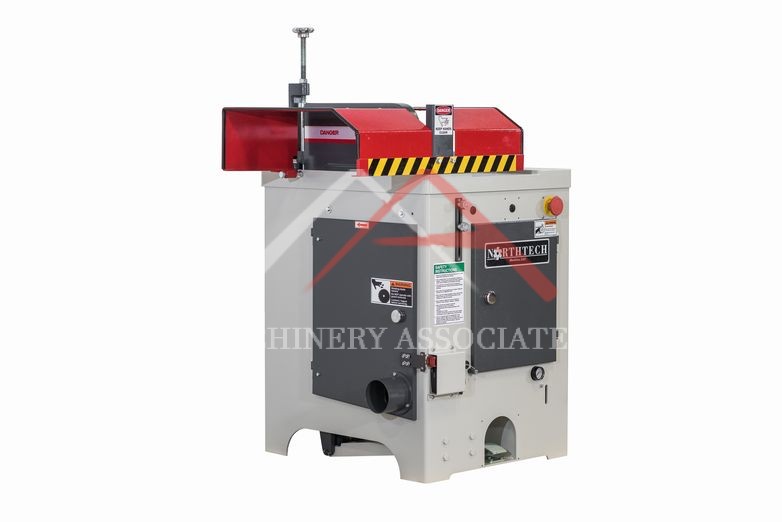

Northtech 20in Upcut Saw

20" 10hp upcut saw right or left side blade location available. Machinery Associates is a full line Northtech Dealer.

MA ID: SCM - 13282
Price: Call For Price
Category:

Cutoff/Miter/Toe Notchers

Manufacturer: Northtech
Model: CS20-1032
Condition: New
Electric: 230 Voltage 60 Cycle 3 Phase
Northtech Upcut Saw

Specifications:



10HP motor with 24V magnetic controls

20” blade size with Tungsten Carbide tipped blade included

1” Saw arbor diameter

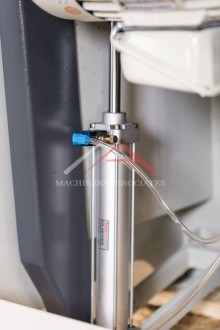

Pneumatic Cycle operation, foot pedal control, 40 cycles pm

Quick access to adjust blade stroke.

Safety interlock for blade access

Dust Collection – 1x  4” port @ 450cfm

Cast Iron Table  20” x 26”

2” x 25” Adjustable Fence

Pass-Line = 36''

Max. Width = 17-1/4''

Max. Thickness = 5-7/8''

Arbor Rpm = 2700 Rpm

Hold Down Style = T Clamp

FLR Included = Filter, Lubricator, Regulator

Recommended CFM = 3/8'' Supply Line @ 90 Psi

Emergency Stop = Push Button

Safety Feature = Safety Interlock Switch

Worktable Dims. = 21-1/2'' x 67''

Decibel Rating = 75 dB

Warranty is one year parts
All machines are tested stateside prior to shipment providing trouble free start up
Cut capacity with Factory Fence: 1’’ x 14.5’’, 2’’ x 14’’, 3’’ x 13’’, 4’’ x 12’’, 5’’ x 11’’

Cut capacity without Factory Fence: 1’’ x 15.5’’, 2’’ x 15-1/8’’, 3’’ x 14-3/8’’, 4’’ x 13.5’’, 5-3/4’’ x 9-1/2’’


Shipping Footprint: 48 (length) x 40 (width) x 55 (height)
Weight: 900 lbs
All Information including Photos and Videos are supplied by a 3rd party Source.
Please confirm all data before committing to a purchase.
*Subject to credit approval. Additional programs available.
