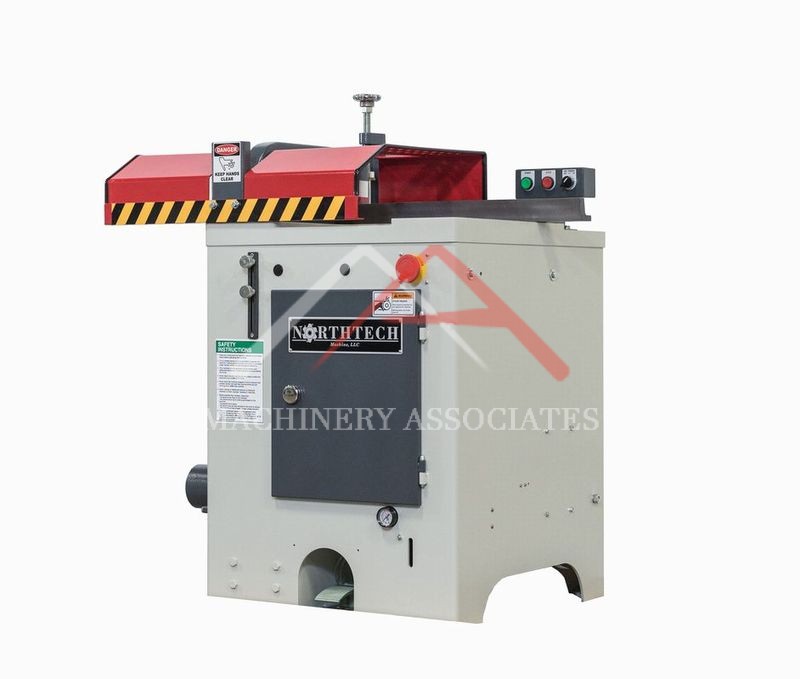

Northtech 18in Up Cut Saw

10hp 18" upcut saw with 1" arbor

MA ID: SCM - 13280
Price: Call For Price
Category:

Cutoff/Miter/Toe Notchers

Manufacturer: Northtech
Model: NT-UCS18
Year of Manufacture: 2023
Condition: New
Electric: 230 Voltage 60 Cycle 3 Phase
Northtech Upcut Saw

Specifications:



10HP motor with 24V magnetic controls

18” Blade with 120T Carbide tipped blade included

1” Saw arbor diameter

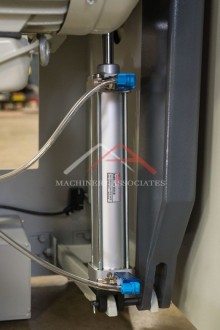

Pneumatic Cycle operation, foot pedal controlled, 45 cycles pm

Table size  26” x  27.25” machined steel

Max cutting capacity: 1'' x 13-1/2'',  2" x 12", 3" x 11", 4" x 10"

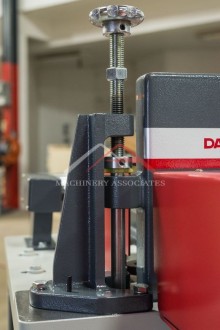

Quick access to adjust blade stroke

Adjustable 2” x 25” fence

Min. Length = 14'' from Blade to Guard Edge

Max. Width = 1'' x 13''

Max. Thickness = 5''

Dust Collection = 4'' port @ 450 CFM

Hold Down Style = T Clamp

FLR Included = Filter, Lubricator, Regulator

Emergency Stop = Push Button

Safety Feature = Safety Interlock Switch

Guarding = Full Guard with Clear View

Decible Rating = 78 dB

Warranty is one year parts

All machines are tested stateside prior to shipment providing trouble free start up

OPTIONS

8’ infeed and 8’ outfeed with fence, legs, (2)gravity flip stops
16’ infeed and 16’ outfeed with fence, legs (4) sets, (2) gravity flip stops
Custom infeed/outfeed rollers up to 40’
(1) Gravity flip stop
Safety interlock for blade access
Double palm button actuation in place of foot pedal
Rigid stop


Shipping Footprint: 40 (length) x 48 (width) x 55 (height)
Weight: 900 lbs
