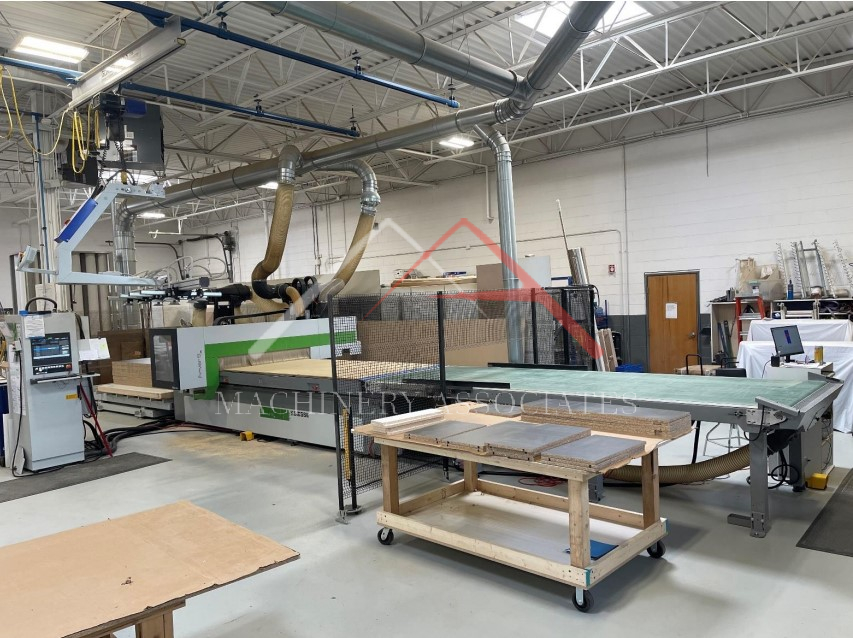

2017 Biesse Rover S 1536 Nested Based Work Cell

Machine comes complete with packing . Unloading , freight and travel by tech are extra.

MA ID: RC3 - 12944
Price: $142,000.00
Category:

CNC Router (3-axis)

Manufacturer: Biesse
Model: Rover S 1536
Year of Manufacture: 2017
Condition: Excellent
Electric: Multi Voltage
2017 Rover S Nested Cell

UNDER AGREEMENT



Machine Description:

Scissor Lift Automatic Loading System (Includes Vacuum Cups on Gantry for Loading)

Biesse Standard Pusher System on Gantry to Unload Machined Parts

Offload Conveyer Takes Completed Sheets to Worker

Precision Matrix Type Table 1532mm x 3811mm (5x12)
Table Accepts Standard Vacuum Pods

RH Reference Stops (3 front, 2 rear, 2 side)
Automatic Lubrication System

HSD 17.7 HP Spindle w/HSK Tool Holders 12 Position ATC

Prearranged for "C" Axis

Flange Ring to Accept Aggregates

BH18 Boring Block with 18 Vertical Spindles (11) in X (7) in Y

Tool Presetter (Touch-off)

4-way air nozzle at bit

(2) Becker Vacuum Pumps

Air Conditioned Control Cabinet
BH 660 NC Control

CPU Intel(R) Core i5 8 GB RAM memory 500 GB (SSHD) hard disk or superior Dedicated graphic card 19" LCD Keyboard Mouse DVD reader USB ports

Ethernet card for network connection to an office PC

Biesseworks Software w/B-Nest Module Software Included
B-Solid (Base) Software Included


Weight: 20000 lbs
All Information including Photos and Videos are supplied by a 3rd party Source.
Please confirm all data before committing to a purchase.
*Subject to credit approval. Additional programs available.
