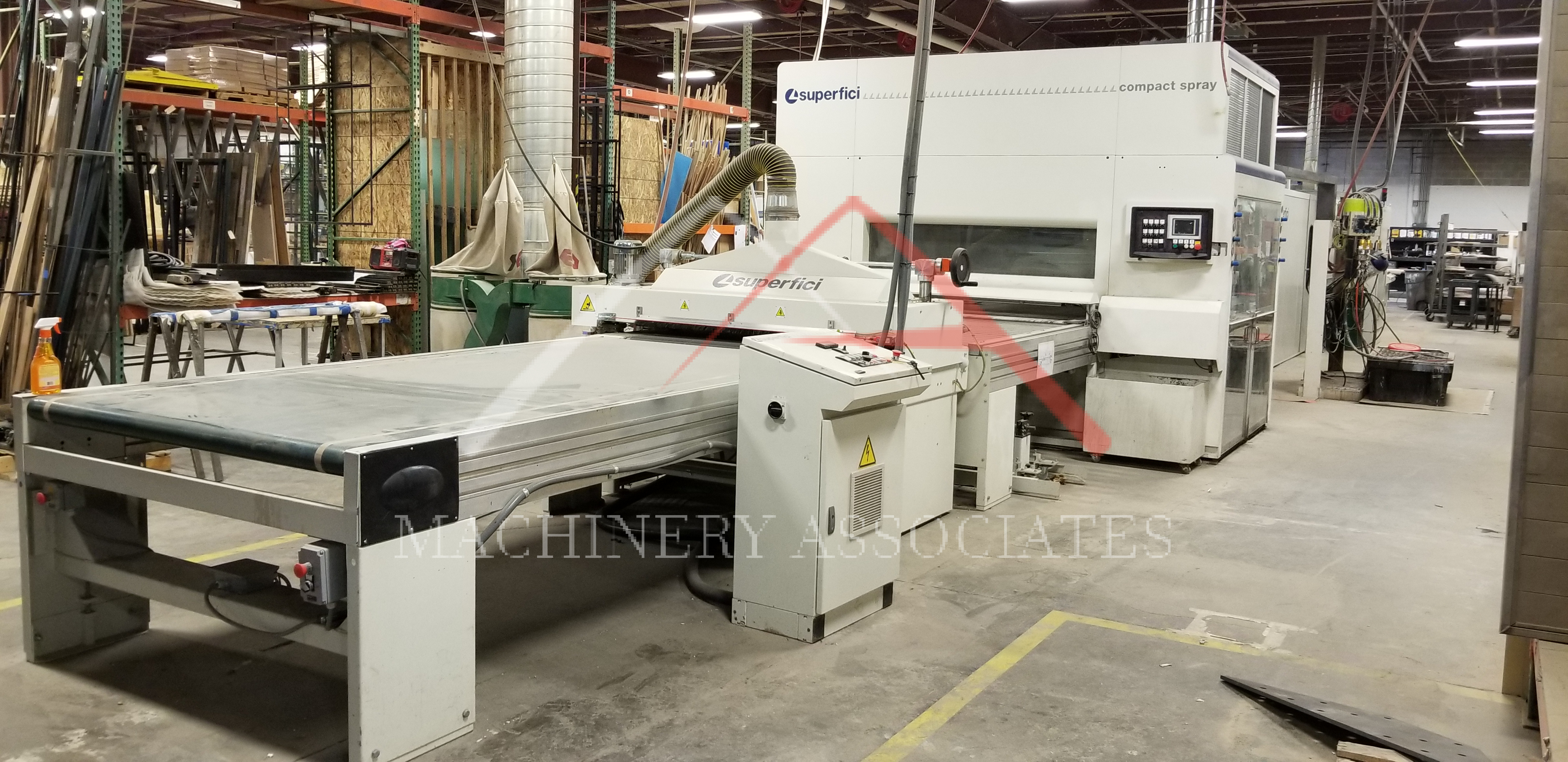

SUPERFICI HYBRID WATER BASE FINISHING LINE

THIS IS A VERY UNIQUE FINISHING LINE FOR WATER BASE FINISHING MATERIALS AND THE SPRAY BOOTH IS HYBRID WITH BOTH PAPER AND RECOVERY BELTS.

MA ID:	FLA - 11593
Status:	Sold
Price:	$299,000.00
Category:	Systems & Automated Lines Ovens & Curing
Manufacturer:	Superfici
Model:	WATER BASE COMPACT 3 Hy
Year of Manufacture:	2016
Condition:	Very Good
Electric:	480 Voltage 60 Cycle 3 Phase
HYBRID SPRAYING MACHINE COMPACT 3 Hy for water base finishing martial. GENERAL EQUIPMENT FEATURES OF THIS SPRAY LINE. Pass line height: 900 mm (35 - 7/16) Operating side: RH as viewed from inlet of line. Work piece Dimensions (Approx) Min - Max. Length: 12" - 16' Min - Max. Width: 1" - 51" Min - Max. Thickness: 1/8" - 3" Max. Weight: 10# per Square Foot CONNECTIONS: Voltage: 480 V/ 3 Ph / Hz + earth Standard distribution system: TN-S ( "Y" configuration ground, floating ground is unacceptable) Compressed air: 6 bars (90 PSI) Thermal connection ( required): electric coils (option : hot water, steam, oil, gas. Speeds: Mechanical speed: 2 - 6 m/min. Avg. production speed: 3 - 4 m/min Product: Passage doors, related components, etc. Coating: TBD These line specifications supersede the individual descriptions in the case of any disagreements. THE SYSTEM DOES CONSIST OF THE FOLLOWING: 1. Belt Conveyor Type TT1 3000 MM Conveyor length 3000 mm. 2. Upper Brushing Machine type FV/SISAL/ 1 -SFA Execution The machine ensures cleaning of the surfaces of sanded panels before lacquering 3. COMPACT 3 Hy spraying machine Dual Belt system paper /recovery. Double Arm Reciprocation Sprayer Central belt conveyor (paper and recovery) in the spray area in special material, to work with lacquers and stains and a patented combined lacquer recovery system for recovery and cleaning of the conveyor or a paper belt that can be throne away at the end of the production run, Both types of belts extends beyond the spray booth at in-feed and out-feed. 4. "CONTIVERT" VERTICAL BELT TRAY DRYER MOD.ETC1-5500 with 6 Floor vertical belt tray flash off oven. The "Contivert" Vertical Belt Tray Dryer Mod. ETC1 is conceived for flash off or short drying cycles from 3 to 12 minutes. Tray length 5500 mm useful length 5200 mm Machine length 7400 mm 5. Air Blade Dryer 6000 mm. Jet Air Oven with 3 IR finishing. The system is arranged for the installation onto cross bar conveyors. Recirculating ventilation system with high performance axial fan which conveys air into a special-design collecting hood allowing a uniform distribution with minimum losses to the air blades. Thanks to the particular design of the hood the air is blown over the work pieces and afterwards it is drawn sideways by the fan through wide openings. Air is partially re-circulated and partially ex pulsed expuised as exhaust. the system is automatically balanced with fresh air; both exhaust air and fresh air flows can be adjusted. Two heating coils suitable for water, steam, or diathermic oil, compete with pneumatic regulating valve and automatic temperature control device. 6. Out feed belt conveyor Type TT1 3000 mm. Conveyor length 3000 mm. PLEASE CONTACT US TO HELP YOU UNDERSTAND THE FUNCTION OF THIS SYSTEM TO USE BOTH PAPER BELT OR RECOVERY UNIT.
Rigger:	Required on selling end

All Information including Photos and Videos are supplied by a 3rd party Source.
Please confirm all data before committing to a purchase.
*Subject to credit approval. Additional programs available.
