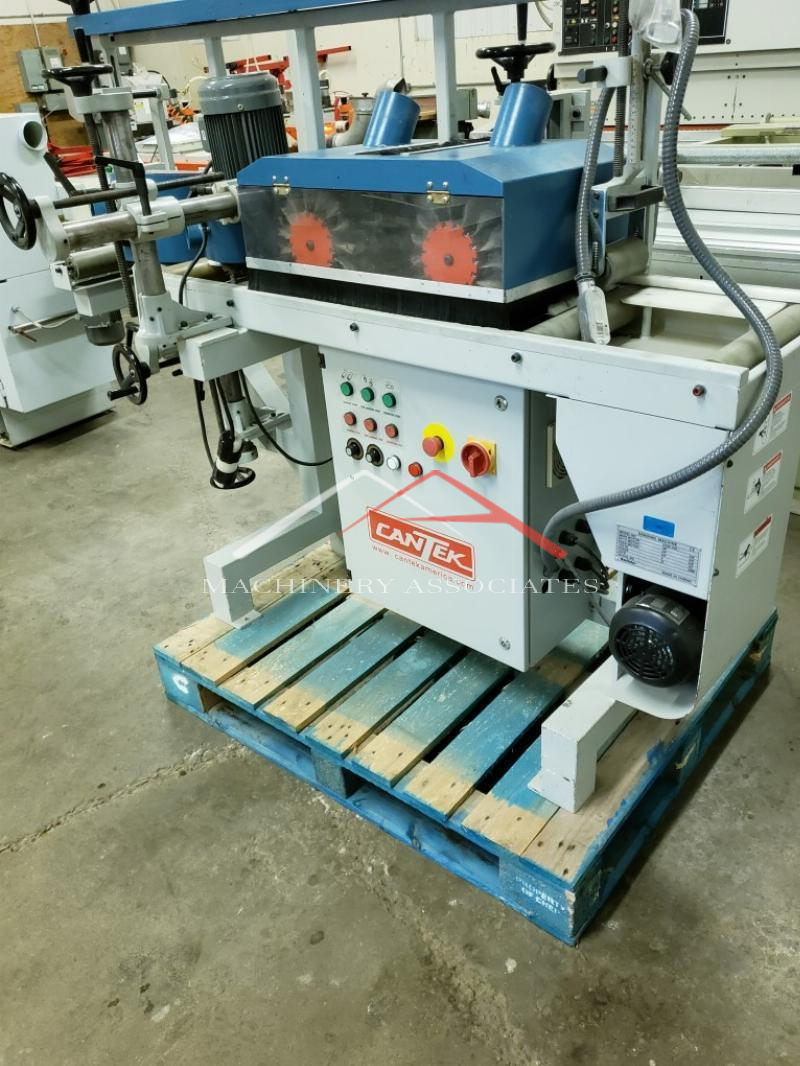

CANTEK LINEAL PROFILE BRUSH SANDER

MA ID: SPM - 11358
Status: Sold
Price: $8,700.00
Category:

Profile/Moulding
Manufacturer: Cantek
Model: LBS300-5 PROFILE SANDER
Year of Manufacture: 2013
Condition: Very Good
Electric: 460 Voltage 60 Cycle 3 Phase

Capable of sanding linear profiled material on 3 sides
The Main Frame is fabricated of heavy steel plate and ribbed to minimize vibration and deflection.
Centralized Control Panel for operator convenience. Clearly Identified & colour coded push buttons simplifying setup & operation
Variable Speed Adjustment by Inverter VFDs to all Brush Sanding Heads (200 to 1200 RPM)
(2) Sets of Top Brushing Sanding Heads with working height adjusted by handwheel and
can be set on an angle
(1) Left Side Brush Sanding Head is adjustable up/down, in/out and can be set on an angle
(1) Right Side Brush Sanding Head which can be adjusted up/down and in and out and can be
set on an angle
(1) Additional Left Side Sanding Head is adjustable up/down, in/out, and can be set on an angle
Top Press Rolls Working Height adjusted by hand wheel.
Brushing head consists of cleaning brush units and abrasive cloth units. The dovetail pocket design allows for easy abrasive/brush replacement.
Comes with (1) set of abrasives and brushes for each head.(Grit of the Sanding Head to be determined by you as desired)
The Abrasive Sanding Strips are available 100, 120, 180, 240, 320 or 400 grit as desired (an example idea is 240 grit before painting & 320 grit for sealer sanding)

SPECIFICATIONS:
Max. Working Width: 11"
Max. Working height: 4"
Min. work-pieces length: 33"
Min. work-pieces thickness: 3/8"
Feed speed (Variable): 6.5 to 30 FPM
Speed of Sanding Heads: 200 to 1200 RPM
Top Brush Head Motors: (2) 3/4 HP
Left Brush Head Motor: 1/2 HP
Right Brush Head Motor: 1/2 HP
Left (Angling) Brush Head Motor: 1/2 HP
Conveyor motor: 1/4 HP
All Information including Photos and Videos are supplied by a 3rd party Source.
Please confirm all data before committing to a purchase.
*Subject to credit approval. Additional programs available.
