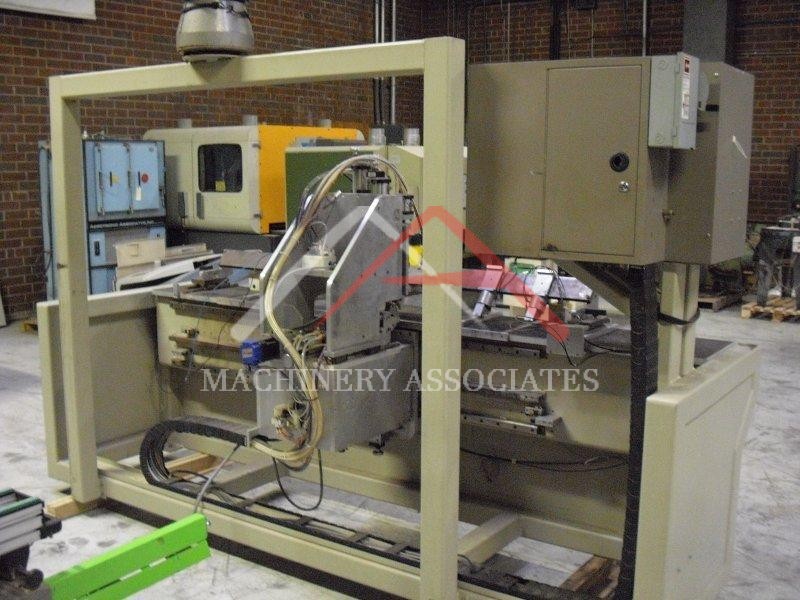

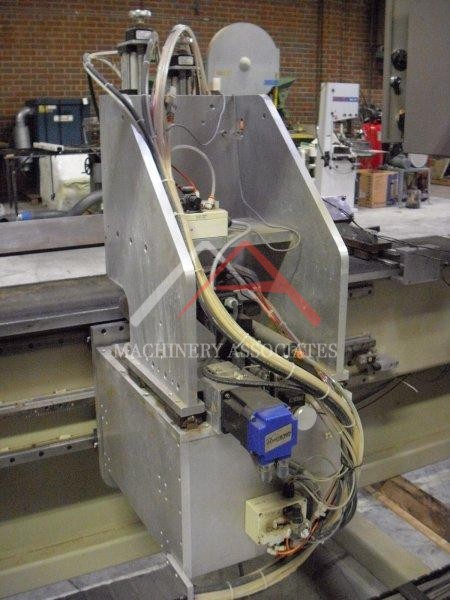

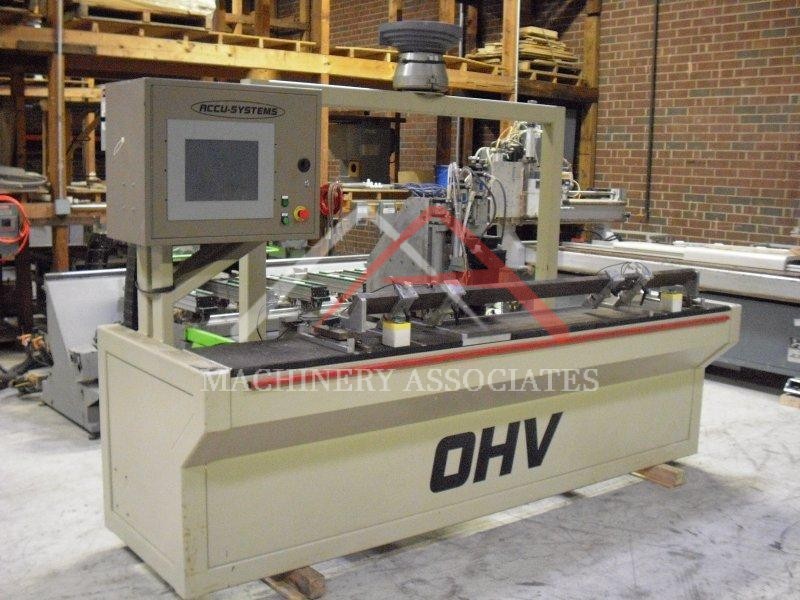

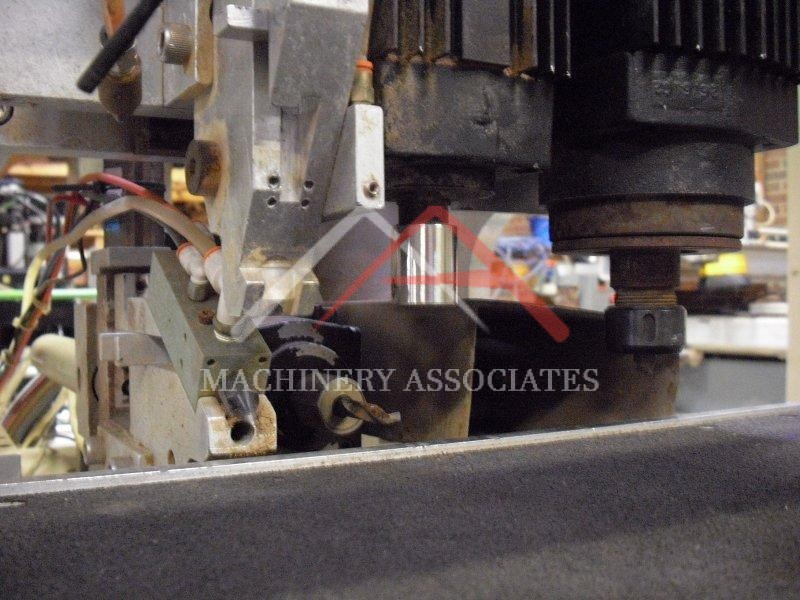

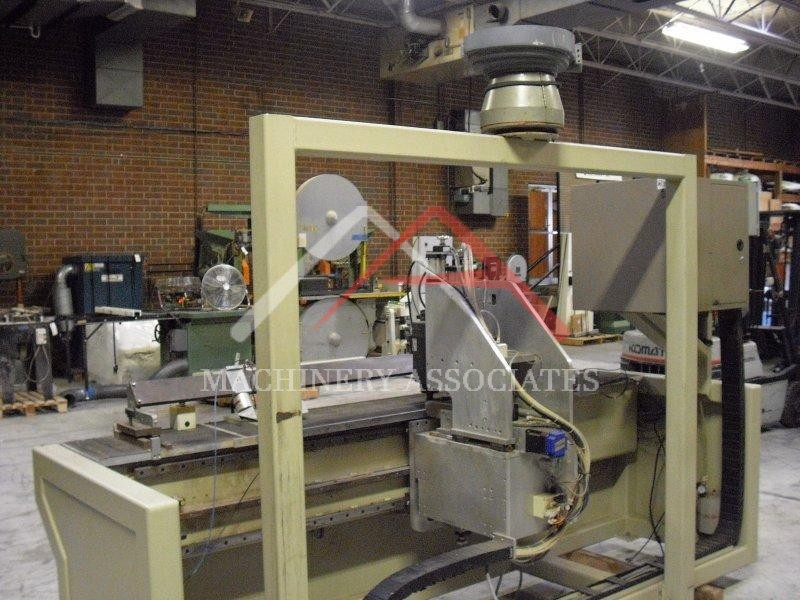

ACCU-SYSTEMS OHV-HP OVERHEAD HORIZONTAL & VERTICAL CNC BORE, GLUE, ROUTE, AND DOWEL MACHINE
MA ID: | BGD - 8983 |
Status: | Sold |
Price: | $6,500.00 |
Category: |
Bore/Glue/Dowel |
Manufacturer: | Accu-Systems |
Model: | OHV-HP |
Year of Manufacture: | 2003 |
Condition: | Fair |
Electric: | 230 Voltage 60 Cycle 3 Phase |
ACCU-SYSTEMS OHV-HP OVERHEAD HORIZONTAL & VERTICAL CNC BORE, GLUE, ROUTE, AND DOWEL MACHINE SN:016-03-OHV-HVLV2AASRS, (2003), (208-230/60/3 electrics), CS-955-AP General Specifications: - CNC machining center that bores, routes, glues, and inserts dowels - 78” working length x 8” working width x 2” working thickness - (1) 2 HP horizontal drilling unit - (1) horizontal glue & doweling unit - (1) 2 HP vertical drilling unit - (1) 4 HP vertical router - 8" capacity from the edge of the work-piece for the vertical stations - (2) individual work zones with (4) pneumatic hold-down clamps - Rack & pinion X-Axis Drive & rotary screw in the Y-axis - THK Linear Guides for all axis movements - Overhead dowel hopper - Sealed injecting system injects glue or water with minimum maintenance - “Protrusionator” dowel inserter allows for adjustment of dowel protrusion - 15" color touch-screen control - 10 CFM air requirements - Weighs approx. 3,500 lbs. - Currently missing computer and drive for the vertical router
|
|
Shipping Footprint: | 11' (length) x 4' (width) x 8' (height) |
Weight: | 4000 lbs |
All Information including Photos and Videos are supplied by a 3rd party Source.
Please confirm all data before committing to a purchase.
