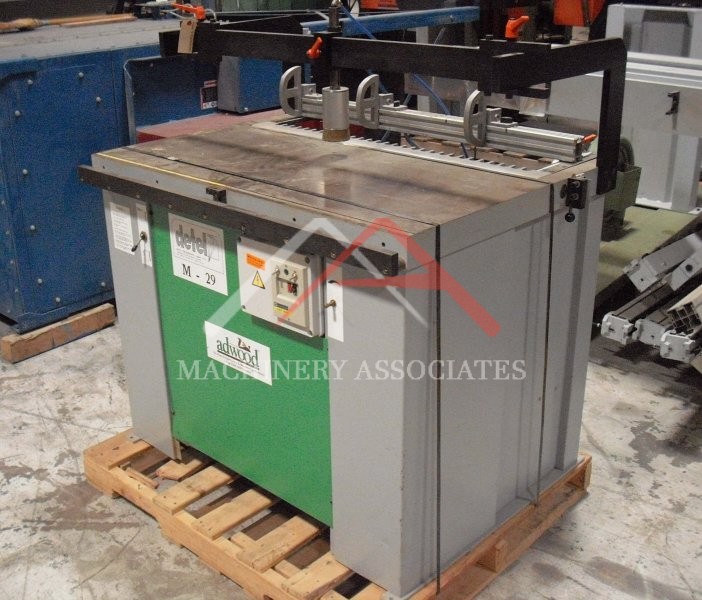

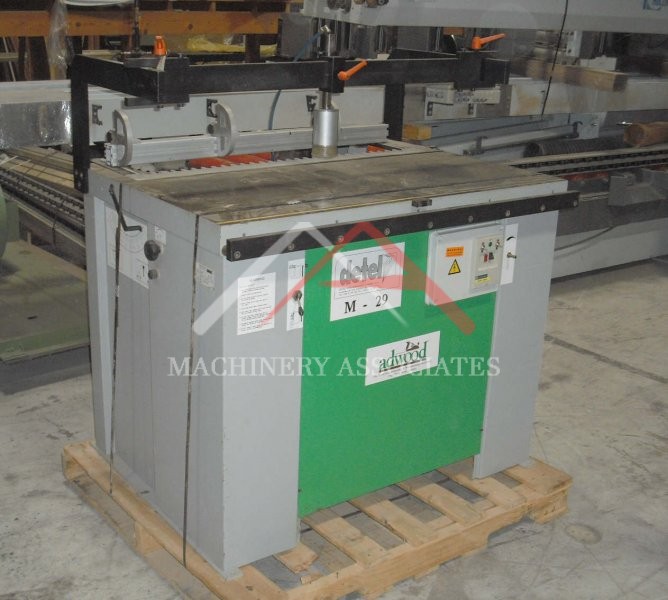

DETEL M-29, 32MM HORIZONTAL & VERTICAL CONSTRUCTION BORING MACHINE
| MA ID: | BL - 8982 |
| Status: | Sold |
| Price: | $3,850.00 |
| Category: |
Boring - 32 mm |
| Manufacturer: | Detel |
| Model: | M-29 |
| Condition: | Excellent |
| Electric: | 220 Voltage 60 Cycle 3 Phase |
|

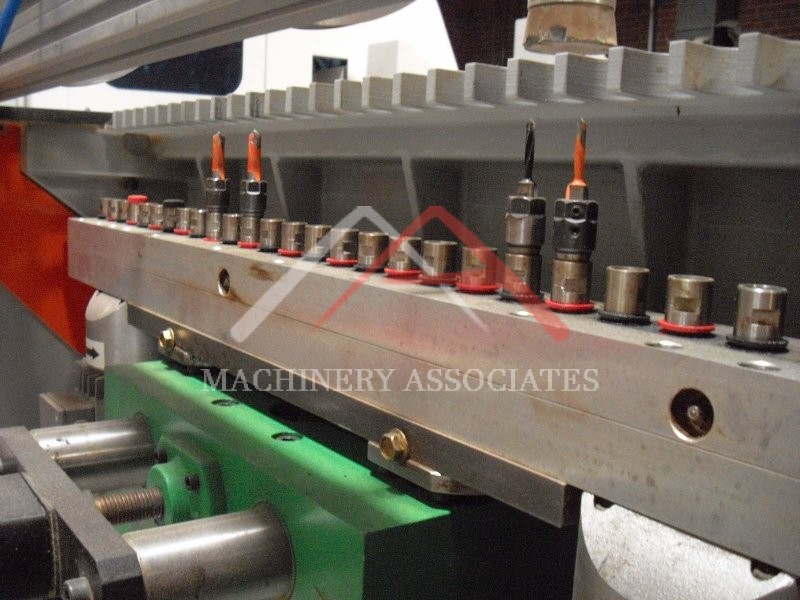

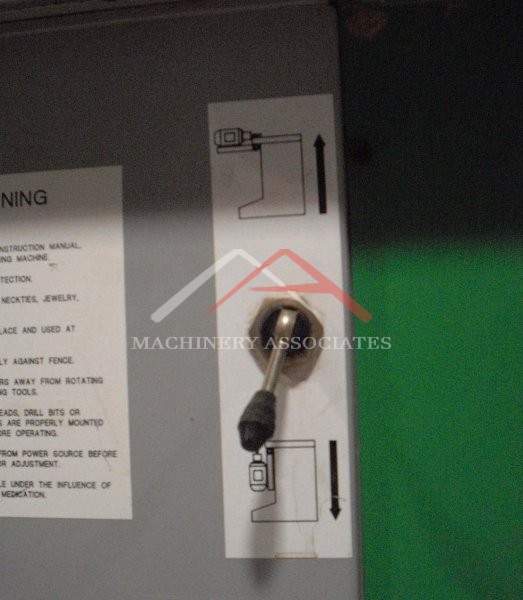

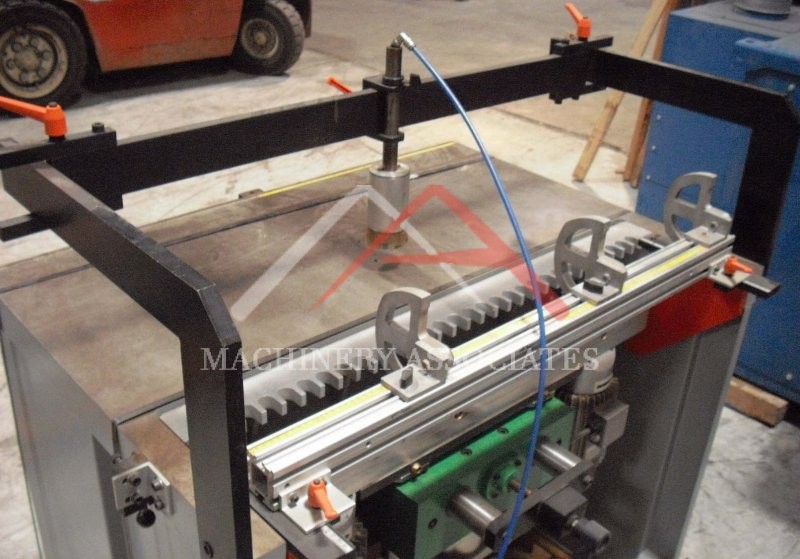

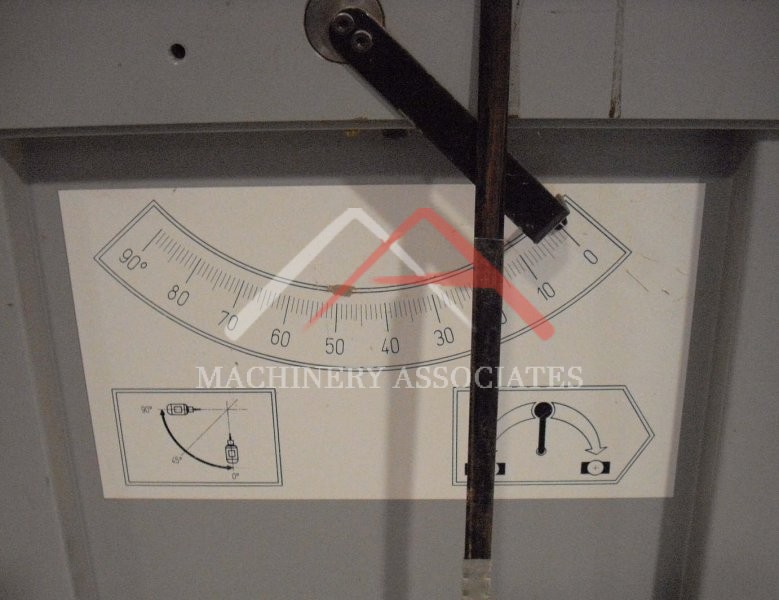

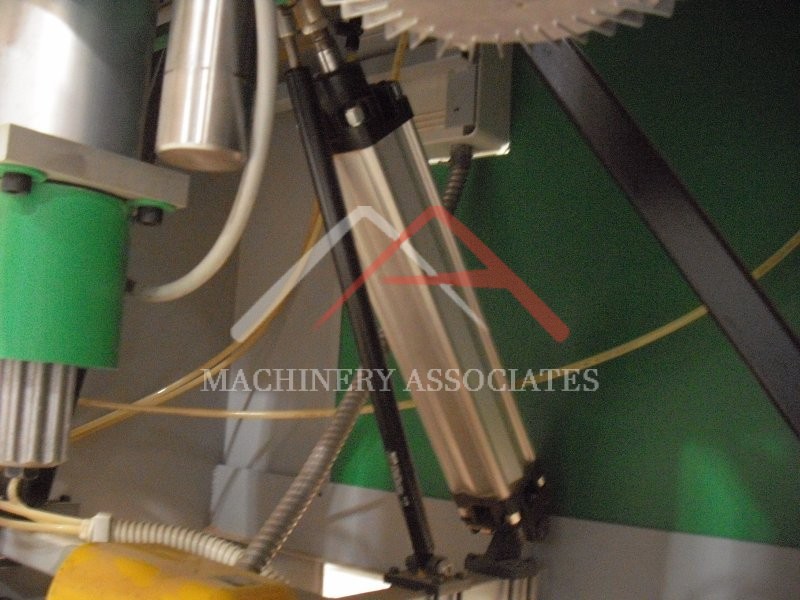

DETEL M-29, 32MM HORIZONTAL & VERTICAL CONSTRUCTION BORING MACHINE S/N:03-768-98, (220/60/3 electrics), S-4086 General Specifications: - Designed for dowel construction elements - 29-spindle boring head on 32mm centers bores from below work-piece - (2) 2 HP, 220/460/60/3 spindle motors - Spindle assembly pneumatically tilts to hor/vert positions via switch - Spindle assembly can be locked at various boring angles - Screw shank boring bits, (left-hand & right-hand) - 44-1/2" x 32" table with adjustable pneumatic clamp - Adustable fence, (front to back) with (3) adjustable swing stops - Adjustable boring spindle assembly with mechanical digital readout - Adjustable boring depth with variable boring stroke speed - 32 mm position pin for additional boring line - Pneumatic foot-pedal cycle actuation - 4' x 3' x 52" approx. overall dimensions - Weighs approx. 900 lbs.
|
|
| Shipping Footprint: | 4' (length) x 3' (width) x 4-1/2' (height) |
| Weight: | 1000 lbs |
