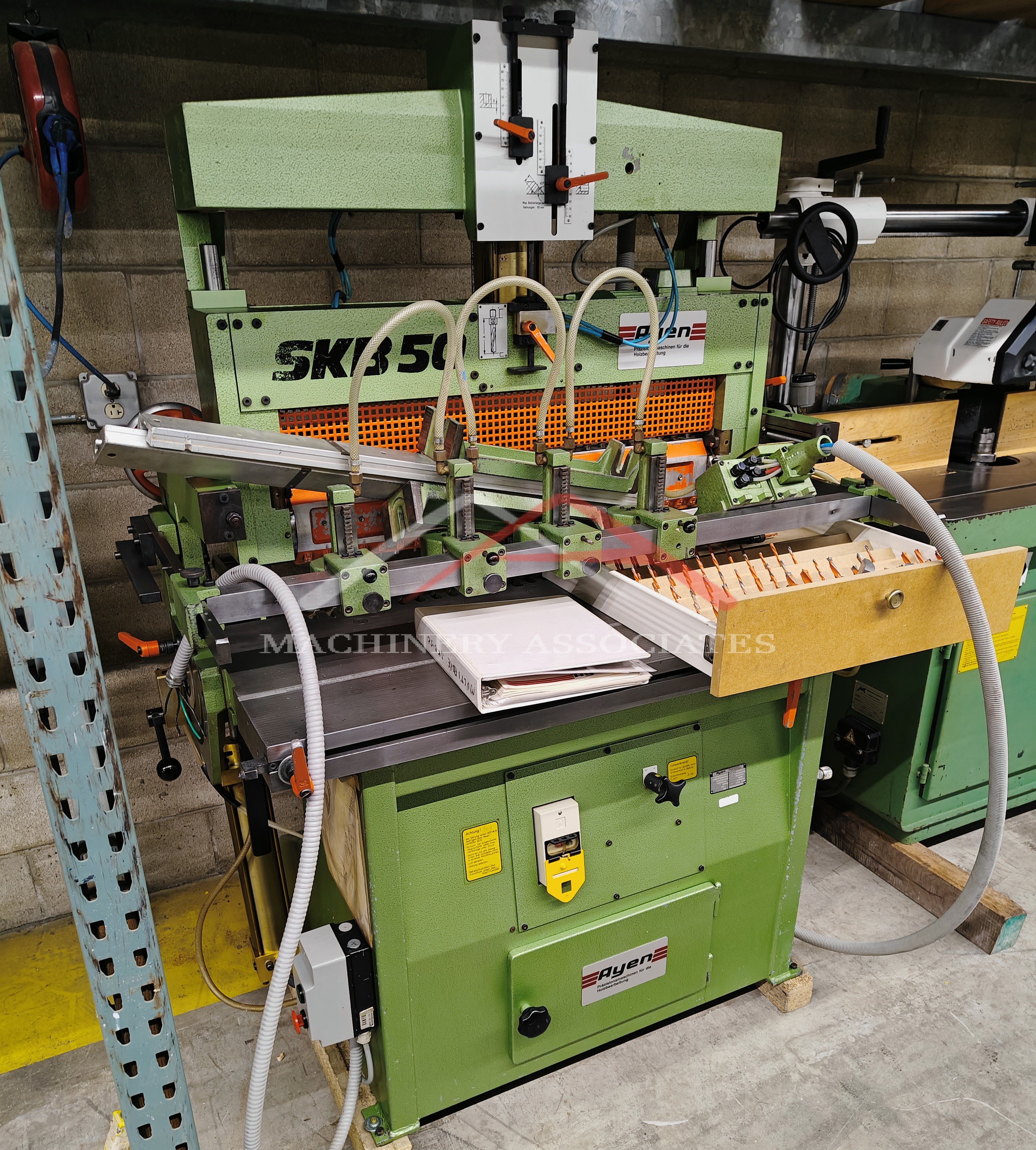

Ayen SKB-50 Boring Machine

The most popular and respected boring machine, with the fastest change over.

MA ID: BL - 13847
Price: $6,000.00
Category:

Boring - 32 mm

Manufacturer: Ayen
Model: SKB-50
Year of Manufacture: 1987
Condition: Very Good
Electric: 575 Voltage 60 Cycle 3 Phase
Ayen Boring Machine

CALL FOR AVAILABILITY



Specifications:

50-Spindles

(2) swivel heads with (25) spindles each

0° - 90° drilling with a positive stop at 45°

50-Spindle swivel head assembly converts quickly into (2) 25-spindle heads for double line boring

5-1/8" min. distance between heads when line boring

3 HP motor at 3,450 RPM

39" panel width cap. with a 30-1/4" drilling width

(2) 39" Fences with flip-stops

(4) pneumatic "quick set" hold-down clamps

Foot pedal control for drilling cycle/head positioning

Drill bits

Operators manual


Shipping Footprint: 5 (length) x 4 (width) x 7 (height)
Weight: 1500 lbs
All Information including Photos and Videos are supplied by a 3rd party Source.
Please confirm all data before committing to a purchase.
*Subject to credit approval. Additional programs available.
