Used Takisawa Engine lathe Model TSL-1000D

MA ID: LA - 8607
Status: Sold
Price: $4,500.00
Category:

Lathes

Manufacturer: Other manufacturer
Model: TSL-1000D
Condition: Good

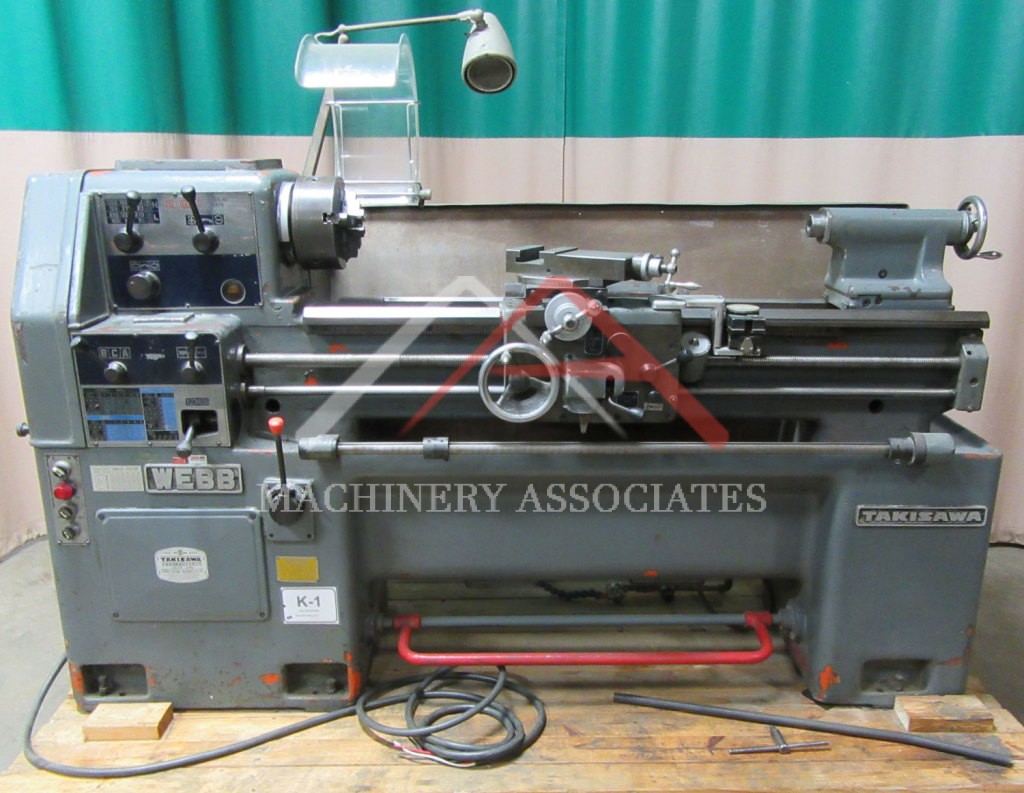

Used Takisawa Engine lathe Model TSL-1000D.
Specs

- Swing over bed: 360mm (14-18)
- Height of center: 180mm (7)
- Swing over cross slide: 210mm (8-1/4)
- Swing over bed: 400mm (16)
- Distance between centers: 1000mm (40)
- Length of bed: 1810mm (71)
- Width of bed: 275mm (10-13/16)
- Floor to work center: 1055mm (41-1/2)
- Hole thru spindle: 35mm (1-3/8)
- Center taper: MT 3
- Spindle taper: MT 5
- Spindle nose: ASA A1-5
- Tailstock spindle taper: MT 3
- Spindle speeds: 6 from 83-1800 RPM
- Feeds: 36
- Range of feeds: 0.05-3.60 mm (0.0020-0.1417)
- Cross feeds: of long.
- Inch threads: 31; range: 2-36 tpi
- Metric threads: 18; range: 0.5-9mm

Dimensions:80" x 36" x47"H
Weight:3000 lbs


Shipping Footprint: 86 (length) x 46 (width) x (height)
Weight: 2650 lbs
All Information including Photos and Videos are supplied by a 3rd party Source.
Please confirm all data before committing to a purchase.
*Subject to credit approval. Additional programs available.
