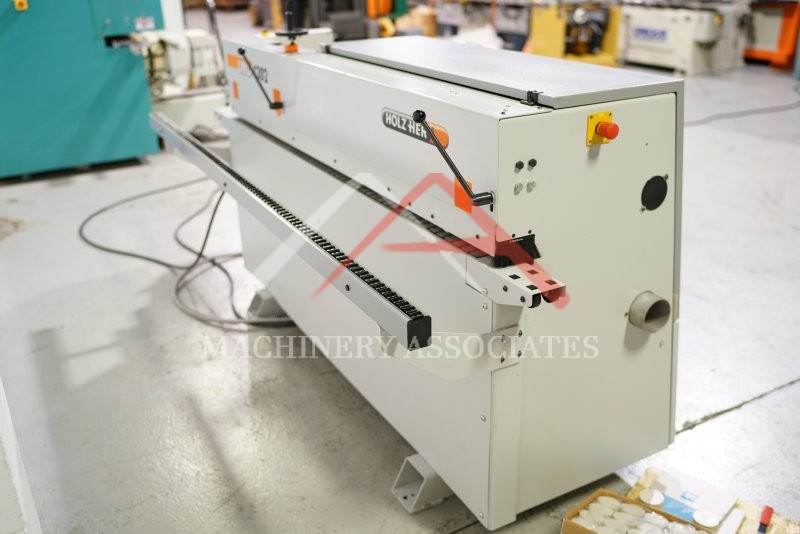

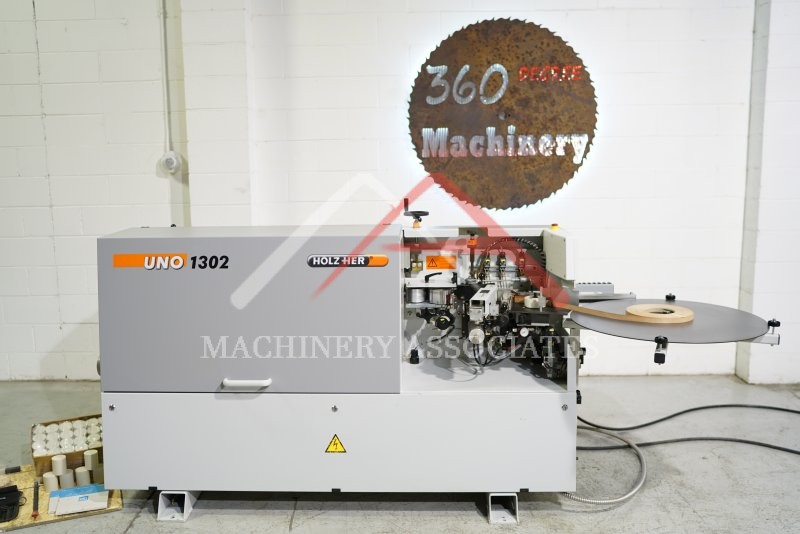

HOLZHER UNO 1302 SINGLE PHASE EDGEBANDER

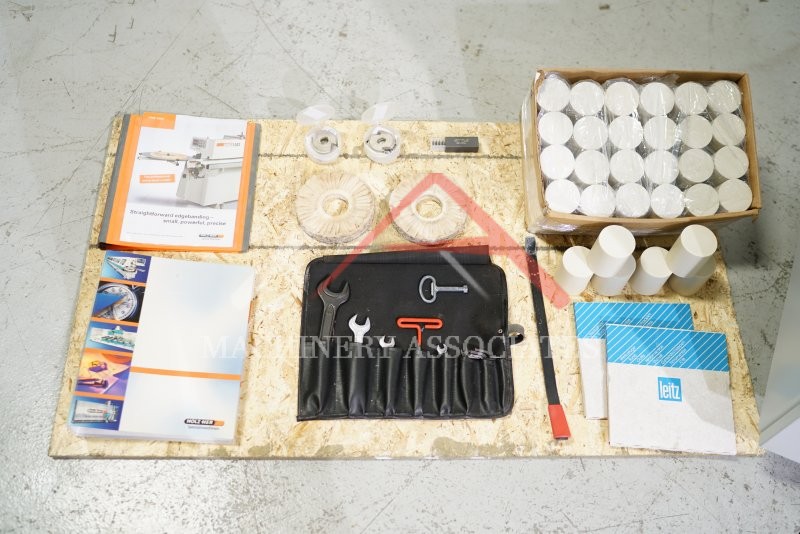

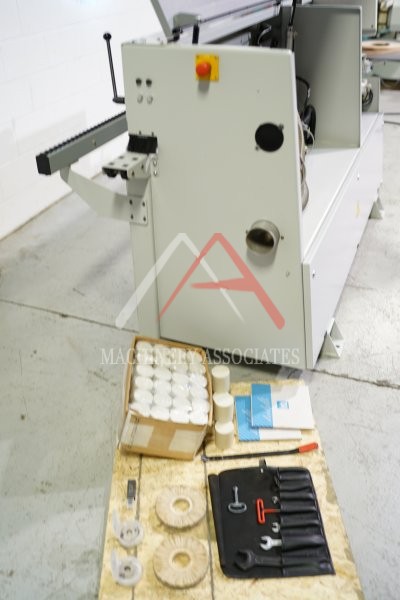

This is a clean single owner Holz-her UNO 1302 edgebander and yes it runs on 220V/Single Phase power. This fully functional machine has been fully cleaned and checked and is ready to work from the time you receive it. Includes a full set of manuals and tooling per picture.

• SpecsEdgeband Thickness  0.4mm to 3mmPanel Thickness  6mm to 45mmFeed Speed  10 meters/minuteDust Ports  1 x 4″ diameter

  1 x 3 1/4″ diameter

  Pneumatics  6 bar (87 psi)

  Voltage  230 volts, 3 phase

  Dimensions  120″ (L) x 36″ (W) x 51″ (H)

  Equipped with

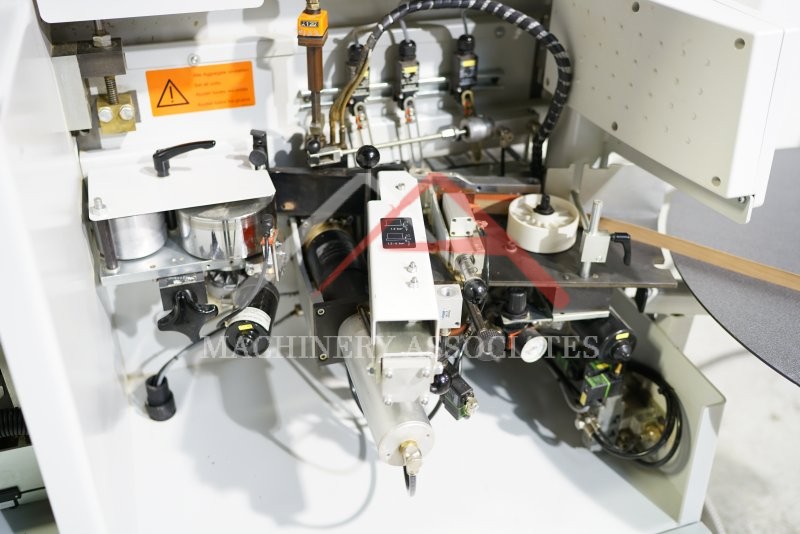

  Edging Feed Model 1806-1  for coils & strips

  Glue System Model 1906M  for cartridge system; EVA and PUR glues

  Pressure Unit 1912  one driven roller, one idler roller

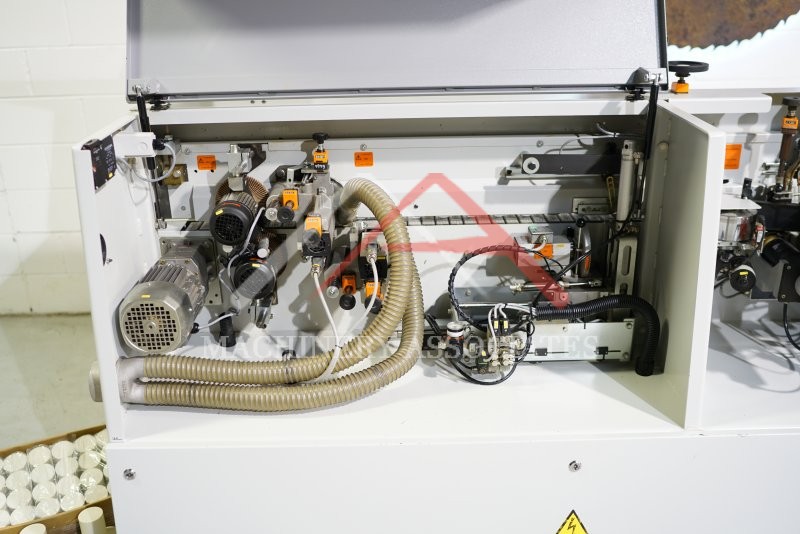

  Workstations

  End Trim Unit Model 1822  single high frequency motor, tilting 0° to 10°

  Top & Bottom Trim Unit Model 1825  two 0.6 kW motors

  Buffing Unit Model 1940  two independent motors
