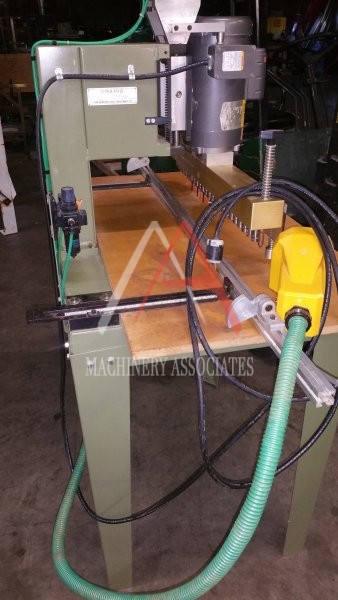

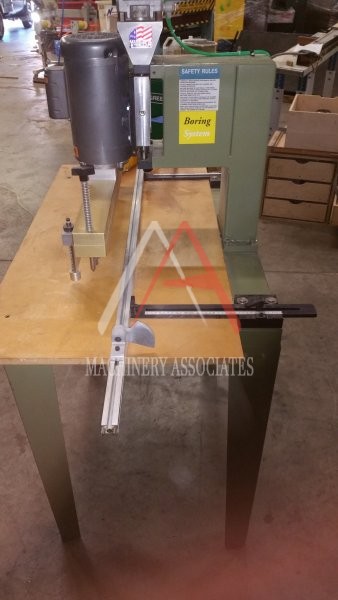

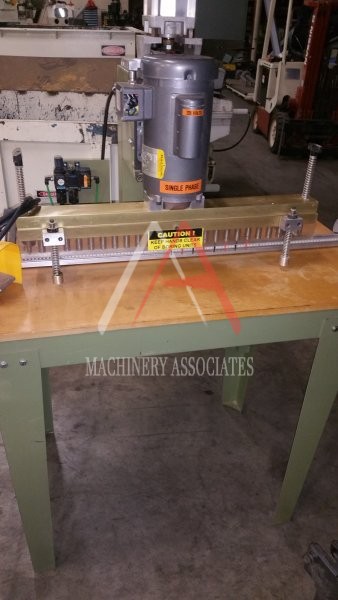

Conquest M-23 vertical Line Boring Machine

MA ID:	BL - 8107
Status:	Sold
Price:	$2,850.00
Category:	Boring - 32 mm
Manufacturer:	Conquest Industries
Model:	M-23
Condition:	Very Good
Electric:	220 Voltage 60 Cycle 1 Phase

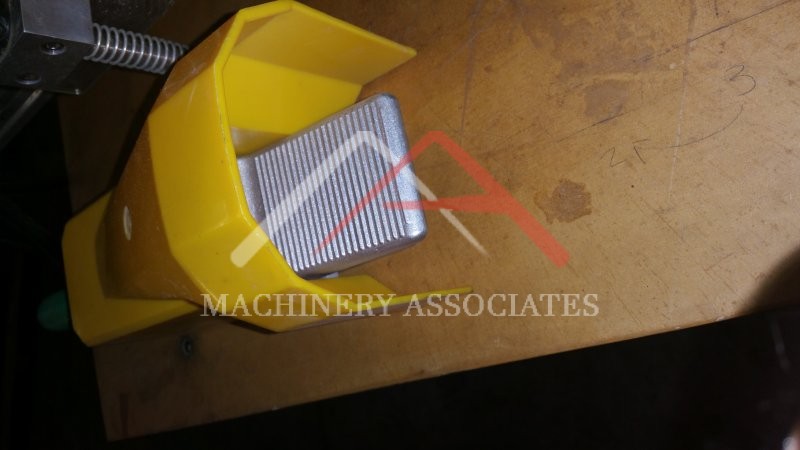

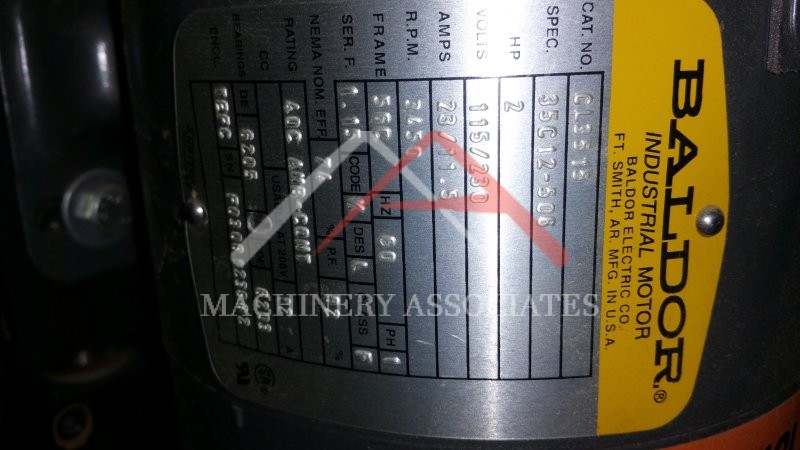

TEFC Baldor motor, 3,450 rpm, 2 hp - 230 volt (5.9 amps) 60 Hz Single Phase, turns off when pedal released Pneumatic Operation. 64" Fence Capacity. 23 spindle boring spindle head with steel heat treated helical gears. 32mm centers, distance between first & last drill = 27.7". 2 Spring Loaded Index Pins. 2 Spring Loaded Hold Downs. 2 Heavy Duty Cast Flip Stops. Heat Treated Steel Helical Gears. 12" Throat Opening (capacity to drill from edge of board). Accepts bits with 10mm shank, one flat side, 12 lefts & 11 rights
Shipping Footprint:	4 (length) x 5 (width) x 6 (height)
Weight:	500 lbs

All Information including Photos and Videos are supplied by a 3rd party Source.
Some photos may show tooling. Tooling is never included in the listing unless otherwise noted in the description.
Please confirm all data before committing to a purchase.
*Subject to credit approval. Additional programs available.
