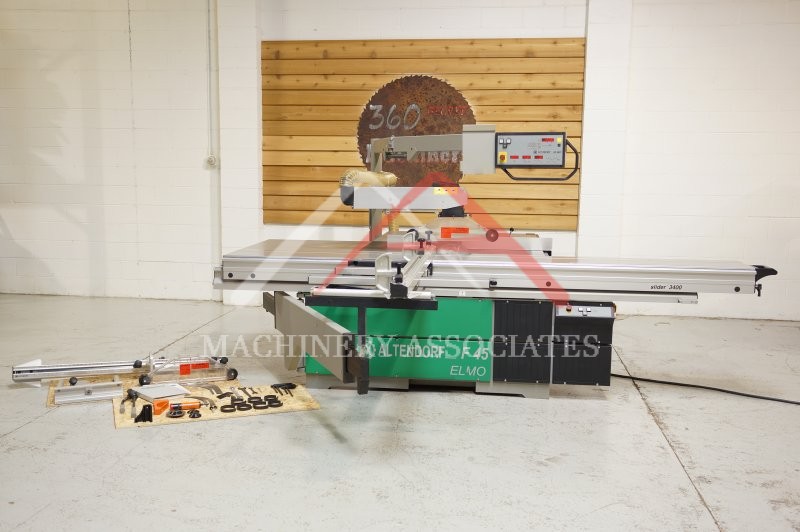

2000 ALTENDORF F45 ELMO 3400MM SLIDING TABLE SAW

MA ID:	PSS - 5601
Status:	Sold
Price:	$20,000.00
Category:	Panel Saw - Sliding
Manufacturer:	Altendorf
Model:	F45 ELMO
Year of Manufacture:	2000
Condition:	Excellent
Electric:	230 Voltage 3 Phase
2000 ALTENDORF F45 ELMO 3400MM SLIDING TABLE SAW $22,000 This is a really fine example of an Altendorf F45 Elmo. This one owner machine was pulled from a one man 1500 sq. ft. shop. As to be expected it was kept in top shape, has had limited use, and operates flawlessly. Excellent condition inside and out. Tilting of arbor 0 – 45 degrees Cutting length (with scoring) 3400 mm carriage/3305 mm (130″) Cutting width to rip fence 1300 mm (51″) max. Cutting depth maximum 90 degree cuts – 150 mm (5 1/2″)(with a 450mm blade) 45 degree cuts – 106 mm (4 11/64″) Main saw motor 5.5 kw (7.5 HP)230V/3 Phase Saw speed 3500/4000/5000/6000 RPM Main blade arbor diameter 30 mm Dado capacity 15 mm (19/32″) Scoring saw motor 0.75 kw (1 HP) 9000 RPM Scoring blade diameter 120 mm (4 ¾”) Scoring blade arbor diameter 15 mm Dust channel outlet (saw guard) 80 mm (3 1/8″) (machine base) 120 mm (4 ¾”) Machine weight 3400 mm carriage = 1285 kg (2827 lbs

All Information including Photos and Videos are supplied by a 3rd party Source.
Please confirm all data before committing to a purchase.
*Subject to credit approval. Additional programs available.
