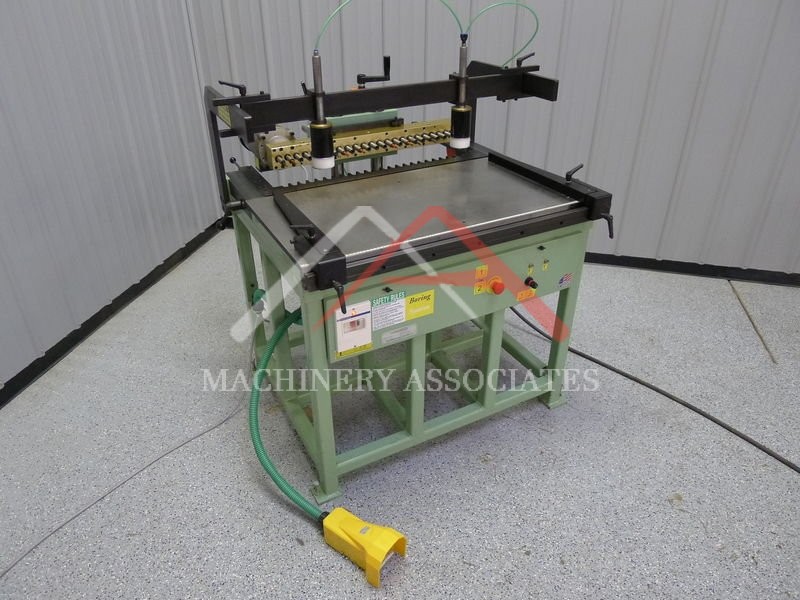

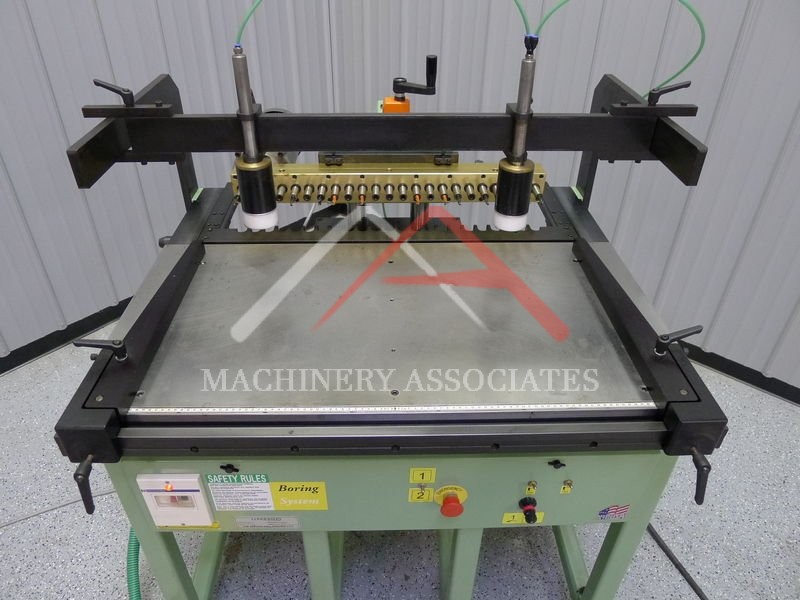

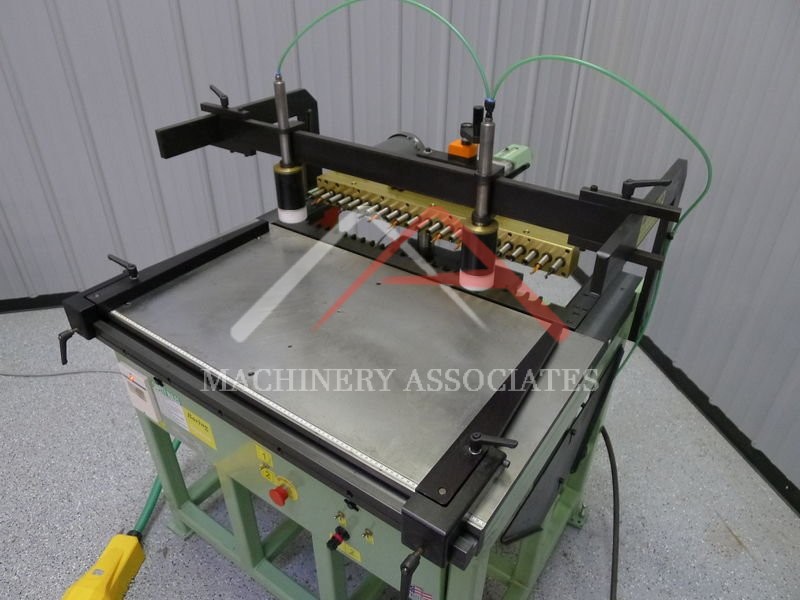

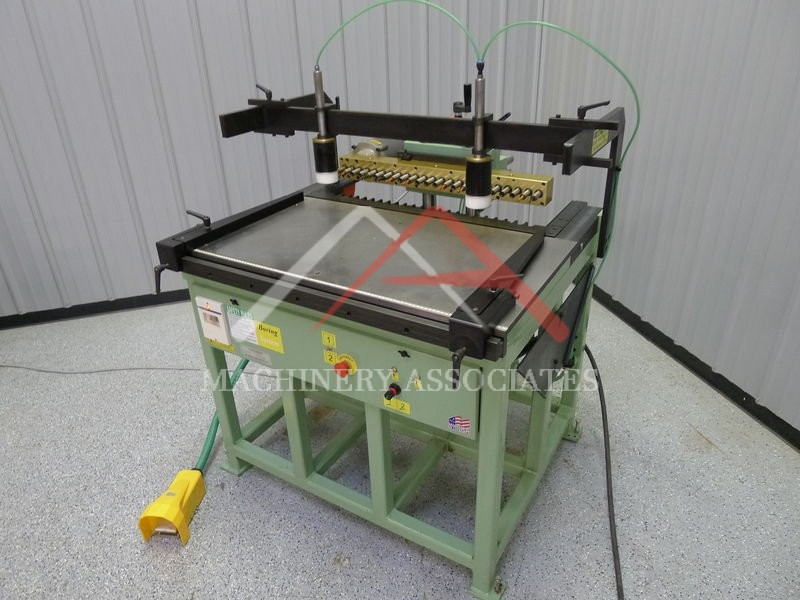

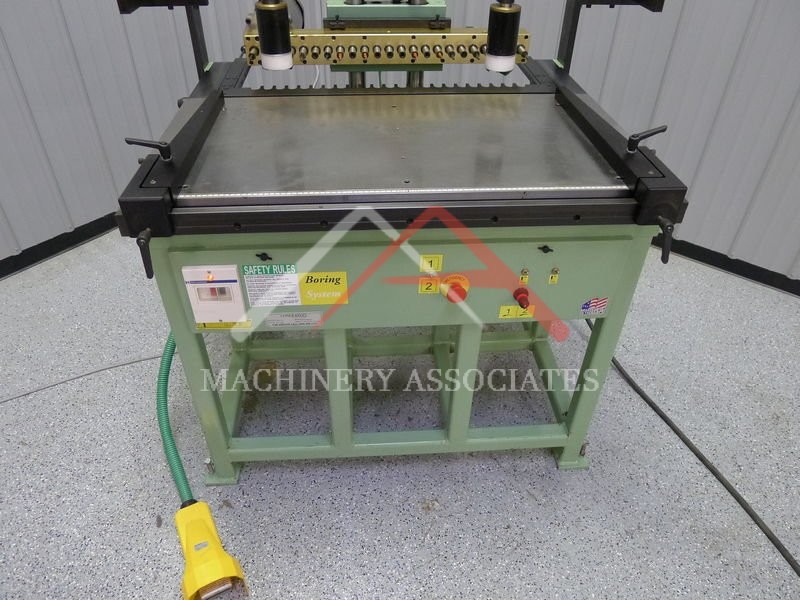

Conquest Construction Drill Line Boring Machine

MA ID: BL - 2769
Status: Sold
Price: $3,250.00
Category:

Boring - 32 mm

Manufacturer: Conquest Industries
Condition: Excellent

Extremly clean construction boring machine it perfect working order.


  • Pneumatic Drill Operation.
  • TEFC Baldor Motor(s).

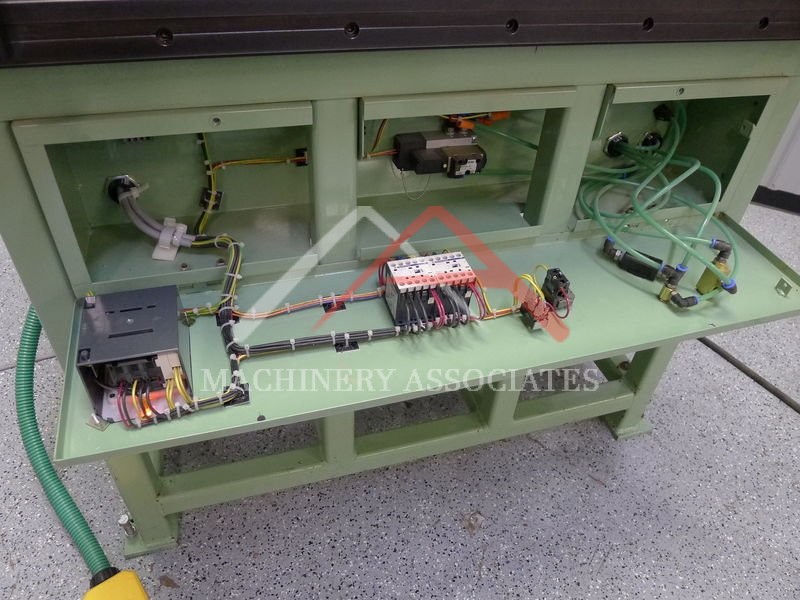

  • Telemechanique Control System.
  • Heat Treated Steel Helical Gears.
  • Dedicated Horizontal Configuration.
  • Quick Adjust Horizontal Fences For "Out Of Square Panels".
  • Individual Vertical Head Available (Eliminates Loss Of Accuracy Over Time Sometimes Experienced With Flip UP/Flip Down Machines.)

Standard Specificationsfor Construction Drilling Machine

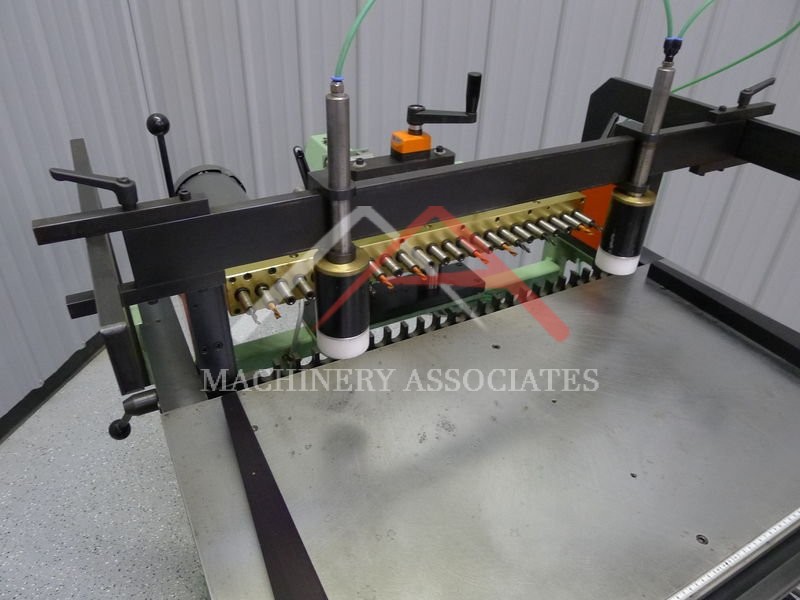

  • 2 Pneumatic hold downs.
  • Operating pressure of 80 - 100 psi.

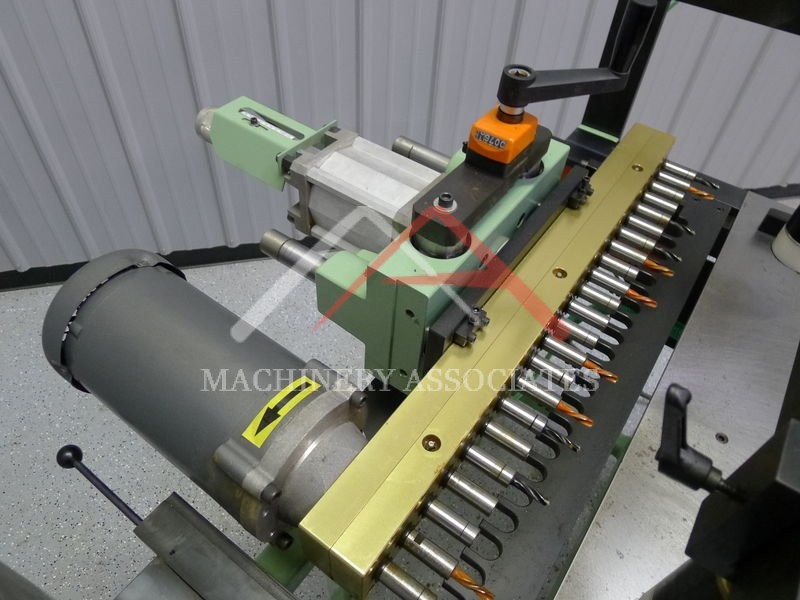

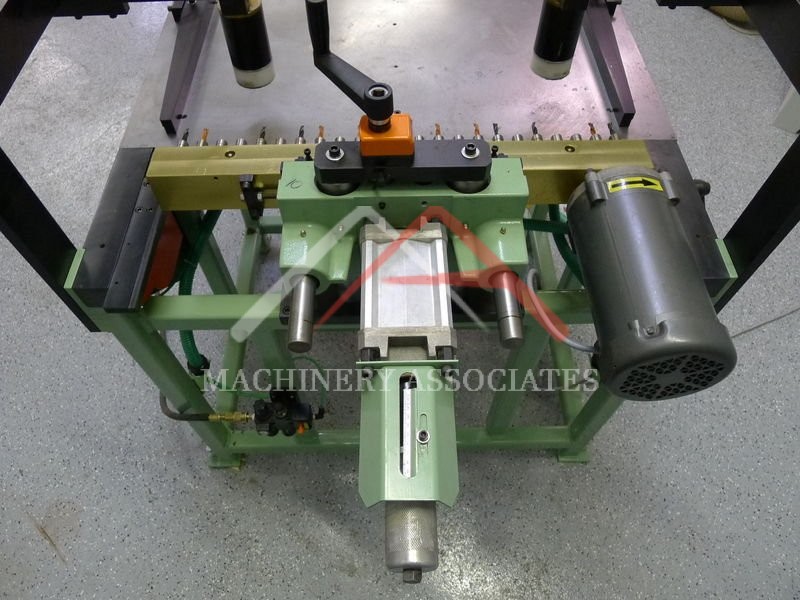

  • 23-spindle line boring head with steel heat treated helical gears.
  • 32mm centers, distance between first & last drill = 27.7".
  • TEFC Baldor motor(s), 3,450 rpm, 2 hp - 230 volt (5.9 amps) 60 Hz Single Phase, turns off when pedal released.
  • Accepts bits with 10mm shank, one flat side, 12 lefts & 11.
  • Machine weight = 1110 lbs & 1175 lbs crated.




All Information including Photos and Videos are supplied by a 3rd party Source.
Some photos may show tooling. Tooling is never included in the listing unless otherwise noted in the description.
Please confirm all data before committing to a purchase.
*Subject to credit approval. Additional programs available.
Click Herefor More Info or call Product Manager Gary Carney 877-622-4657 x101
Sold
Conquest Construction Drill Line Boring Machine
Conquest Construction Drill Line Boring Machine
Conquest Construction Drill Line Boring Machine
Conquest Construction Drill Line Boring Machine
Conquest Construction Drill Line Boring Machine
Conquest Construction Drill Line Boring Machine
Conquest Construction Drill Line Boring Machine
Conquest Construction Drill Line Boring Machine
Conquest Construction Drill Line Boring Machine

Conquest Construction Drill Line Boring Machine


Location: Midwest Midwest
