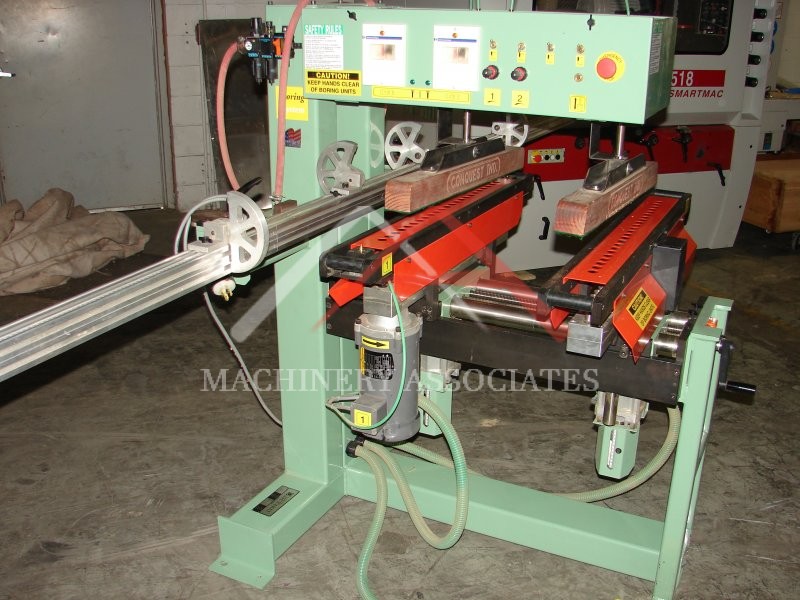

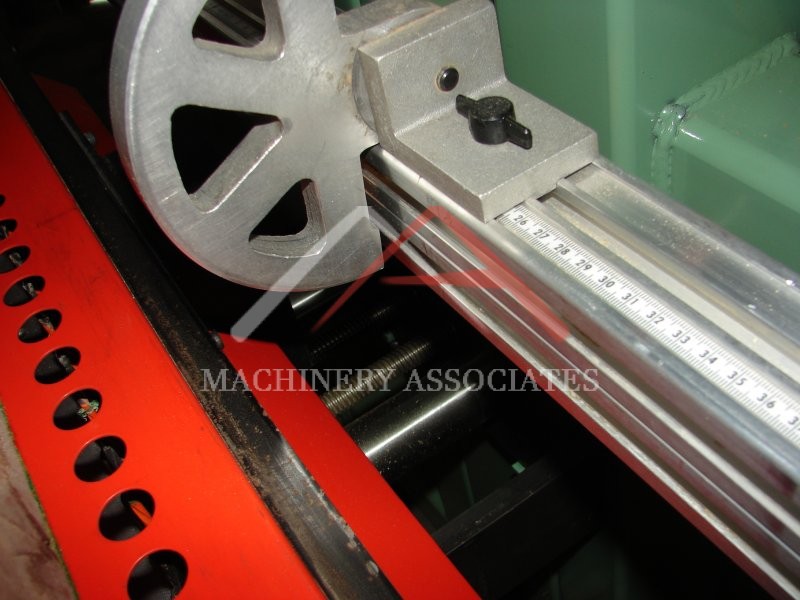

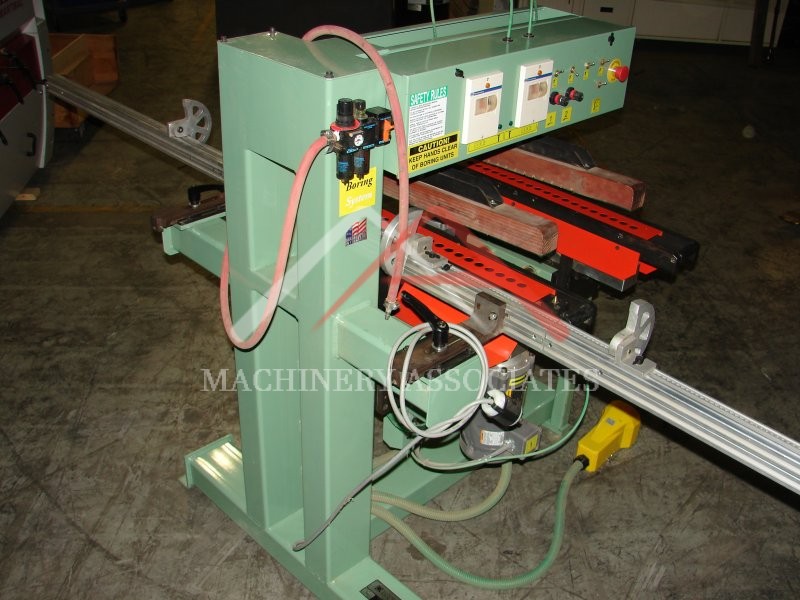

Conquest Double Line Boring Machine (2008)

MA ID:	BL - 2652
Status:	Sold
Price:	Call for Price
Category:	Boring - 32 mm
Manufacturer:	Conquest Industries
Model:	2-46
Year of Manufacture:	2008
Condition:	Very Good
Pneumatic Operation. 132" Fence Capacity. 2 Pneumatic Index Pins. 2 Pneumatic Hold Downs. 4 Heavy Duty Cast Flip Stops. Telemechanique Control System. Heat Treated Steel Helical Gears. Available through brake to eliminate breakout when through boring. 2 Individually Moveable 23 Spindle Heads with TEFC BALDOR Motors For High Production Double Row Line Boring. Standard Specifications of Line Boring Machine Working table height = 37.5" Operating pressure of 80 - 100 psi. Left & right pneumatic index pins. 2 individually moveable pneumatic hold downs. 132" fence capacity with 4 flip stops. (Optional 44" extensions.) 32mm centers, distance between first & last drill = 27.7". 2 TEFC Baldor motors, 3,450 rpm, 2 hp - 230 volt (5.8 amps) 60 Hz Three Phase, turns off when pedal released on line boring machine. Each head accepts bits with 10mm shank, one flat side, 12 lefts & 11 rights, maximum drilling depth of 60MM.
Shipping Footprint:	4 (length) x 5 (width) x 72 (height)
Weight:	1200 lbs

All Information including Photos and Videos are supplied by a 3rd party Source.
Some photos may show tooling. Tooling is never included in the listing unless otherwise noted in the description.
Please confirm all data before committing to a purchase.
*Subject to credit approval. Additional programs available.
