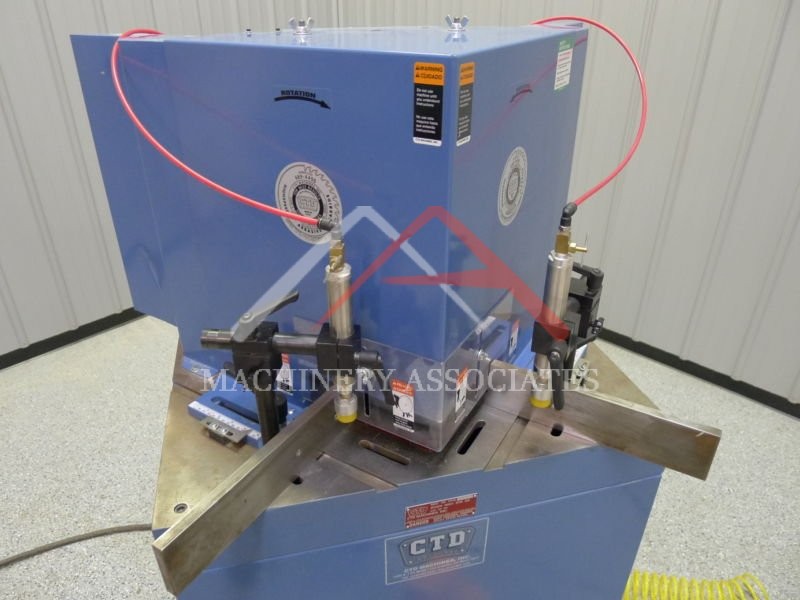

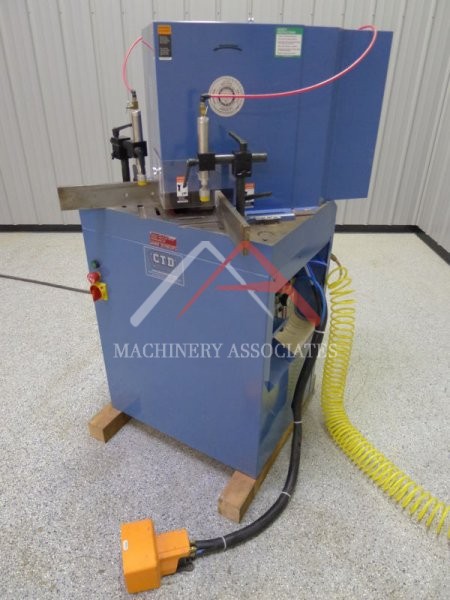

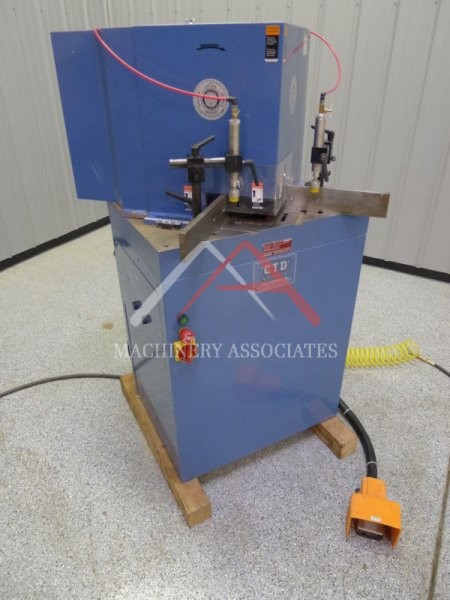

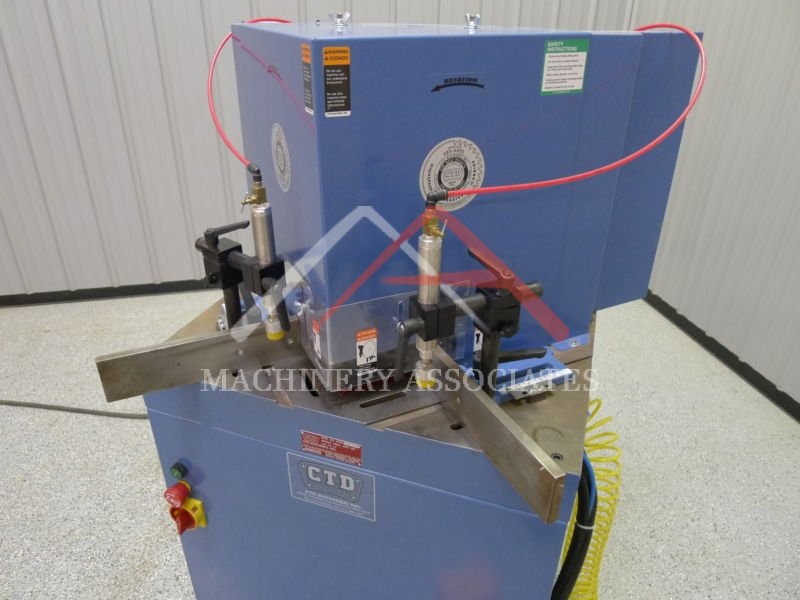

2007 CTD N80 Notching Double Miter Saw Toe Kick Saw

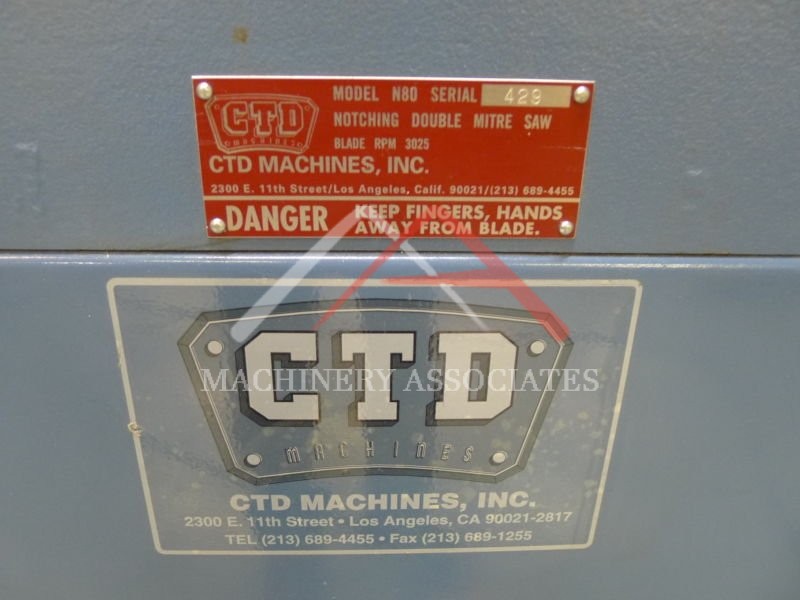

2007 CTD Model N80 13" Vertical Frame & Notching Saw

Factory fresh and ready for service. CLEAN CLEAN CLEAN!

Blade Capacity: 13" OD (330mm)

Arbor: 1" (25mm) with 3" (76mm) saw collars; mounted on
preloaded and sealed bearings; 2-belt drive; 3450 RPM of spindle.

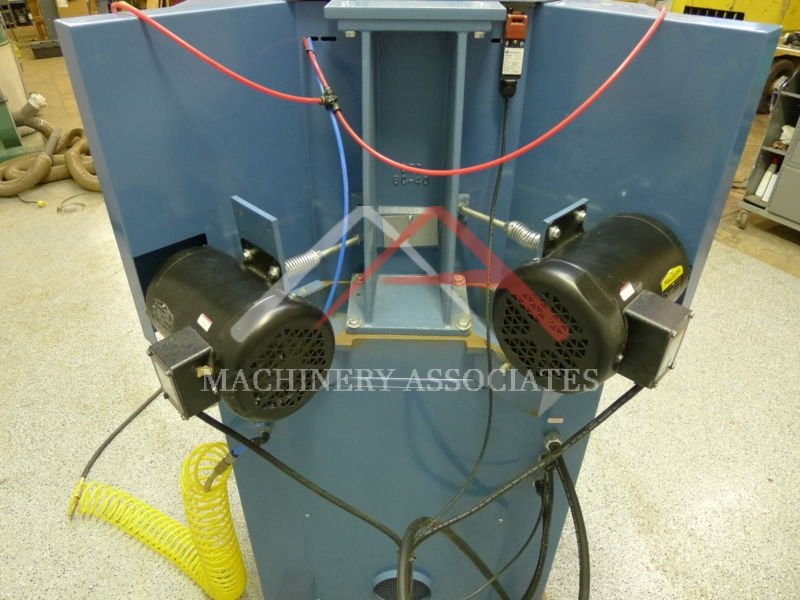

Motors & Voltages: Two, 2 H.P. 3 Phase 230/460 Volt Totally
Enclosed Fan Cooled Motors, 60 Hz, 3450 RPM with Dual
Magnetic Starter; 3 H.P. Motors available.

Table Base: Precision machined and ground iron castings
with milled keyways to guide fences; allows for easy and
accurate dimensional changes.

Floor Stand: Heavy gage steel; stand is completely enclosed
with 6" (152mm) dust collector outlet and scrap chute;
1200 CFM required.

Actuation: Air operated by foot valve with cover.

Air Pressure & Consumption: 3 CFM at 80 PSI
(.09 cubic meters/minute at 5.6 kg/cm2) based on
10 strokes per minute; includes air
filter/ regulator/lubricator with auto drain.

Size & Weight: 43" (109cm) Wide x 38" (97cm) front
to back x 58" (147cm) High; Weight 750 lbs. (340kg).

Production Rate: Up to 15 strokes per minute.

Cutting Capacity: Staggered Saw Blades/ Toe-Notch
Configuration; 4-1/2" (114mm) x 4-1/2" (114mm) Deep
x 3" (76mm) High

Mitre Cutting/Staggered Saw Blades; 3-1/2" (89mm)
Wide x 3" (76mm) High

Mitre Configuration/Non-Staggered Saw Blades; 3-3/8"
(86mm) Wide x 3" (76mm) High; up to 5" (127mm) High
