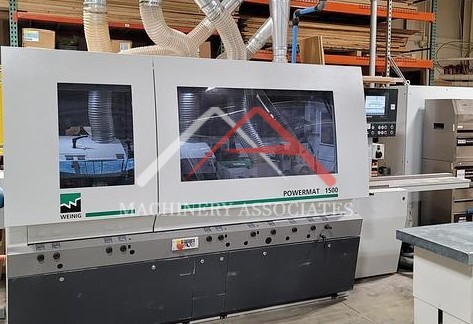

Weing Powermat 1500 Powermat System Liquidation

Specifications:

2021 Weinig R960 Knife Grinder

2021 Weinig Opticontrol Digital Measuring Stand

Includes:

Misc parts & accessories

Powerlock Heads and Powerlock Spiral Heads

Fully cnc controlled(axial and radial)

VFD controlled motors, and all are Oowerlock except for the first bottom head. It is also a 12,000rpm machine on heads 2-6, 8000rpm on the first bottom.

Weinig R960 Powerlock:

An entire knife making cell consisting of a Weinig R 960 powerlock (with options for processing carbide and other things), Weinig Opticontrol Digital tool measuring system with tool room link.

FLA 214 at 460V

Main fuse 250amps

Total connected load 128KW

Remote Lock out / Tag out

Switch cabinet and operating panel separate from machine

Cooling device for switch cabinet

Straightening table, 2 m long

Automatic Waxilit pump

Working width 230 mm x 160mm High

Feed roller in front of 1st bottom spindle pneumatic "up-down"

FEED SYSTEM: Motor 7 KW (9.5 HP)/ 5 - 40 m/min

CNC-controlled adjustment and positioning of feed up/down

Lateral pressure roller at the infeed table, spring-mounted

FIRST BOTTOM: Motor 11 KW (15 HP) / 1 13/16" / 8000 rpm

WITHOUT rebate facility and WITHOUT rebate cutter / Digital manual radial adjustment

RIGHT VERT: Motor 11 KW (15 HP) / PLock / 4000- 12000rpm

Pressure roller from above, pivoting, spring loaded

Axial / Radial CNC-controlled adjustment and positioning

LEFT VERT: Motor 11 KW (15 HP) / PLock / 4000- 12000rpm

Vario hood (2 axes)

Pressure shoe in front, 2 lateral pressure rollers, spring-mounted

150 mm pendulum arbor extension

Pressure roller from above, pivoting, spring loaded

Axial / Radial CNC-controlled adjustment and positioning

FIRST TOP: Motor 22 KW (30 HP) / PowerLock / 4000- 12000 rpm

Vario Hood (2 axes)

Axial / Radial CNC-controlled adjustment and positioning

Prepared for cassette system

SECOND TOP: Motor 30 KW (40 HP) / PLock / 4000- 12000rpm

Vario hood (2 axes)

Axial / Radial CNC-controlled adjustment and positioning

Prepared for cassette system

LAST BOTTOM: Motor 22 KW (30 HP) / PLock / 4000- 12000 rpm

Axial / Radial CNC-controlled adjustment and positioning                                                                                                                                                                                                                                      2021 Weinig Opticontrol Digital Measuring Stand                                  Weinig "Opticontrol" Optical Comparator - Power Lock
Weinig OCMS measuring stand with a working width of 300 mm/11.8".
The allowable tool dimension of 3" to 11-3/4" head diameter. The measuring stand allows for electronic measuring and indicating of cutter head dimensions with electronic digital readouts; visually establishing the tool measurement, no setting errors, no expensive CNC control.
Magnifier screen viewer with 20:1 magnification; the cutterhead is placed in Powerlock tool post, all the operator does is view the scope and moves the measuring carriage via precision dialing left to right.
Measured values (radial) and (axial), tool dimensions both minimum and maximum are displayed.weinig

2021 Weinig R960 Powerlock Knife Grinder

Max. tool width (standard)   240 mm

 in conjunction with PowerLock (optional) 322 / 360 mm

Min./max. tool diameter  100 / 300 mm

Max. tool weight   80 kg

Mounting arbor diameter  by choice

Clearance angle   radial at knife back  10  30°

 lateral in manual operation  0  20°

 straight cutter heads   60°

Min./max. grinding wheel diameter  150 / 225 mm

Grinder spindle drive motor  1.1 kW (1.5 HP)

Grinding spindle speed (standard)  1,700; 2,000; 2,400; 3,000

rpm

 frequency controlled (optional)  1,500  3,000 rpm

PowerLock system   optional

Carbide knife grinding  optional

Straight cutter head grinding (automatic)  optional

Total connected load    2 kW (2.7 HP)
